NZXT C750 Gold - 750 Watt - 80 PLUS Gold

NZXT C750 Gold – 750 Watt – 80 PLUS Gold

EAN: 5060301697526SKU: PA-7G1BB-EUCategorie: Merk:

€ 119,95€ 99,13 incl. btwexcl. btw

Op nabestelling · levertijd op aanvraag

Vaak samen gekocht

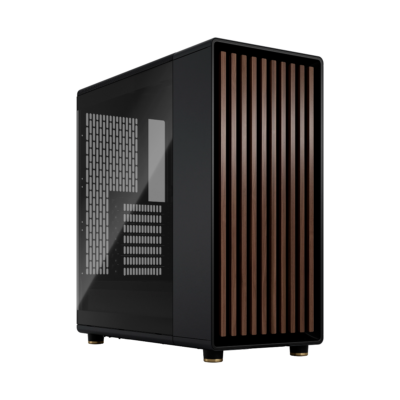

Fractal Design North - Charcoal Black TGDOp nabestelling · levertijd op aanvraag
€ 159,50€ 131,82 incl. btwexcl. btw

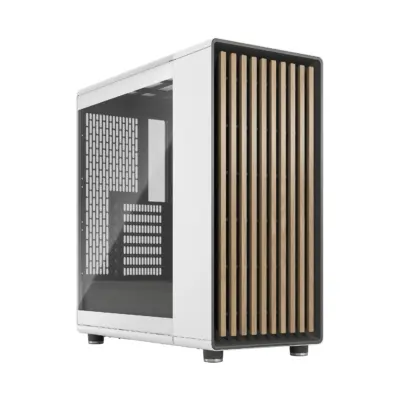

Fractal Design North - Chalk White TGCOp nabestelling · levertijd op aanvraag
€ 158,50€ 130,99 incl. btwexcl. btw

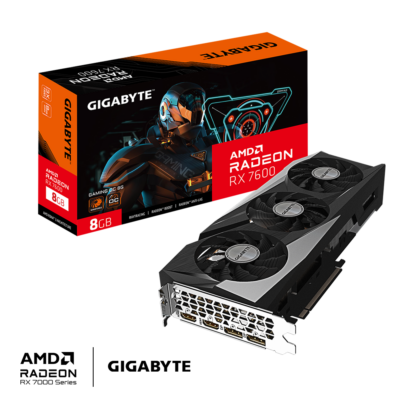

Gigabyte Radeon RX 7600 GAMING OC 8GOp nabestelling · levertijd op aanvraag
€ 345,00€ 285,12 incl. btwexcl. btw

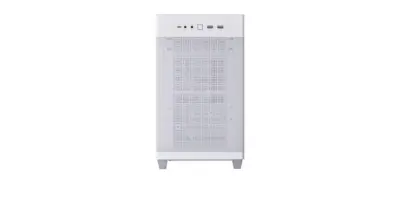

ASUS Prime AP201 MicroATX Mini TowerOp nabestelling · levertijd op aanvraag
€ 95,00€ 78,51 incl. btwexcl. btw

NZXT C750 Gold – Voeding ( intern ) – ATX12V / EPS12V – 750 Watt – actieve PFC – 80 PLUS Gold

Details

This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.

  • Modular design lets builders use only the cables they need
  • The sleeved main cables resist heat damage as well as fraying
  • Fits any case conforming to the ATX standard
  • Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
  • Zero RPM Fan mode silences the fan under low-load conditions
  • Dynamic 135mm fluid-dynamic bearing fan
  • 10-year warranty

Inside the Box

  • C750 Power Supply1

  • 24-Pin ATX Power Cable1

  • 4+4-Pin CPU Power Cables2

  • 6+2-pin PCIe Power Cable3

  • SATA Cables2

  • Peripherals Cables2

  • 6-32 Screws4

  • AC Power Cord1

Tech Specs

OUTPUT CONNECTORS

  • 24-pin ATX power:1
  • 4+4-pin CPU power:2
  • 6+2-pin PCIe power:6
  • SATA power:6
  • Peripherals:6

CABLE SPECS

  • 24-pin ATX power:600 mm, Nylon sleeving
  • 4+4-pin CPU power:700 mm, Nylon sleeving
  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
  • SATA power:500 + 150 mm
  • Peripherals:500 + 150 mm

AC INPUT RATING

  • 100 – 240Vac:10A-5A 50Hz-60Hz

DC OUTPUT RATING

  • +3.3V and +5V:22A (120W)
  • +12V:62.5A (750W)
  • -12V:0.3A (3.6W)
  • 5Vsb:3A (15W)
  • Total:750W

OPERATION

  • PF Correction:Active @0.96
  • MTBF:100,000 hours
  • Temperature:0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

ENERGY EFFICIENCY

  • Rating:80 Plus Gold
  • 20% loading:89.20% @115Vac
  • 50% loading:90.80% @115Vac
  • 100% loading:87.73% @115Vac

FAN SPECS

  • Dimensions:135 x 135 x 25 mm
  • Speed:0-2300 ± 10% RPM
  • Airflow:93.02 CFM (Tpy.)
  • Noise:44.5 dBA max
  • Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

  • Dimensions:150 x 150 x 86 mm
  • Material(s):Steel, PCB and plastic
  • Compliance Standard:ATX12V v2.52 / EPS12V v2.92
  • Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
  • Warranty:10 years
  • Model Number:PA-7G1BB
  • UPC (EU):815671017215
  • EAN (EU):5060301697526

Downloads

DOCUMENTATION

Download English Manual pdf

English Manual

3.7 MB(pdf)

Gewicht 2,91 kg
Afmetingen 15 × 15 × 8,6 cm
80 PLUS-Certificatie

Modulair

Stroomcapaciteit
