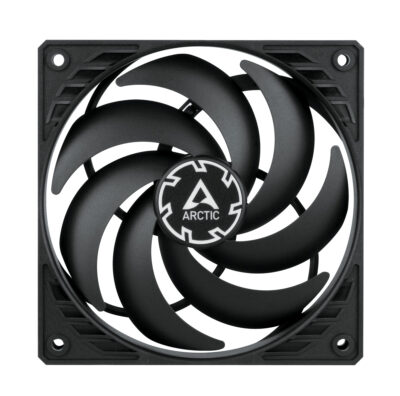

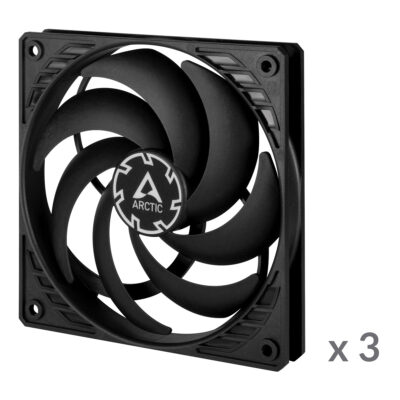

P12 Slim PWM PST
Pressure-optimised 120 mm PWM Fan with integrated Y-cable
Optimised for High Static Pressure
Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Quietness, Minimum Vibration
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
300 to 2100 RPM Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST’s fan speed can be controlled in sync with other fans. ARCTIC’s PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series.
High Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
The P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
TECHNICAL SPECIFICATIONS & MANUAL
- Width: 53 mm
- Height: 138 mm
- Length: 123 mm
- Weight: 0.345 kg
