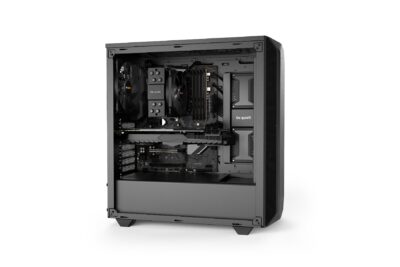

PURE BASE 500

Black

OUTSTANDING PRICE-PERFORMANCE RATIO

be quiet! Pure Base 500 Black combines customizable and silence features with a compact and sophisticated design. It is the perfect case for all who value compactness and highly functional features.

• Exchangeable top cover for silent or high-performance systems
• Two preinstalled Pure Wings 2 140mm fans
• Insulation mats on the front, sides and the regular top cover
• Water cooling ready for radiators of up to 360mm
• Generous space for high-end graphics cards and large coolers
• Various options to install up to five SSDs in total
• PSU shroud and smart cable routing options provide a neat interior
• Easy PSU installation from the back of the case

REGULAR TOP COVER

Perfect for silent air-cooled systems

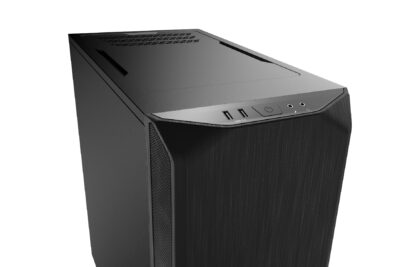

The regular top cover perfectly rounds off the design of the Pure Base 500. An insulation mat attached underneath ensures a silent operation. It is the perfect choice for air-cooled systems and regular, silent PC configurations. Strong magnets make sure the top covers fits firmly.

HIGH-PERFORMANCE TOP COVER

Maximum airflow for water-cooled configurations

For all who strive for maximum performance and especially with water-cooled systems, the extremely air-permeable top cover is the right choice. It is made of light meshed fabrics, ensuring the highest airflow possible.

TWO PREINSTALLED PURE WINGS 2

Whisper-quiet operation

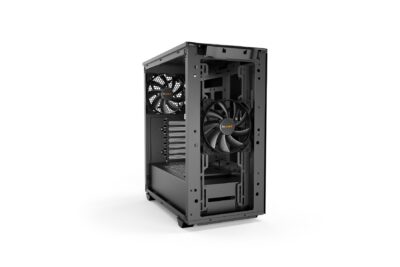

Two preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the front and rear fans are both 140mm models, resulting in very quiet operation. Up to three 140mm fans can be installed in addition.

NOISE DAMPENING

Achieving great silence and stability

The front, sides and regular top cover are equipped with insulation mats that result in great stability and improved noise dampening capabilities. The dust filters on the front and bottom are easy to remove for cleaning.

SOPHISTICATED DESIGN

Generous space for high-end hardware

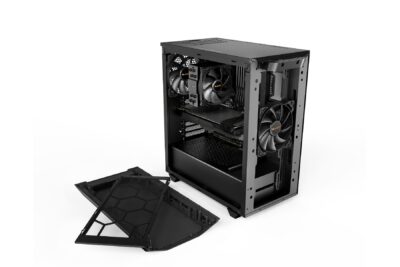

The Pure Base 500 provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator up to 240mm.

FUNCTIONAL CABLE ROUTING

And great cable routing possibilities

Pure Base 500 offers various possibilities for installing up to five SSDs in total. To hide any unwanted cables, the case offers excellent cable routing options.

FUNCTIONAL PSU SHROUD

Offering a neat interior

The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.

General data

Model	Pure Base 500 Black
PSU form factor	ATX PS/2
Motherboard compatibility	ATX / M-ATX / Mini-ITX

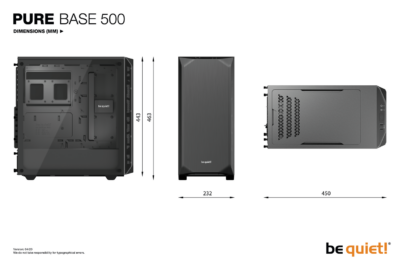

Case size excl. stands (L x W x H), (mm)	450 x 232 x 443
Installation of motherboards with backplate	✓
Case size incl. stands (L x W x H), (mm)	450 x 232 x 463
Dimensions side panel window (L x W), (mm)	400 x 431
Color option	Black
Weight (kg)	6.95
USB 2.0	–
USB 3.2 Gen. 1	2
USB 3.2 Gen. 2 Type C	–
HD Audio I/O	Mic + Audio
Expansion slots	7
Fan mounting locations	6
Qi charger / Quick Charging Option	–

Material

Top cover	ABS
Side panel	Steel
Side panel window	–
Front panel	ABS
Stands	ABS

Drive bay capacity

5.25 bays	–
3.5 slots (max.)	2
3.5 slots (scope of delivery)	2
2.5 slots (max.)	5
2.5 slots (scope of delivery)	5

Pre-installed fans

Fan @ top	–
Fan @ front	1x Pure Wings 2 140mm
Fan @ rear	1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm)	Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm)	900
Noise level @ 100% PWM / 12V (dB(A))	17.1
Airflow @ 100% PWM / 12V (CFM / m3/h)	55.8 / 94.8
Air Pressure @ 100% PWM / 12V (mm H2O)	0.6
Voltage range (V DC)	12
Input power (W)	1.08
Input current (A)	0.09
Connector	3-Pin
Lifespan (h / 25°C)	80,000
Fan controller	–

Optional fan installation

Front (mm)	3x 120 / 1x 140
Top (mm)	2x 120 / 2x 140
Bottom (mm)	–
Side panel (mm)	–
PSU shroud	–

Optional radiator installation

Front (mm)	120 / 140 / 240 / 280 / 360
Top (mm)	120 / 240
Bottom (mm)	–
Rear (mm)	120 / 140

Cooling

Max.construction height of CPU cooler unit (mm)	190
Airflow channel	Front / Top / Rear

Lighting

RGB LED illumination	–
LEDs synchronizable with RGB controller/motherboard	–
Expandable RGB controller	–

PSU compatibility

Maximum dimensions excl. bottom fan (mm)	258
Maximum dimensions incl. bottom fan (mm)	225

Graphics card

HDD cage (in height of graphics card) installed (mm)	369
HDD cage (in height of graphics card) removed (mm)	369

Insulation and damping

Top panel insulation mats	✓
Front panel insulation mats	✓
Side panel insulation mats	✓
Anti-vibration decoupled HDD	✓
Anti-vibration decoupled fan	–
Anti-vibration decoupled PSU	✓
Anti-vibration decoupled motherboard-tray	–

Removeable dust filters

Front	–
Bottom	1
Side panel	–

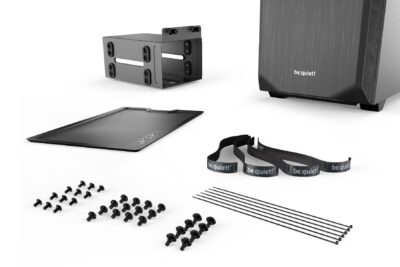

Accessories

Screw set (Drives/Motherboard)	✓
Rubber rail (pcs.)	–
Standoff (pcs.)	–
LCS bracket (pcs).	–
HDD slot cover (pcs.)	–
Upper fan bracket (pcs.)	–
HDD panel rubber grommet (pcs.)	–
SSD bracket for PSU shroud	–
LED strips (pcs.)	–
Cable ties (pcs.)	6 / 4 (Velcro)

Service

Warranty (Years)	3
International hotline / free of charge	✓ / DE, FR

Logistics data, RRP

Article number	BG034
EAN code	4260052187821
Certifications	CE / RoHS
Dimensions, package (L x W x H), (mm)	510 x 285 x 494
Gross weight, package (kg)	7.92
Pieces per packaging unit	1
RRP (€)	72.90
