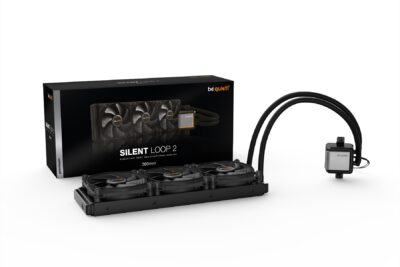

SILENT LOOP 2 360mm

SIGNIFICANT QUIET AND EXCEPTIONAL COOLING

Silent Loop 2 360mm is the immensely high-performance and whisper-quiet all-in-one water cooling unit for demanding systems with heavily overclocked CPUs.

• Dampened and adjustable pump with six-pole motor for very silent and immensely high-performance operation
• Powerful three-chamber pump design significantly reduces turbulences and noise
• Silent Wings 3 PWM high-speed fans for high performance and whisper-quiet operation
• Cold plate with high density stack of fins for the highest cooling characteristics
• ARGB LEDs for lots of illumination options and great visual effects
• Easy-to-access refill port with coolant bottle included, ensuring a long lifespan
• Three-year manufacturer’s warranty

SUPERIOR PUMP DESIGN

Whisper-quiet operation

Powerful pump with innovative three-chamber design ensures the very high-performance Silent Loop 2 360mm is whisper-quiet at the same time. The second of its three chambers offers enough space for the coolant to spread out and thus reduces turbulences before it leaves the pump unit. In combination with the 6-pole three-phase motor this results in a smooth and as a consequence silent operation.

WHISPER-QUIET OPERATION

Thanks to effective pump dampening

The massive dampening of the pump absorbs vibrations and as a consequence minimizes the resonances in the pump housing. This leads to significantly reduced noise and is key to the famously whisper-quiet be quiet! operation.

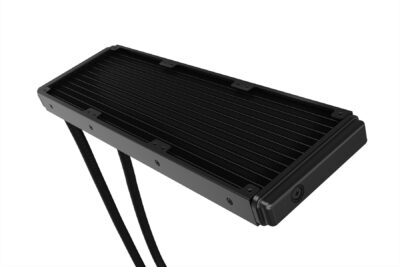

IMMENSELY HIGH COOLING PERFORMANCE

For low CPU temperatures

Silent Loop 2 360mm as an all-in-one water cooling unit provides enough cooling performance even for demanding applications when the CPU is pushed to its limit. The pump, radiator and fans are all optimized to work in perfect technical symbiosis.

BIG COLDPLATE

For all consumer platforms

Having a high density stack of fins on one side and a nickel coated plate on the other, the cold plate provides maximum cooling performance for the AiO. This makes Silent Loop 2 360mm the perfect water-cooling unit, especially for high-end processors and those with large surfaces. sTRX4 mounting is available separately..

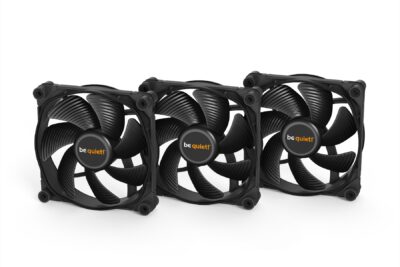

SILENT WINGS 3 FANS

Impressive ratio of performance to noise

The Silent Wings 3 120mm PWM high-speed fan features seven airflow-optimized fan blades, a 6-pole motor for less vibration and a durable fluid-dynamic bearing. The fan frame is equipped with funnel-shaped air inlets for extremely high air pressure, which makes the fan the perfect choice for radiators.

IMPRESSIVE ILLUMINATION

Lots of options and great visual effects

ARGB LEDs offer multiple colors and modes to individualize the look of the Silent Loop 2 360mm. The illumination can be synced with the ARGB adjustments of the motherboard. You can optionally use the wired ARGB remote controller to switch between modes and colors. The white illumination of be quiet! sign can be turned on and off for an external appearance of any taste.

EASY TO REFILL

Simplified refilling process for a long lifespan

An easy-to-access refill port makes for convenient handling, safe refilling and comfortable maintenance. The coolant bottle included ensures a long lifespan.

General data

Model	Silent Loop 2 360mm
Dimensions radiator, incl. fan (H x W x D), (mm)	394 x 120 x 52
Total weight (kg)	1.33
Socket compatibility	Intel: 1150 / 1151 / 1155 / 1200 / 2011(-3) Square ILM / 2066; AMD: AM4 / AM3(+) / sTRX4,TR4(optional, mounting-kit (BZ008))
Noise level (dB(A)) @ 25 % / 50% /100% rpm	17.7 / 23.9 / 39.8
Fan model, number	3x Silent Wings 3 120mm PWM high-speed
Pump speed (rpm)	2800
Pump adjustable	9V – 12V
Pump connector	3-pin
RGB connector	3-pin 5V Adressable
Tube length (mm)	400
Refill port	✓
