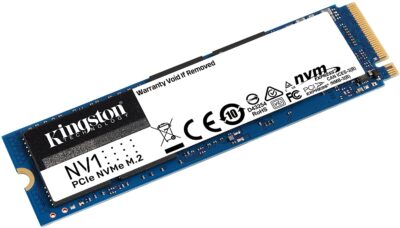

NV1 NVMe PCIe SSDEfficient performance for thinner notebooks and systems
Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write1 speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.
Available in capacities from 250GB – 2TB2 to give you all the space you need for applications, documents, photos, videos, and more.
NVMe PCIe SSD Performance
Ideal for laptops & small form factor PCs
Capacities up to 2TB
NVMe PCIe Performance
Offers read/write speeds up to 2,100/1,700MB/s1

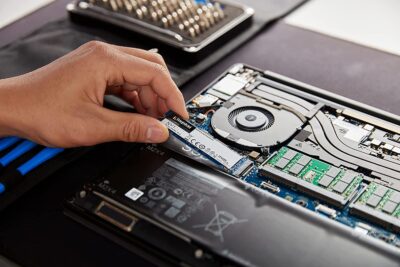

Ideal for systems with limited space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.
Available in a range of capacities up to 2TB2 to meet your data storage requirements.
|Form Factor||M.2 2280|
|Interface||NVMe™ PCIe Gen 3.0 x 4 Lanes|
|Capacities2||250GB, 500GB, 1TB, 2TB|
|Sequential Read/Write1||250GB – 2100/1100MB/s
500GB, 1TB, 2TB – 2100/1700MB/s
|Endurance3||250GB – 60TBW
500GB – 120TBW
1000GB – 240TBW
2000GB – 480TBW
|Power Consumption||250GB: 5mW Idle / 85.5mW Avg / 0.99W (MAX) Read / 1.5W (MAX) Write
500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
|Dimensions||22mm x 80mm x 2.1mm|
|Weight||7g (All capacities)|
|Vibration Operating||2.17G (7-800 Hz)|
|Vibration Non-operating||20G (20-1000Hz)|
|Warranty/Support4||Limited 3-year warranty with free technical support|
