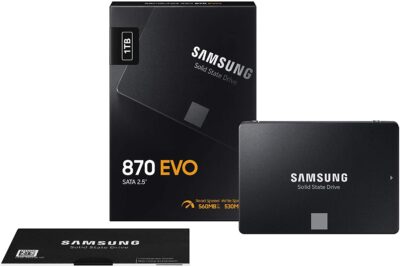

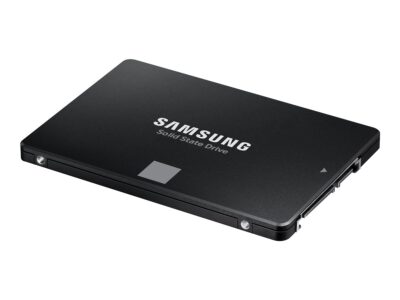

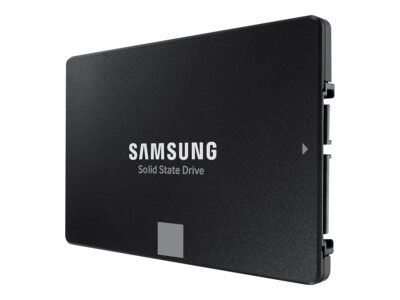

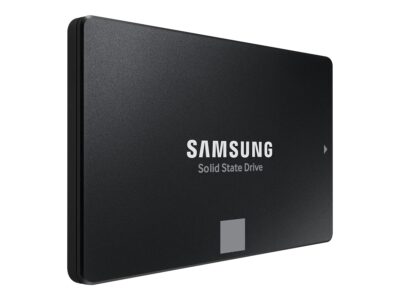

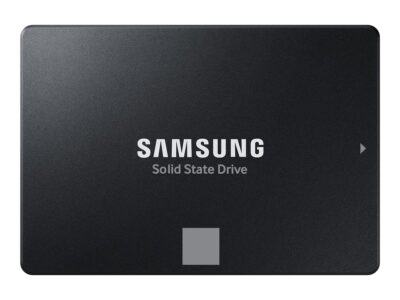

Samsung 870 EVO MZ-77E1T0B – 1 TB – SATA-600

Model Code (Capacity)¹⁾

• MZ-77E250 (250GB)



• MZ-77E500 (500GB)



• MZ-77E1T0 (1,000GB)



• MZ-77E2T0 (2,000GB)



• MZ-77E4T0 (4,000GB)

General Feature

• APPLICATION

  Client PCs



• FORM FACTOR

  2.5 inch



• INTERFACE

  SATA 6 Gb/s Interface,
  compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface



• DIMENSION (WxHxD)

  100 X 69.85 X 6.8 (mm)



• WEIGHT

  250GB: Apporx. 45.0g
  500GB: Apporx. 45.0g
  1TB: Apporx. 45.0g
  2TB: Apporx. 46.0g
  4TB: Apporx. 48.0g



• STORAGE MEMORY

  Samsung V-NAND 3bit MLC



• CONTROLLER

  Samsung MKX Controller



• CACHE MEMORY

  Samsung 512 MB Low Power DDR4 SDRAM (250GB)
  Samsung 512 MB Low Power DDR4 SDRAM (500GB)
  Samsung 1 GB Low Power DDR4 SDRAM (1,000GB)
  Samsung 2 GB Low Power DDR4 SDRAM (2,000GB)
  Samsung 4 GB Low Power DDR4 SDRAM (4,000GB)

Special Feature

• TRIM SUPPORT

  Yes



• S.M.A.R.T SUPPORT

  Yes



• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm



• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)



• WWN SUPPORT

  World Wide Name supported



• DEVICE SLEEP MODE SUPPORT

  Yes

Performance²⁾

• SEQUENTIAL READ³⁾

  Up to 560 MB/s



• SEQUENTIAL WRITE^{3) 4)}

  Up to 530 MB/s



• RANDOM READ (4KB, QD32)^{3) 4)}

  Up to 98,000 IOPS



• RANDOM WRITE (4KB, QD32)^{3) 4)}

  Up to 88,000 IOPS



• RANDOM READ (4KB, QD1)^{3) 4)}

  Up to 13,000 IOPS



• RANDOM WRITE (4KB, QD1)^{3) 4)}

  Up to 36,000 IOPS

Environment

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL)^{5) 6)}

  250GB: Average: 2.2 W Maximum: 3.5 W (Burst mode)
  500GB: Average: 2.2 W Maximum: 3.5 W (Burst mode)
  1,000GB: Average: 2.5 W Maximum: 4.0 W (Burst mode)
  2,000GB: Average: 2.5 W Maximum: 4.5 W (Burst mode)
  4,000GB: Average: 2.5 W Maximum: 5.0 W (Burst mode)



• POWER CONSUMPTION (IDLE)^{5) 6)}

  250GB: Max. 30 mW
  500GB: Max. 30 mW
  1TB: Max. 30 mW
  2TB: Max. 35 mW
  4TB: Max. 35 mW



• ALLOWABLE VOLTAGE

  5V ± 5% Allowable voltage



• RELIABILITY (MTBF)

  1.5 Million Hours Reliability



• OPERATING TEMPERATURE

  0 – 70 ℃



• SHOCK

  1,500 G & 0.5 ms (Half sine)

Accessories

• INSTALLATION KIT

  N/A

Software

• INSTALLATION KIT

  Magician Software for SSD management

Warranty

• MZ-77E250 (250GB)

  5 Years or 150 TBW



• MZ-77E500 (500GB)

  5 Years or 300 TBW



• MZ-77E1T0 (1,000GB)

  5 Years or 600 TBW



• MZ-77E2T0 (2,000GB)

  5 Years or 1,200 TBW



• MZ-77E4T0 (4,000GB)

  5 Years or 2,400 TBW
