Ubiquiti UniFi Access G2 Starter Kit Professional

Name: Ubiquiti UniFi Access G2 Starter Kit Professional
Brand: Ubiquiti
SKU: UA-G2-SK-Pro
Price: 503.14 EUR
Availability: InStock

€ 608,80

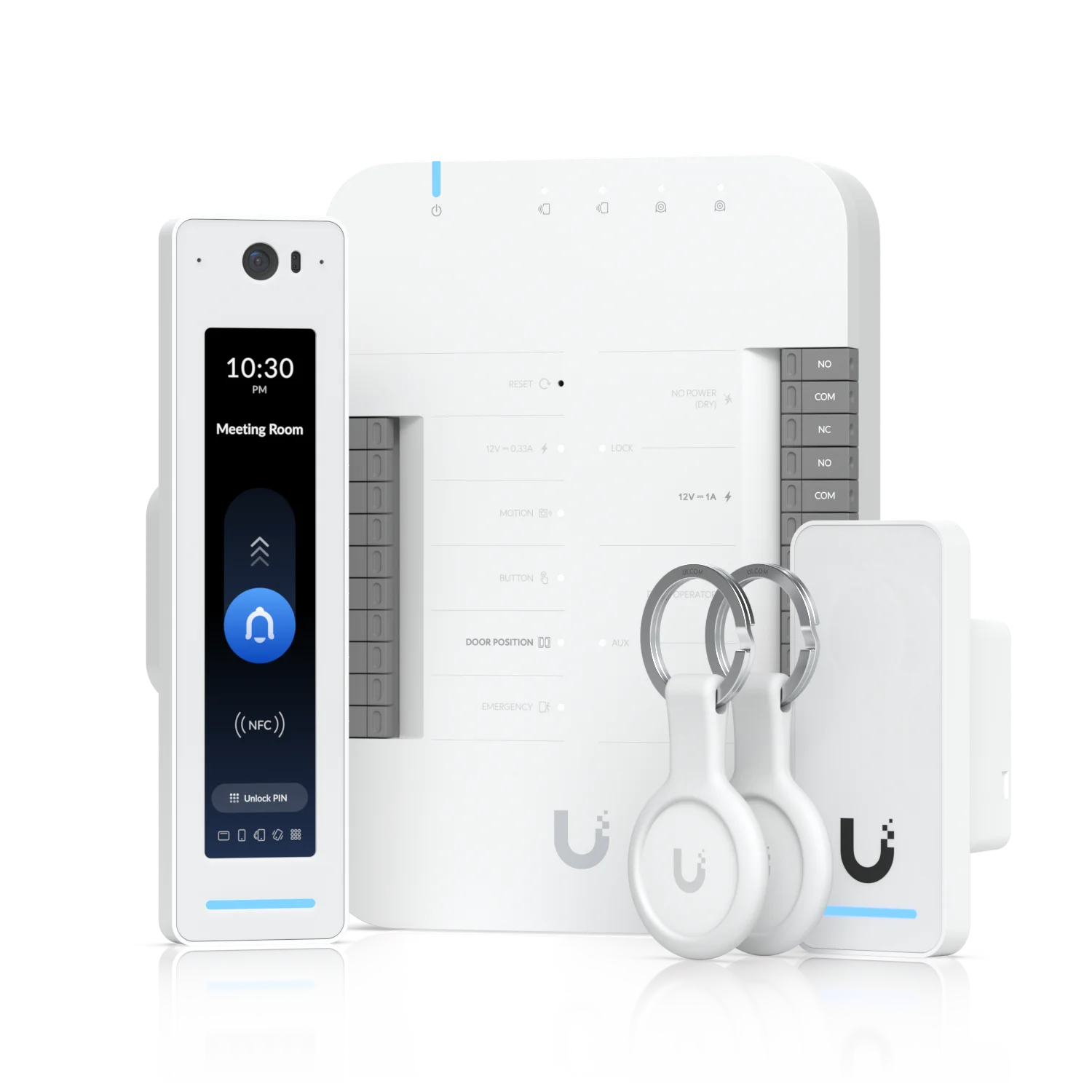

Ubiquiti UniFi Access G2 Starter Kit Professional – (1) Access Hub, (1) Access Reader G2 Pro, (1) Access Reader G2, (2) UniFi Access pocket key fob

2 op voorraad

EAN: 0810084691830 Artikelnummer: UA-G2-SK-Pro Categorieën: Overige randapparatuur, Randapparatuur Tag: UA Merk: Ubiquiti

G2 Starter Kit Professional

UA-G2-SK-Pro

Hit the ground running on Access with a pro experience for a door, featuring two readers.

(1) UniFi Access Door Hub

(1) Access Reader G2 Professional

(1) Access Reader G2 for door exit or entrance for additional door

(2) UniFi Access pocket key fob

Installation Guide

Works with the UniFi Access Application

Centrally manage your Access devices with one intuitive interface
Set door, floor, and user-specific access policies and schedules
Create users, set their roles, and assign NFC cards
Review entries, exits, and denials with detailed event logging
Set up devices quickly and manage them on the go with a powerful mobile app

And much more

Technical Specifications

UA-Hub-Door
Mechanical

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)

Weight

363 g (12.8 oz)

Enclosure material

Polycarbonate

Mounting material

Polycarbonate

Hardware

Networking interface

(5) 10/100/1000 Base-T

Power method

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU

Max. power consumption

Without PoE output: 30W
With PoE output: 50W

PoE input

50V DC, 1A

PoE output

PoE passthrough, (4) PoE, 50V DC, total 20W

Button

(1) Factory-reset

LEDs

System: white/blue
Output relays: white

Digital input

Request to exit/request to enter/remote release/door position sensor

Dry output relay

Lock: 30V DC, 1A
Aux: 30V DC, 1A

Powered output relay

Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A

Operating environment

Indoor use only

Operating temperature

0 to 40° C (32 to 104° F)

Operating humidity

5 to 95% noncondensing

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door002, V01

Wiring Information

Typical installation (Shielded)

DC power input	Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch	Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit	Belden 8750 18 AWG 2 (152.5 m/500 ft)

Wiring gauge requirements (AWG)

Total length to device	Output load current at 12V DC
Total length to device	100mA	250mA	500mA	1A
6.1 m (20 ft)	22	22	22	18
15.2 m (50 ft)	22	22	22	18
30.5 m (100 ft)	22	22	18	18

PoE cabling requirements

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm²) for horizontal or riser cable.

LEDs

PoE in

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware

PoE out

Off: Not connected or no data link
Steady blue: Connected and data link on

UA-G2-Pro
Mechanical

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)

Weight

136 g (4.8 oz)

Enclosure material

Polycarbonate, glass

Mount material

Aluminum alloy

Mounting

Wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) 10/100/1,000 MbE RJ45 port

Connectivity

BLE 4.2
NFC

Power method

PoE

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensor

ToF sensor

Camera

4000 x 3000, 12 MP, 30 FPS

Microphone

Yes

Speaker

(1) 4 ohm, 1.5W

LEDs

R/G/B/W
Flash

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 to 90% noncondensing

Certifications

CE, FCC, IC

UA-G2
Mechanical

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)

Weight

82 g (2.9 oz)

Enclosure material

Polycarbonate, glass

Mounting

In wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.1

Power method

PoE

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 ohm, 0.7W

LEDs

R/G/B/W

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating temperature

-30 to 45° C (-22 to 113° F)

Operating humidity

5 to 90% noncondensing

Certifications

CE, FCC, IC

UA-Pocket
Mechanical

Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29″)

Weight

16 g (0.56 oz)

Enclosure material

Polycarbonate, stainless steel

Weatherproofing

IP54

Hardware

NFC frequency

13.56 MHz

NFC technology

ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol

Operating temperature

-10 to 45° C (14 to 113° F)

Operating humidity

10 to 90% noncondensing

Certification
