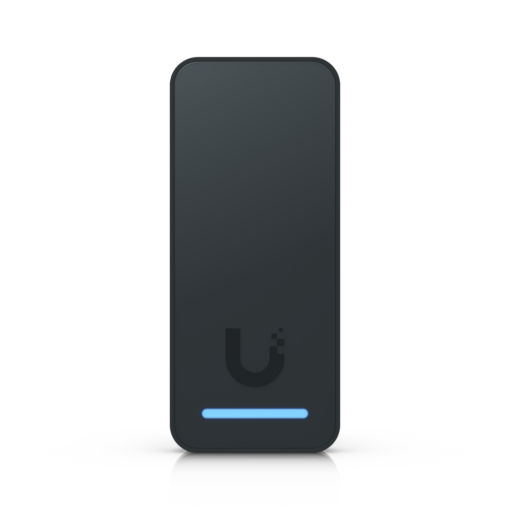

Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.

Features:

• • • (1) PoE input powered by an Access Hub
    • Improved outdoor operation with IP55 weather resistance (-30 to 45° C)
    • Unlock using NFC cards, the UniFi Identity App, or a handwave
    • Improved audio performance with added greeting messages

Managed with the UniFi Access application: Version 1.5.9 and later

• Works with the UniFi Access Application

• Centrally manage your Access devices with one intuitive interface
• Set door, floor, and user-specific access policies and schedules
• Create users, set their roles, and assign NFC cards
• Review entries, exits, and denials with detailed event logging
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

Unlock using an NFC card or UniFi Identity mobile app

Additional handwave unlock functionality

Entry and exit greeting messages

Connects to UniFi Access Hub using PoE

IP55 weather resistance (-30 to 45° C)

PRODUCT SUMMARY

Mechanical
Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
Weight	82 g (2.9 oz)
Enclosure material	Polycarbonate, glass
Mounting	In wall, gang box
Weatherproofing	IP55
Hardware
Networking interface	(1) 10/100 MbE RJ45 port
Connectivity	BLE 4.1
Power method	PoE
Supported voltage range	48V DC
Max. power consumption	5W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensors	Proximity sensor
Speaker	(1) 8 ohm, 0.7W
LEDs	R/G/B/W
Button	(1) Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire
Operating temperature	-30 to 45° C (-22 to 113° F)
Operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
Software
Management application	UniFi Access: Version 1.5.9 and later

INSTRUCTIONS AND MANUALS

Datasheet

Installation Guide
