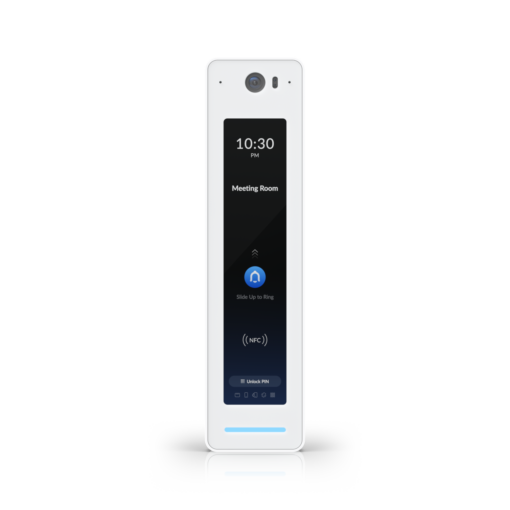

Access Reader G2 Pro
SKU: UA-G2-Pro
Datasheet
Installation GuideSecond-generation NFC card reader and intercom.
Features:
-
-
- (1) PoE input powered by an Access Hub
- Improved rain resistance (IP55)
- Unlock using NFC card, UniFi Identity App, doorbell ring, or PIN
- Camera shows full view at ADA compliant height (122 cm)
-
Managed with the UniFi Access application: Version 1.5.9 and later
- Works with the UniFi Access Application
- Centrally manage your Access devices with one intuitive interface
- Set door, floor, and user-specific access policies and schedules
- Create users, set their roles, and assign NFC cards
- Review entries, exits, and denials with detailed event logging
- Set up devices quickly and manage them on the go with a powerful mobile app
Unlock using an NFC card or UniFi Identity mobile app
Doorbell for unlock with video of visitor and two-way intercom
Video works at ADA-compliant mounting height
PIN unlocking on the screen
Connects to UniFi Access Hub using PoE
IP55 rain resistance (-10 to 40° C)
PRODUCT SUMMARY
| Mechanical | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″) |
| Weight | 136 g (4.8 oz) |
| Enclosure material | Polycarbonate, glass |
| Mount material | Aluminum alloy |
| Mounting | Wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) 10/100/1,000 MbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | ToF sensor |
| Camera | 4000 x 3000, 12 MP, 30 FPS |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W Flash |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: >Version 1.5.9 and later |
