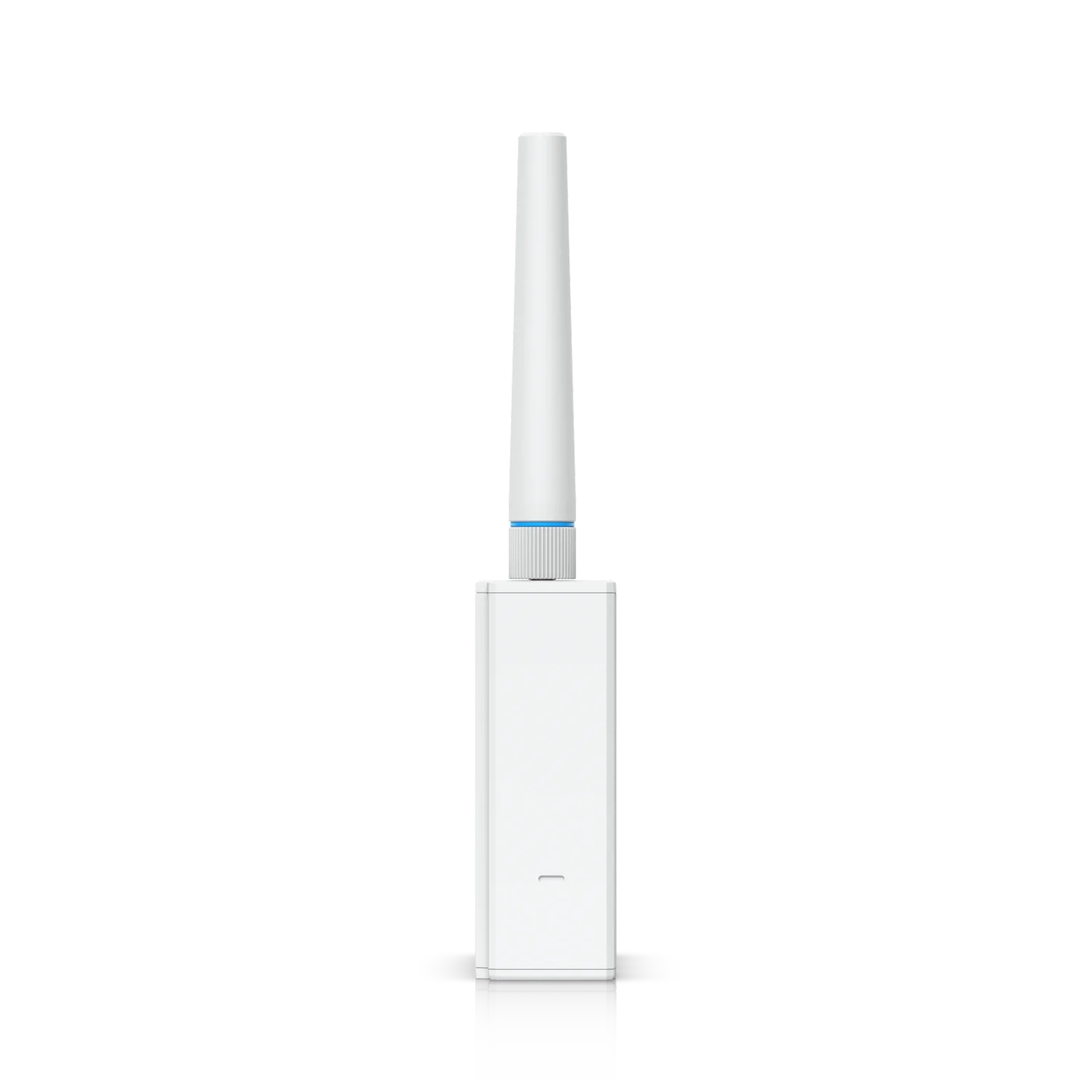

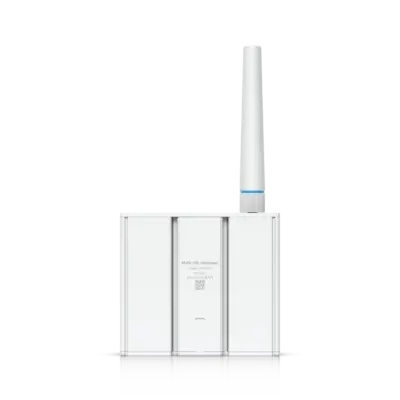

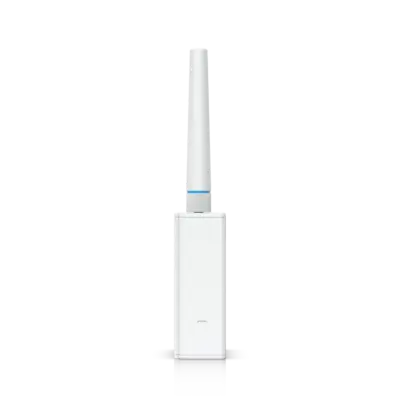

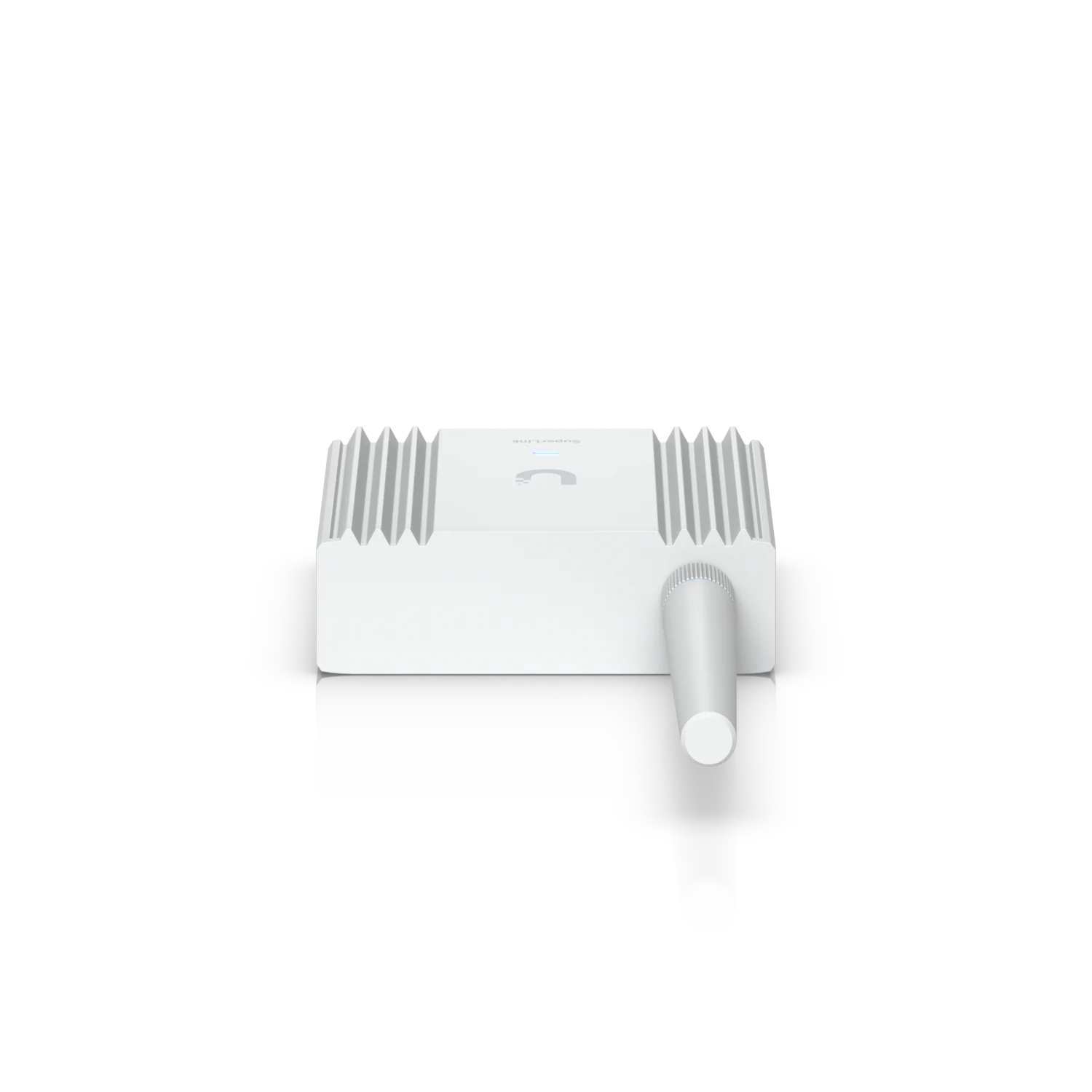

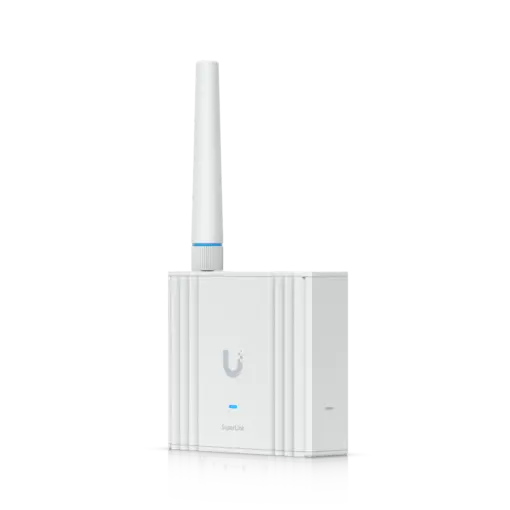

SuperLink
UP-SuperLink

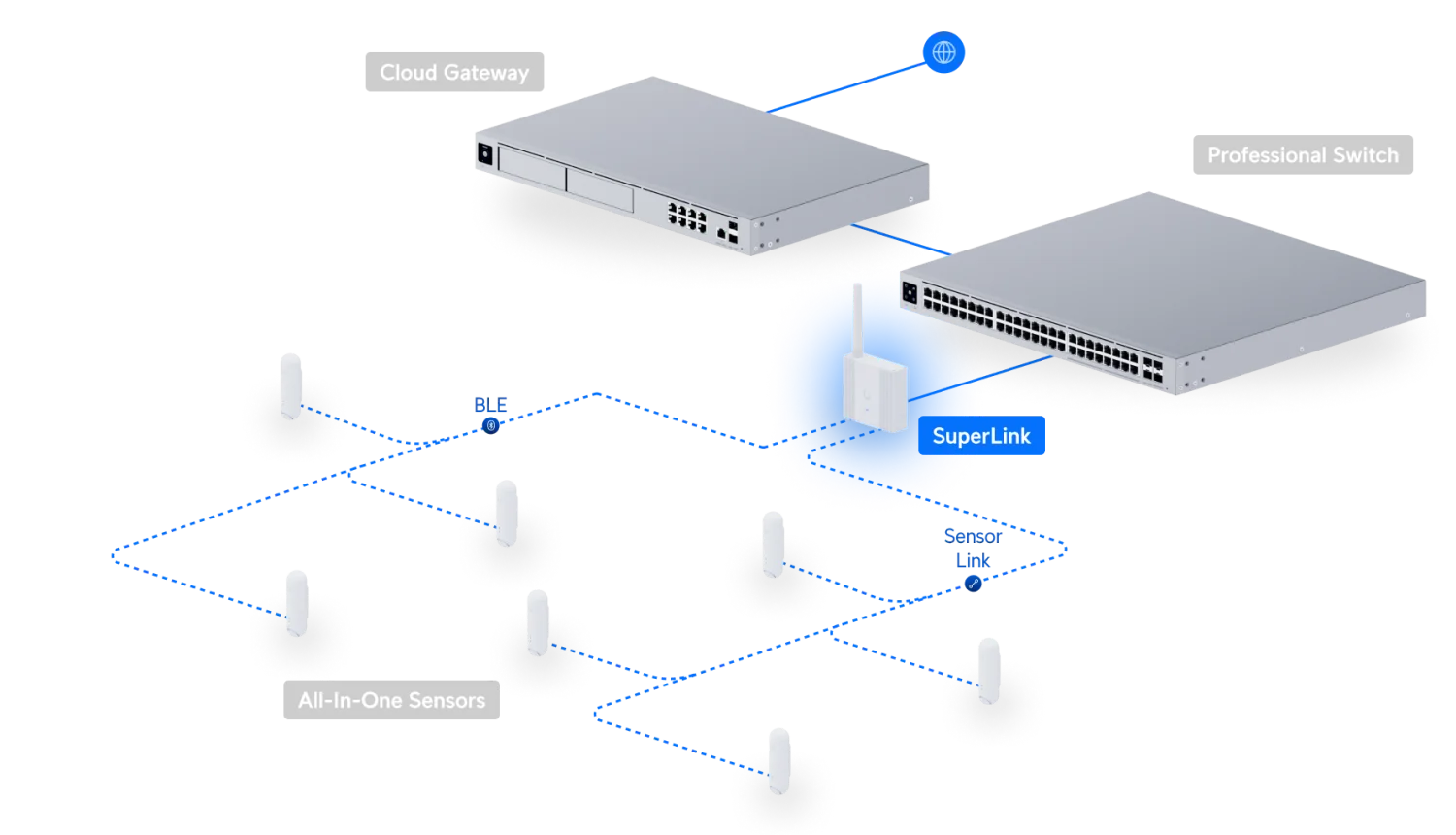

Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
Note. SuperLink sensors are coming soon.
Long-range BLE coverage is comparable to WiFi coverage
| Mechanical | |
|---|---|
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1″) With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5″) With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2″) |
| Weight | 179 g (6.3 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate |
| Hardware | |

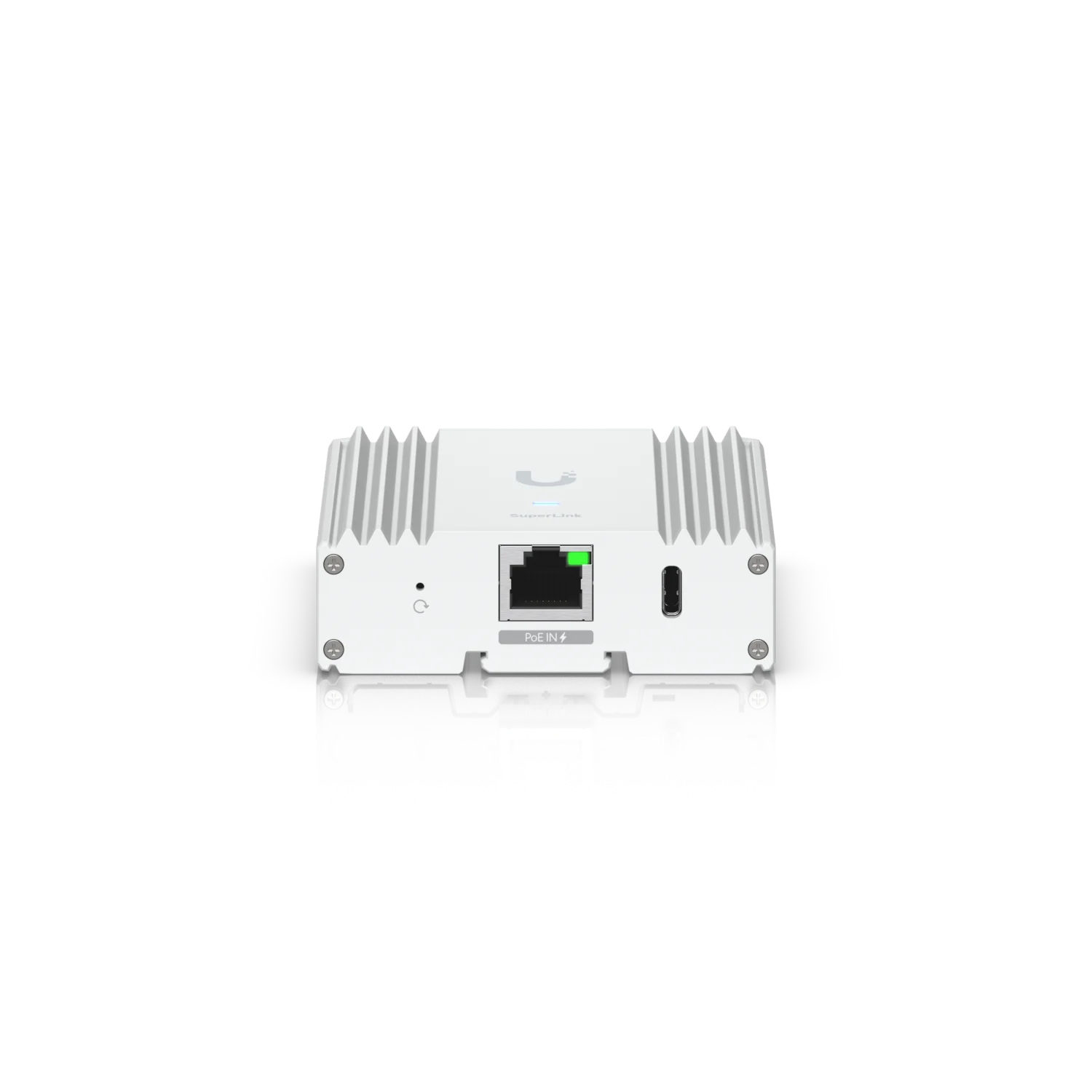

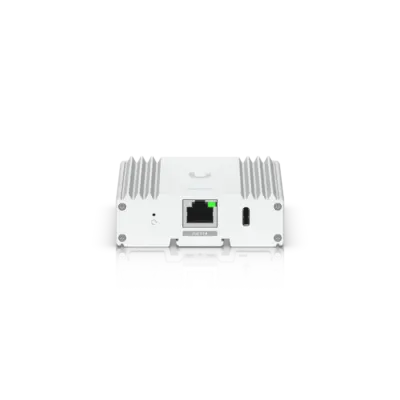

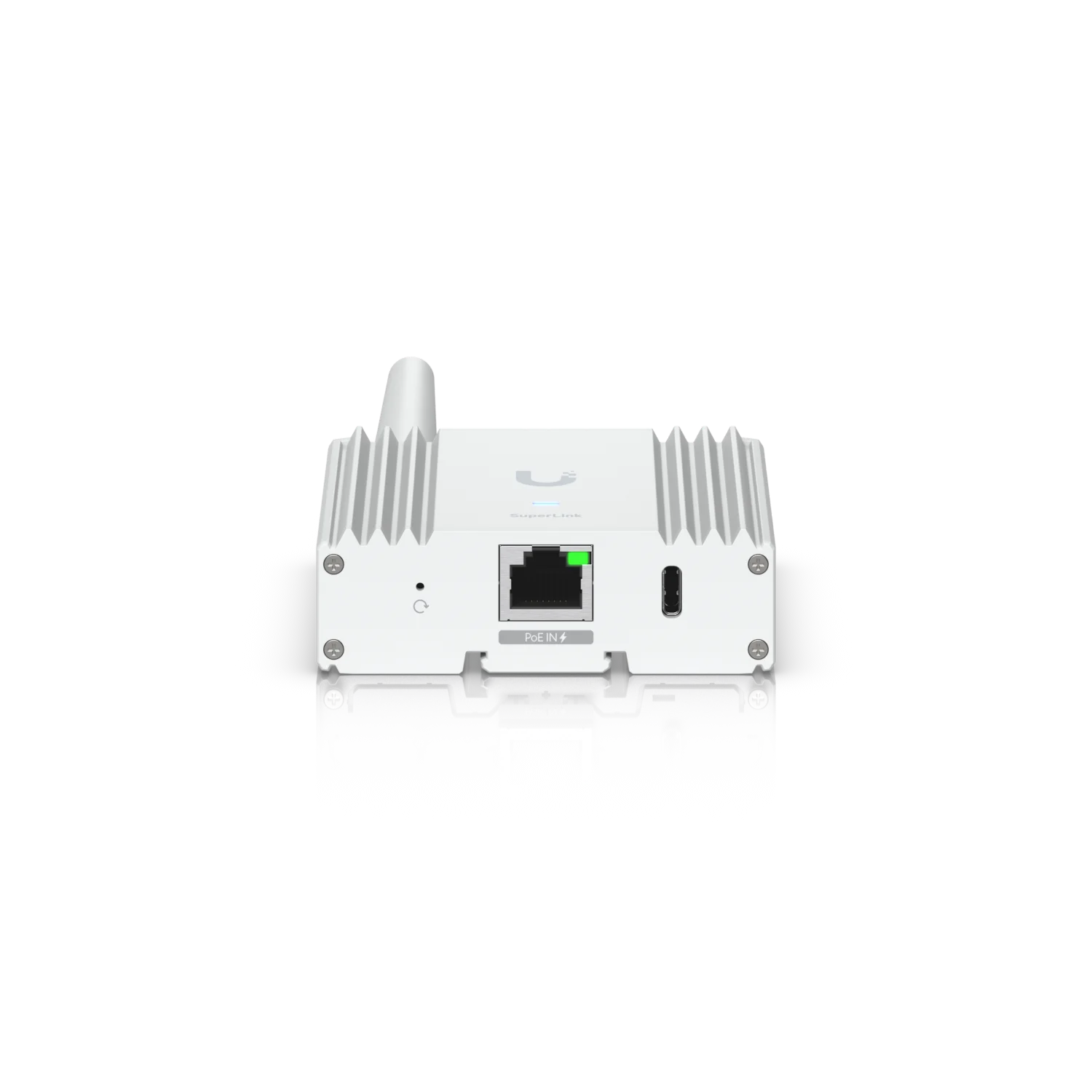

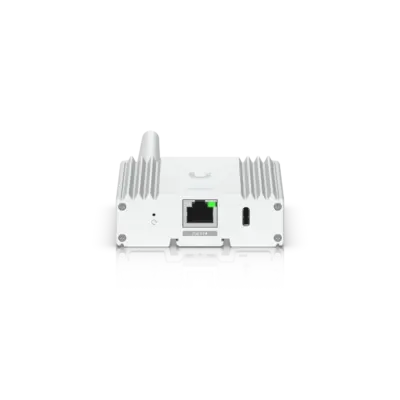

| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface | Bluetooth® 5.2 SuperLink (Proprietary) |
| Power method | PoE USB Type-C, 5V, 1A (Optional) |
| Max. power consumption | 3.4W |
| ESD/EMP protection | Air: ± 8kV Contact: ± 4kV |

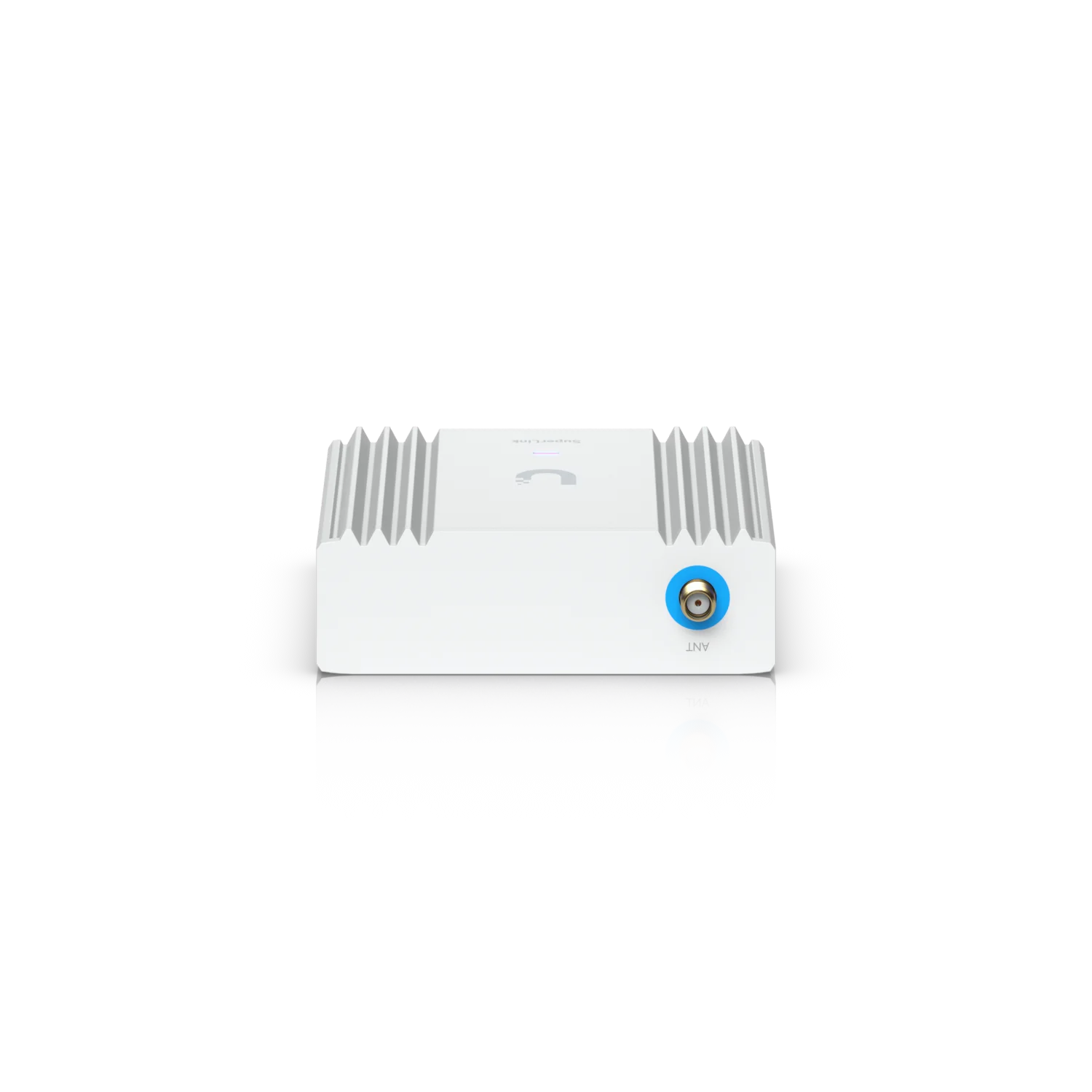

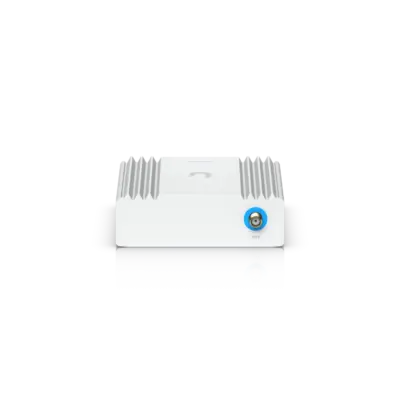

| Antenna gain Bluetooth SuperLink |
3 dBi 1 dBi |
| Max. TX power Bluetooth SuperLink |
10 dBm 27 dBm |
| Max. client count Bluetooth SuperLink |
7 96* *SuperLink sensors are coming soon. |
| LED | (1) Blue/white |
| Button | (1) Factory reset |

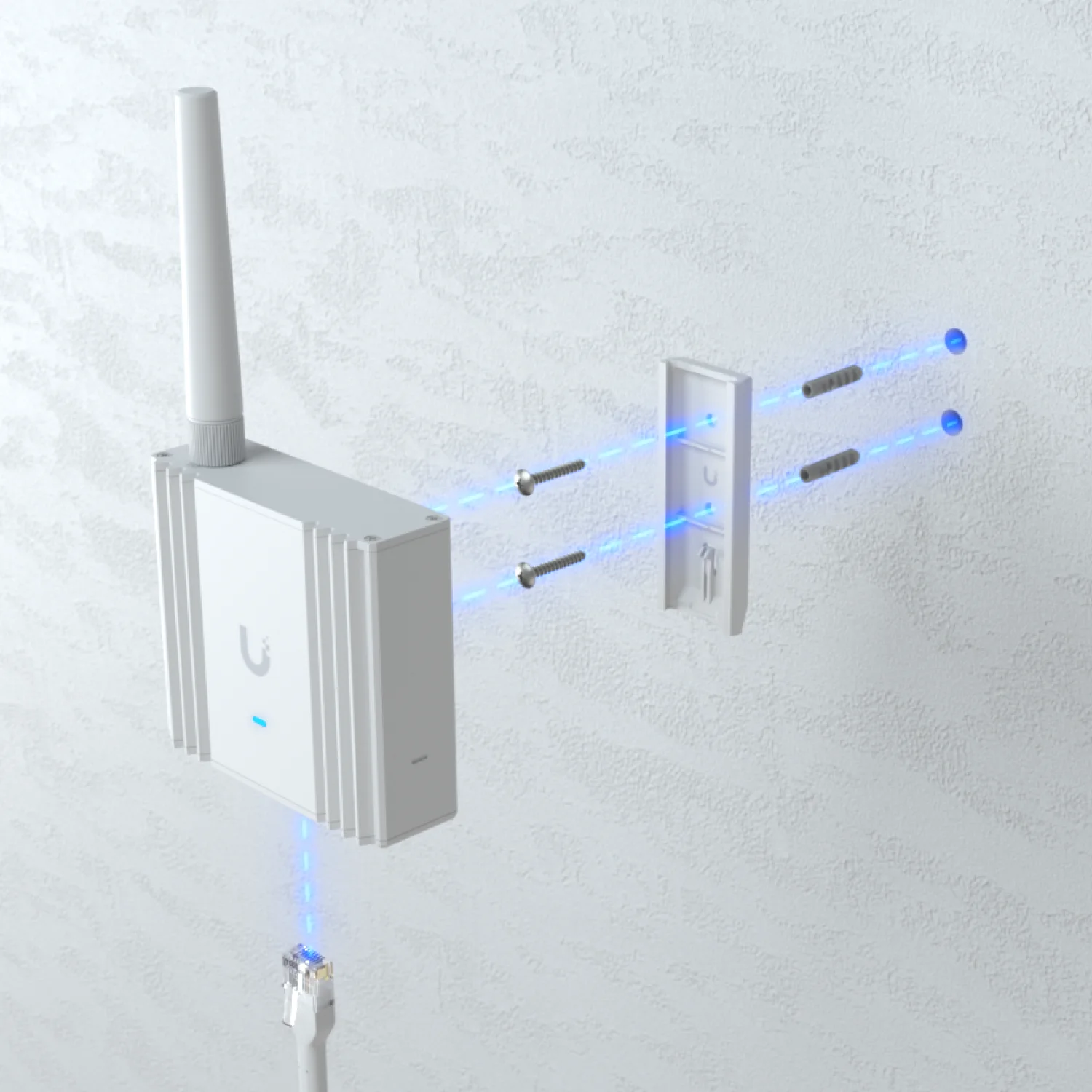

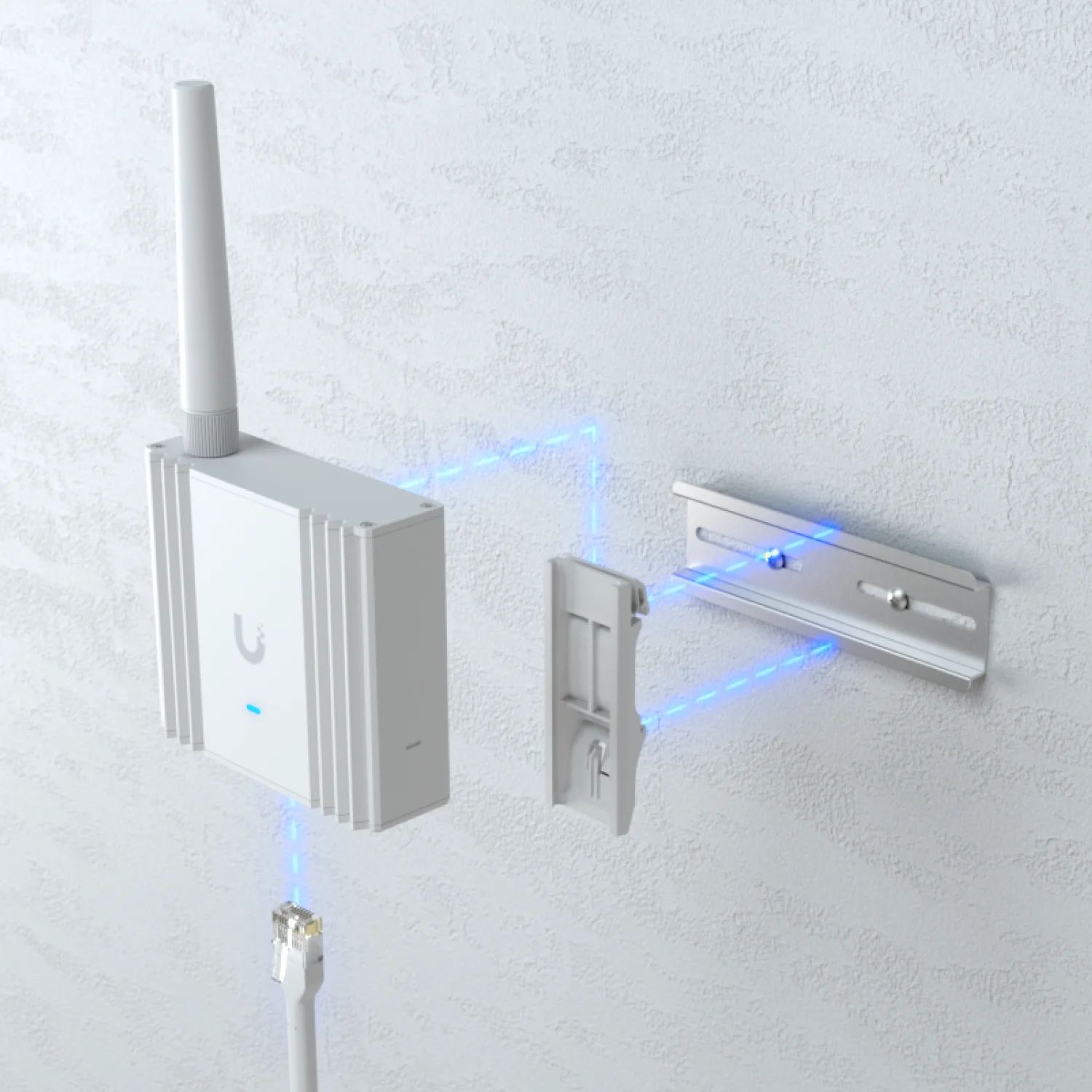

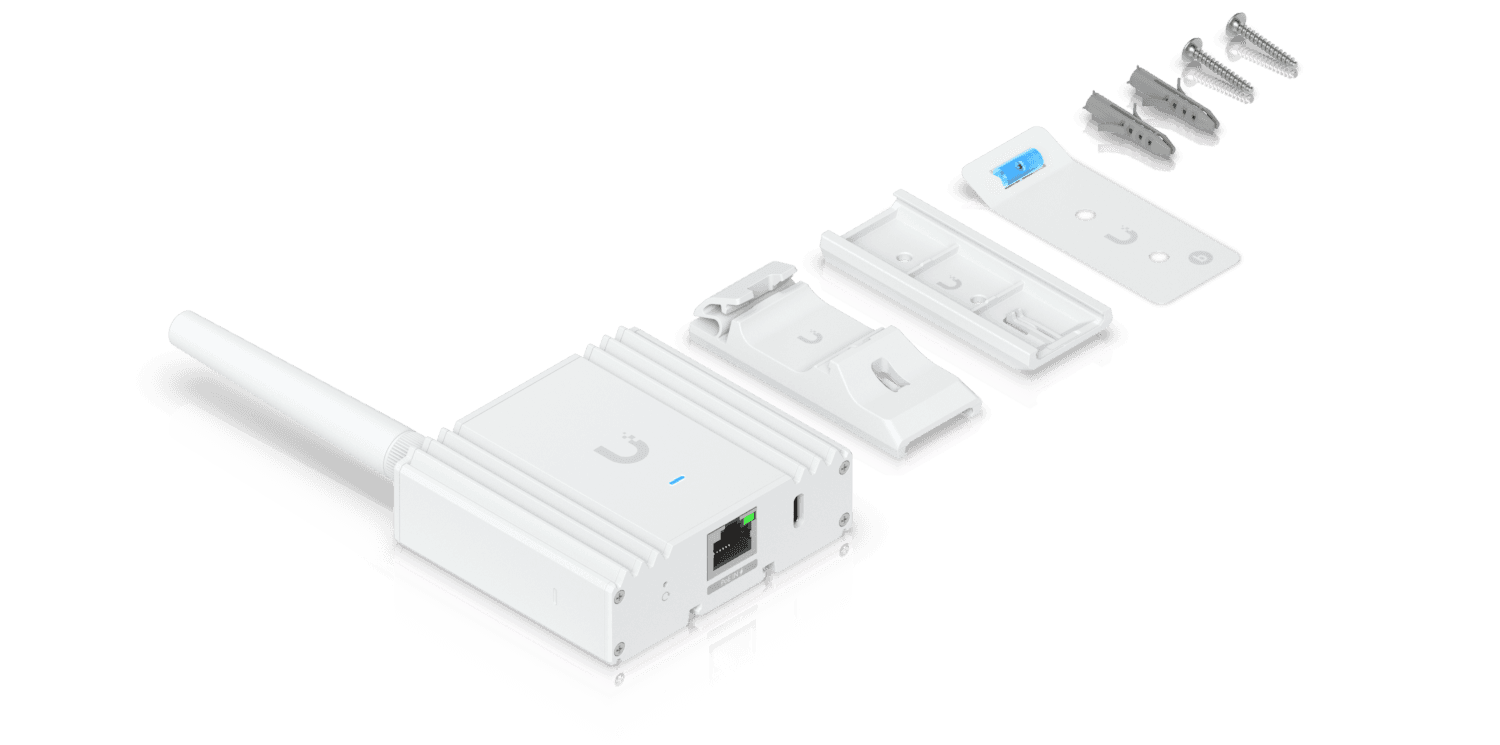

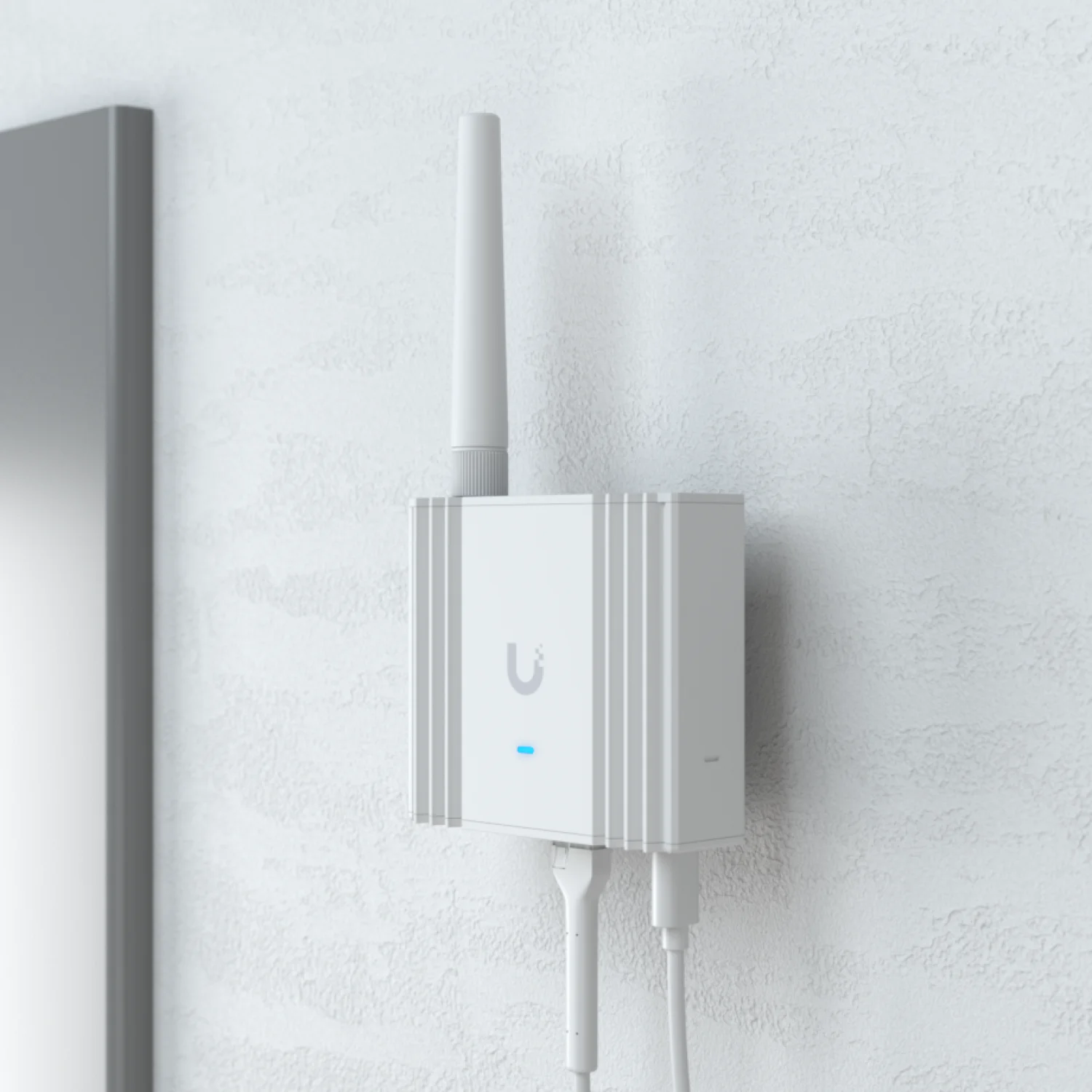

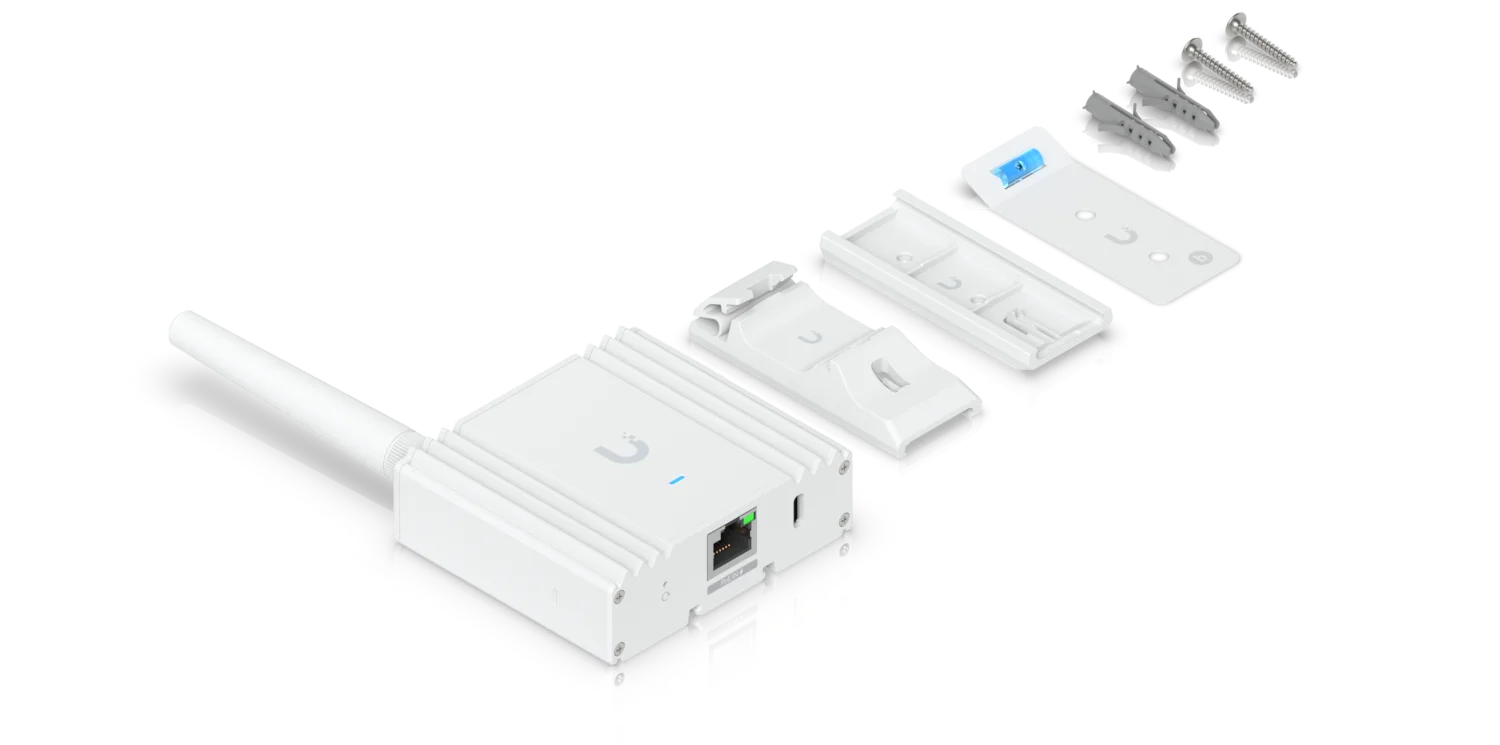

| Mounting | Wall, DIN rail |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
| Gewicht | 0,179 kg |
|---|
