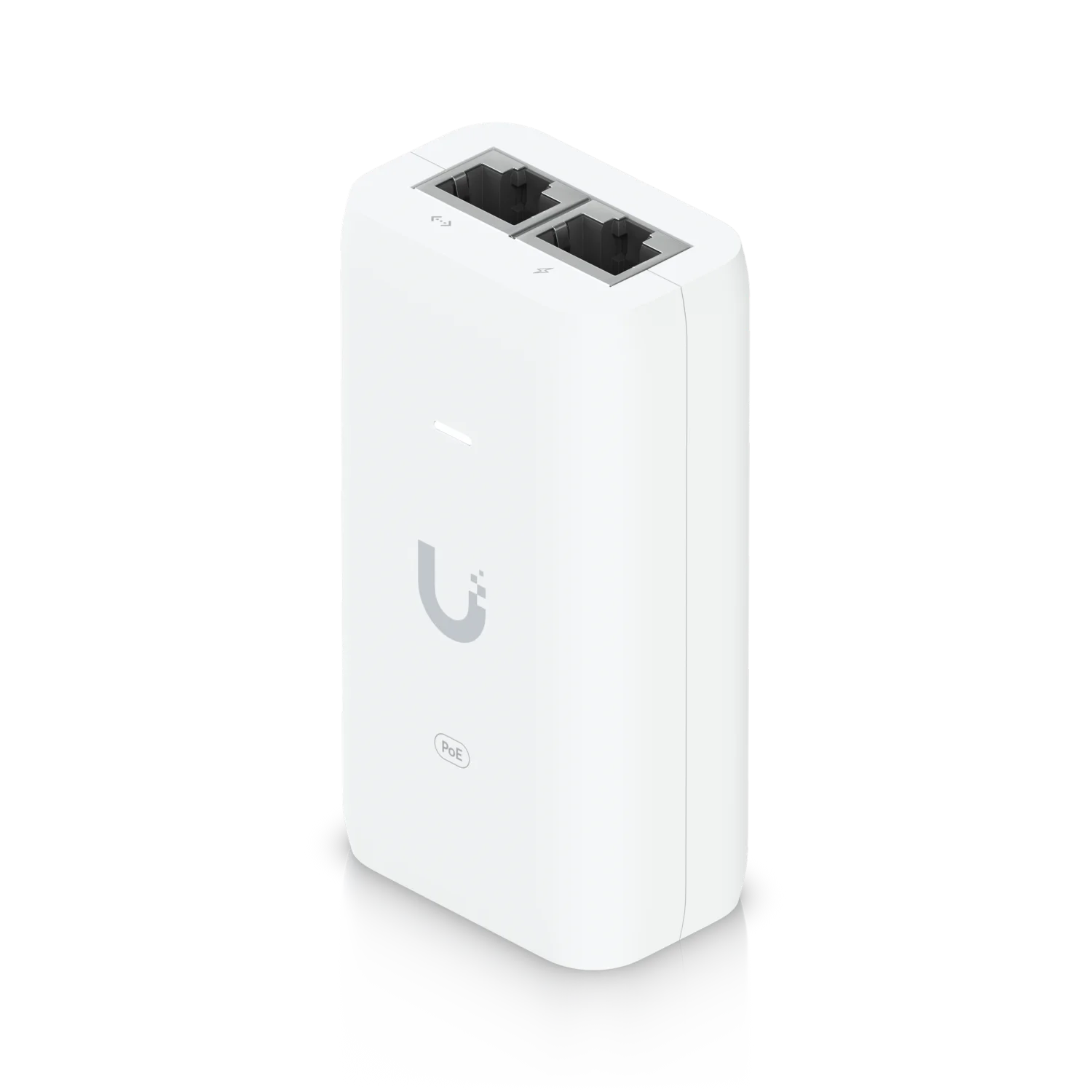

Ubiquiti U-PoE (U-POE-AF) – PoE Adapter – 15 Watt

PoE Adapter (15W)
U-PoE
 Datasheet

An adapter that can power UniFi PoE devices with wireless mesh applications, or offload PoE switch power dependencies.

Features:

  • Delivers up to 15W of PoE
  • Compatible with the U6 Mesh, Camera G4 Pro, and other PoE devices
  • Surge, peak pulse, and overcurrent protection
  • AC cable with earth ground
  • LED indicator for status monitoring



Specifications
Model U-POE-af
Dimensions 86 x 46 x 33 mm (3.39 x 1.81 x 1.30″)
Weight 100 g (3.53 oz)
Output voltage 48V DC @ 0.32A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset Button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 500mA @ 90V AC
Inrush current <100A Peak at 25°C
Efficiency 84.25+%
Output ripple 200mV p-p
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC, UL
