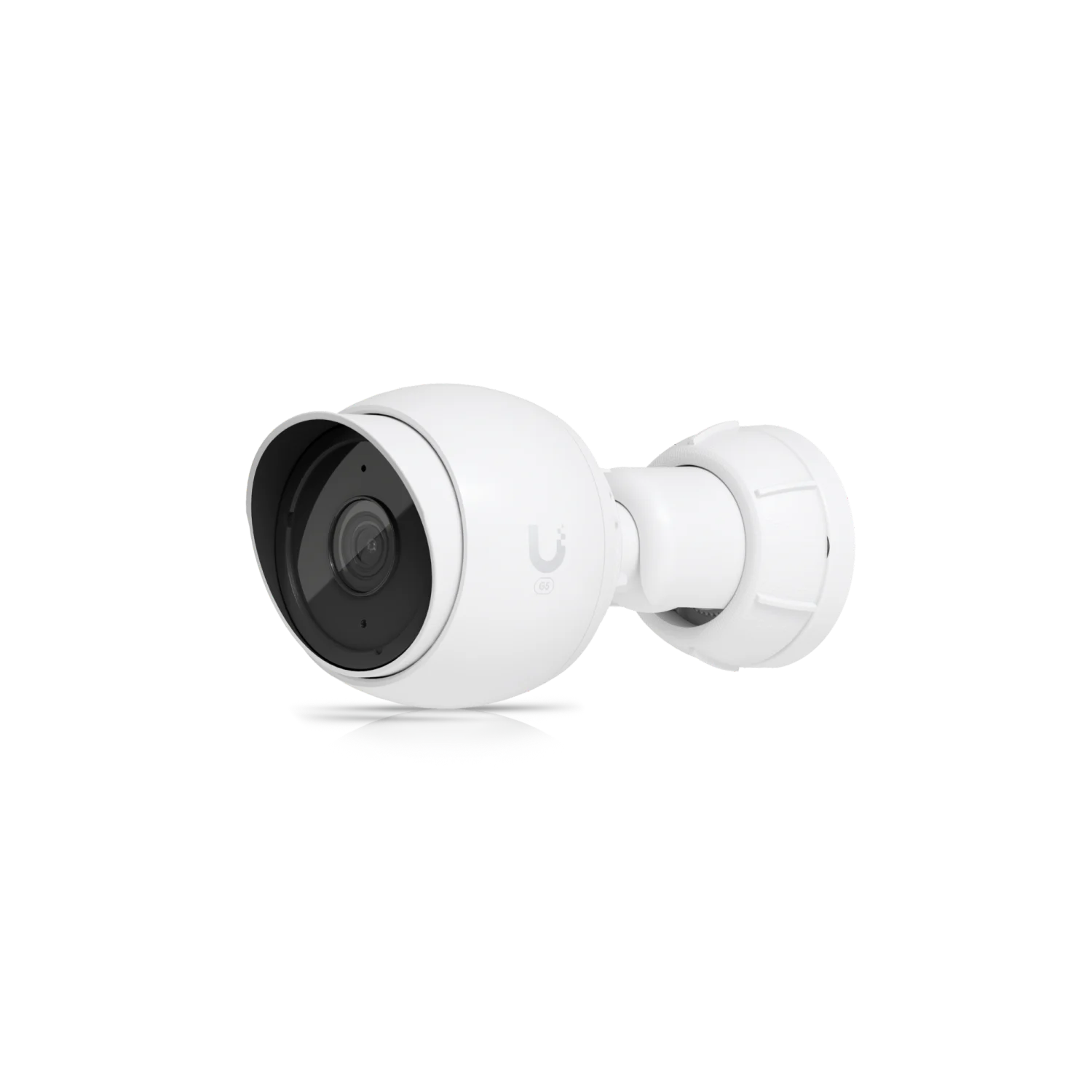

Next-gen indoor/outdoor 2K HD PoE Camera.

Features:

• • • 2K HD, 30 FPS camera with a 5MP CMOS sensor
    • View angle (84.4˚)
    • Weatherproof IPX4-rated enclosure
    • Flexible, three-axes adjustment
    • Improved low-light performance and IR night vision up to 10m

Managed with the UniFi Protect application: Version 2.2.7 or 2.7.18 and later (web) / 1.10.0 and later (mobile)

• Works with the UniFi Protect Application

• Plug-and-play installation
• Designed for scalability
• Intuitive user interface
• Powerful mobile app
• Subscription-free

• And much more

PERFORMANCE ADVANCEMENTS

High Dynamic Range
(HDR)

Low Light

Night Vision
(IR Sensor on)

PRODUCT SUMMARY

Mechanical
Dimensions	Without mount: Ø75.5 x 74.4 mm (Ø2.97 x 2.93″) With wall mount: Ø75.5 x 150 mm (Ø2.97 x 5.9″)
Weight	Without mount: 225 g (7.94 oz) With wall mount: 315 g (11.11 oz)
Enclosure materials	Polycarbonate, aluminum alloy
Mount materials	Wall mount: aluminum alloy, polycarbonate Pole mount: aluminum alloy
Weatherproofing	IPX4
Resistance	IK04
Optics
Sensor	5 MP CMOS sensor
Lens	Fixed focal length
View angle	H: 84.4°, V: 45.4°, D: 99.8°
Night mode	Built-in IR LED illumination and IR cut filter
Video
Video compression	H.264, MJPEG
Resolution	2688 x 1512 (16:9)
Max. frame rate	30 FPS
Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor specs	Dual-core Arm® Cortex®-A7 based chip
Networking interface	10/100 MbE RJ45 port
Max. power consumption	4W
Power method	PoE
Supported voltage range	37—57V DC
Button	Factory reset
Mounting	Wall, pole mount
Operating temperature	-20 to 40º C (-4 to 104º F)
Operating humidity	0 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Yes (Can be disabled in software)
Software
UniFi OS application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™

INSTRUCTIONS AND MANUALS

Datasheet

Installation Guide
