Name: Ubiquiti U-PoE+ (U-POE-AT) - PoE+ Injector - 30 Watt | SWW.nl
Brand: Ubiquiti
SKU: U-POE+
Price: 16.53 EUR
Availability: InStock

PoE+ Adapter (30W)

U-PoE+ (U-POE-AT)

Datasheet

Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other PoE+ devices.

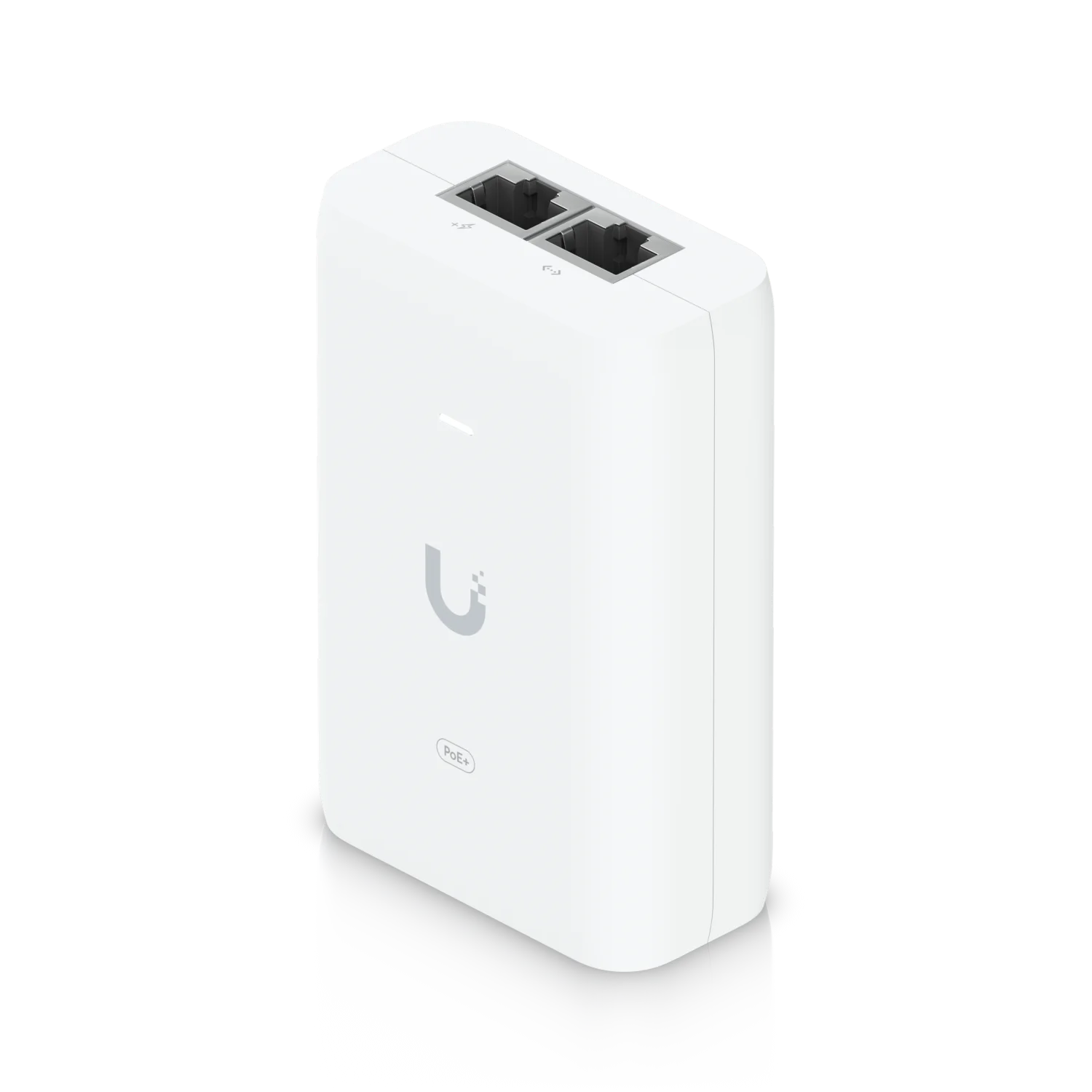

The PoE+ Injector (U PoE AT) is designed to power PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the UniFi6 Long-Range (U6 LR), UniFi6 IW (U6 IW), and other devices that adhere to the PoE+ standard. It also provides enhanced protection against electrical surges.

Features:

- - Delivers up to 30W of PoE+
  - Compatible with the U6 LR, U6 IW, and other PoE+ devices
  - Surge and clamping protection
  - AC cable with earth ground

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Delivers up to 30W of PoE+

Surge, peak pulse, and overcurrent protection

Contains RJ45 data input, AC cable with earth ground, and PoE+ output

LED indicator for status monitoring

Compatibility

Specifications

Model
U-PoE+ (U-POE-at)

Dimensions
93 x 62 x 35 mm (3.66 x 2.44 x 1.38″)

Weight
156 g (5.5 oz)

Output Voltage
48VDC @ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Yes

Remote Reset Capability
Yes

Reset Button
No

Rated Voltage
100-240VAC @ 50/60Hz

Input Current
0.75A@90VAC

Inrush Current
<100A Peak @230VAC, 26℃

Efficiency
87%

Output Ripple
1% Max.

Switching Frequency
70 kHz Max.

Line Regulation
≤ 3%

Load Regulation
≤ 5%

2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering
–

Operating Temperature
0 to 40° C (32 to 104° F)

Storage Temperature
-30 to 70°C (-22 to 158° F)

Operating Humidity
35 to 90% Noncondensing

AC Connector
IEC-320 C6

Data IN / PoE
RJ45 Shielded Socket

Surge Protection
Difference and Common Mode

Clamping Protection
11V Data, 60V Power

Max. Surge Discharge
1500A (8/20 μs) Power

Peak Pulse Current
36A (10/1000 μs) Data

Shunt Capacitance
<5 pF data

Response Time
<1 ns

Certifications
CE, FCC, IC, UL
