Ubiquiti UniFi Access Point Swiss Army Knife – WiFi 5

Dimensions

137 x 84 x 34 mm (5.4 x 3.3 x 1.3″)

WiFi Standard

WiFi 5

Spatial Streams

4

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

GbE

Mounting

Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional)

Weatherproofing

IPX6

Power Method

PoE

MIMO

2 x 2 (DL MU-MIMO)

2 x 2 (DL MU-MIMO)

Max. Data Rate

866.7 Mbps (BW80)

300 Mbps (BW40)

Antenna Gain

6.1 dBi

4.7 dBi

Max. TX Power

20 dBm

20 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Yes

Yes

Yes

Yes

Yes

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Max. Power Consumption

8W

Supported Voltage Range

44—57V DC

Networking Interface

(1) GbE RJ45 port

Weight

173 g (6.1 oz)

Wind Loading

33.2 N at 200 km/h (7.5 lbf at 125 mph)

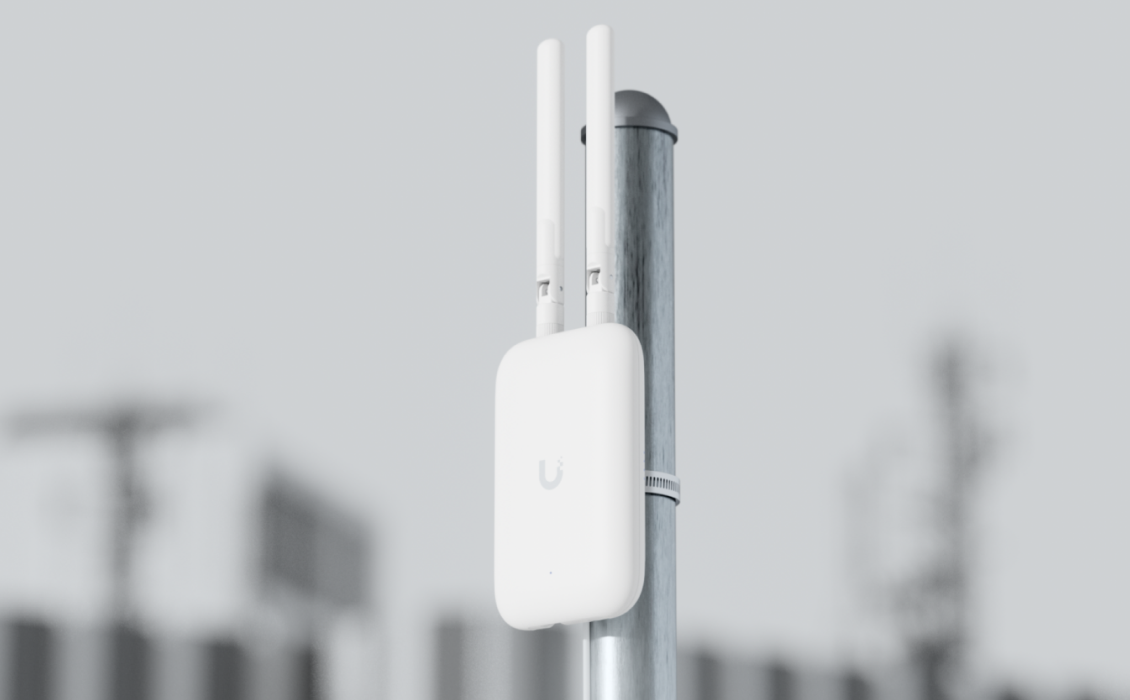

Pole Mount Diameter

1~2″ (25–50 mm)

Antennas

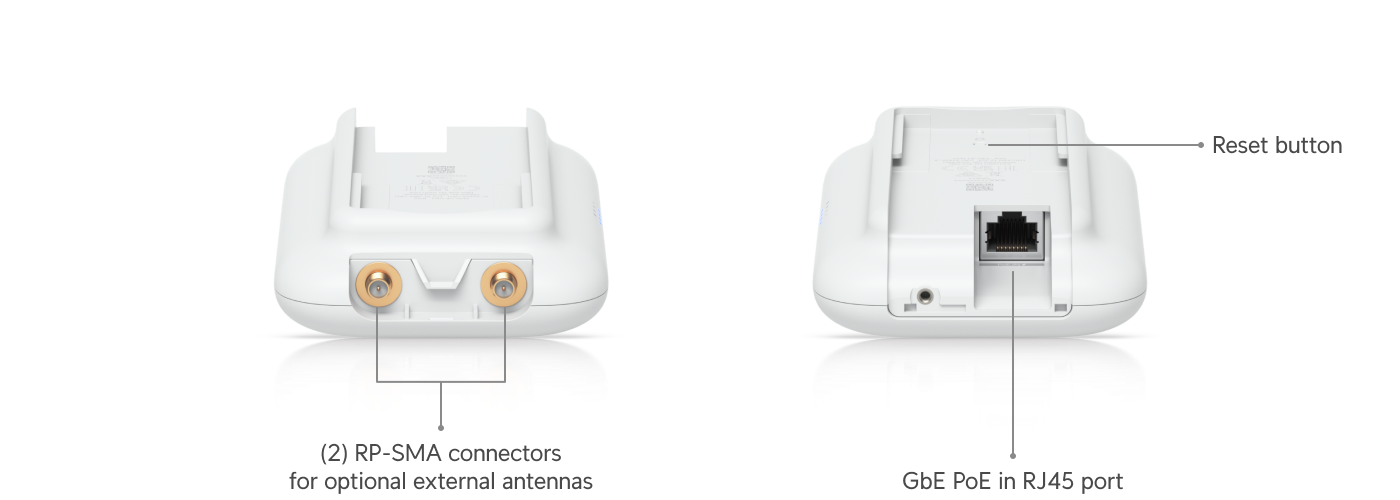

(1) Internal antenna (2) RP-SMA connectors

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

Polycarbonate, SGCC steel, plastic

LEDs

(1) Power: White/Blue (4) Mesh Signal: Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Operating Frequency

US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing
