Ubiquiti UniFi U7 Pro Outdoor – Wi-Fi 7 Access Point
€ 306,95
6 op voorraad
Ubiquiti UniFi 7 Pro Outdoor Wi-Fi 7 Access Point – IP67 – 6 spatial streams – PoE+ – 2.5 GbE uplink – (PoE injector not included)
U7 Pro Outdoor
U7-Pro-Outdoor

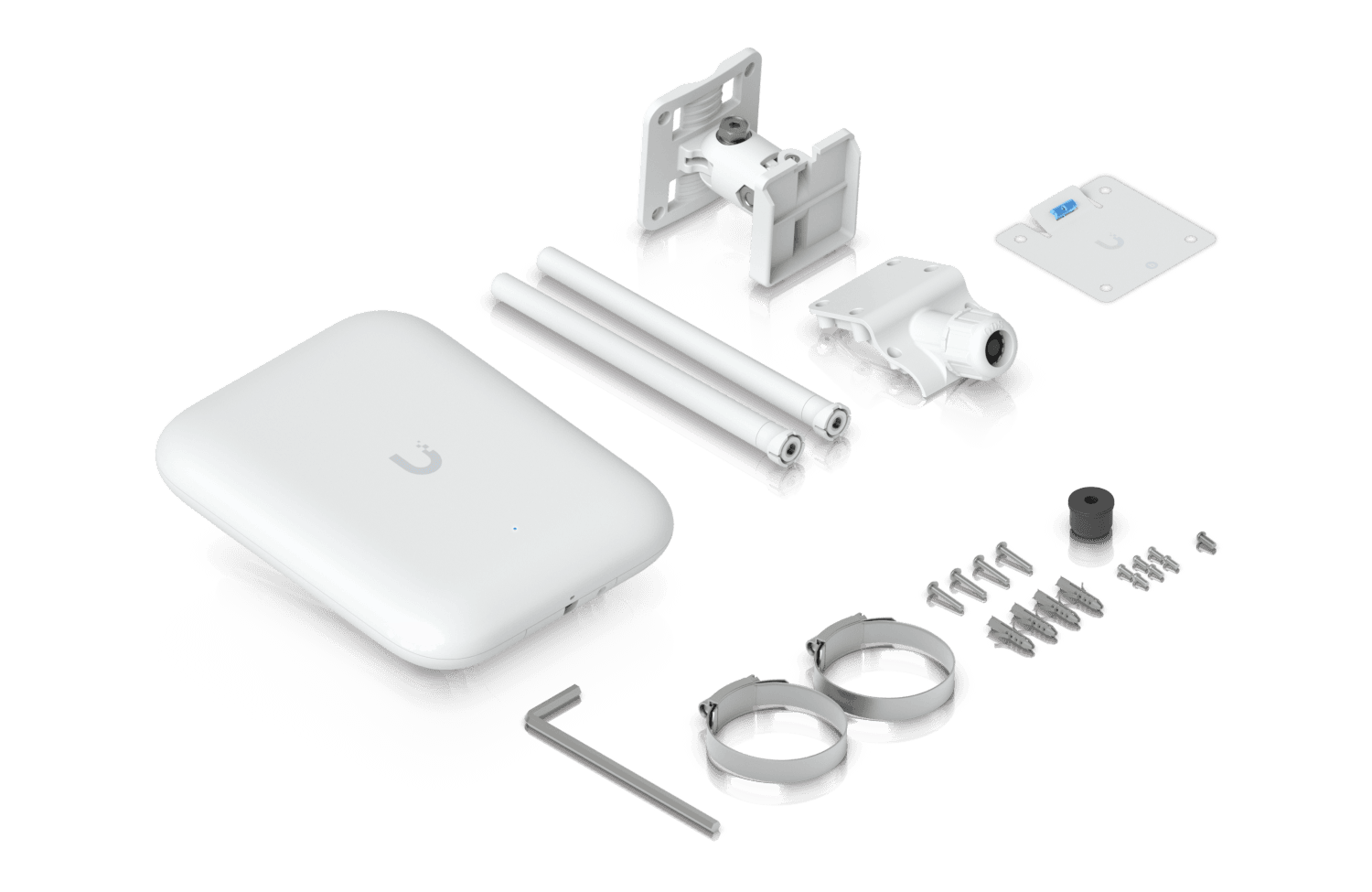

All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mounting bracket.
Overview
Dimensions

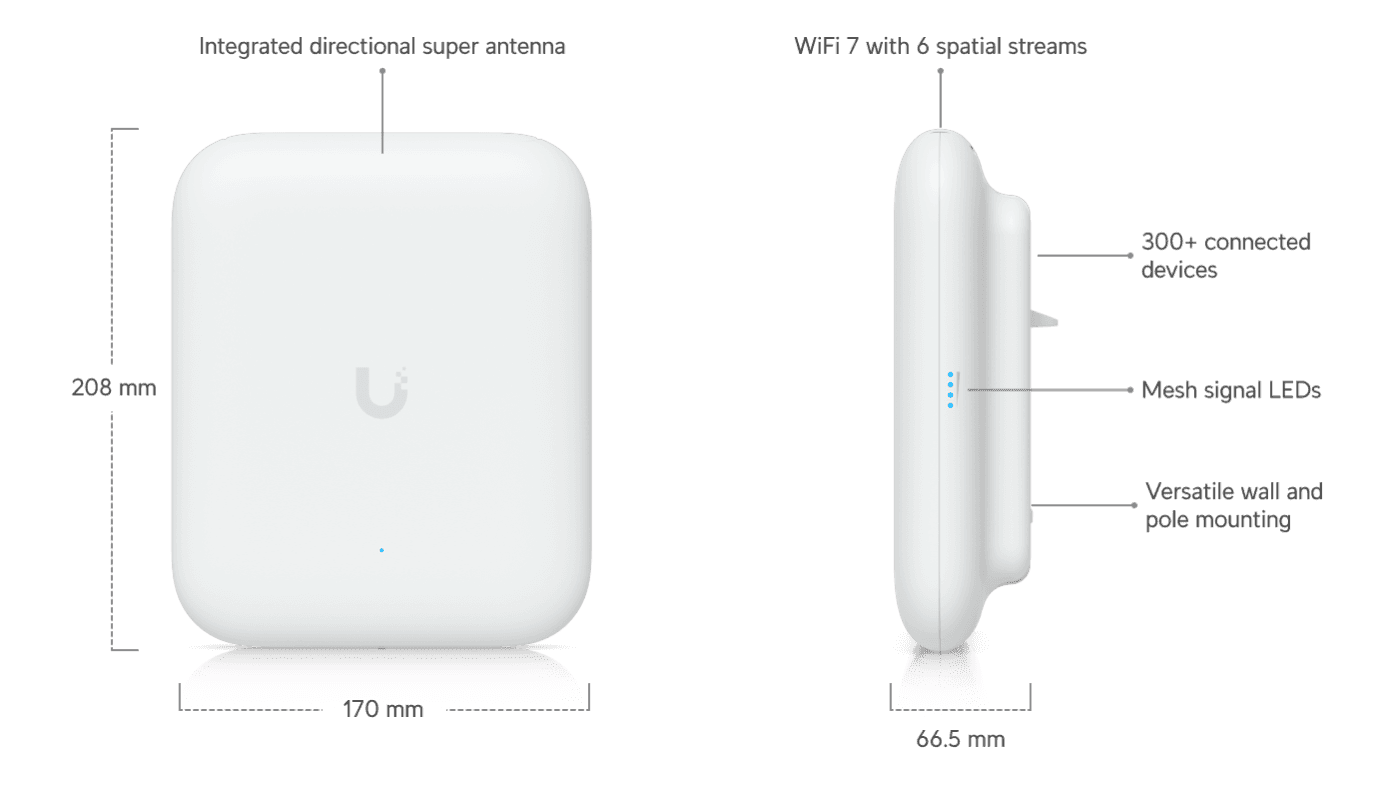

Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting Locations
Wall, pole
Mounting Plate
Included mount
Weatherproofing
IPX6 IP67 (With cable-gland door kit)
Power Method
PoE+
Performance
MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
Directional internal: 11 dBi External omni: 8 dBi
2.4 GHz
Directional internal: 8 dBi External omni: 6 dBi
Max. TX Power
5 GHz
29 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
21W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter
1–2.5″ (25–63.5 mm)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
UV-stabilized polycarbonate
LEDs
System
(1) Power: White/Blue (4) Mesh signal: Blue
Certifications
CE
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
