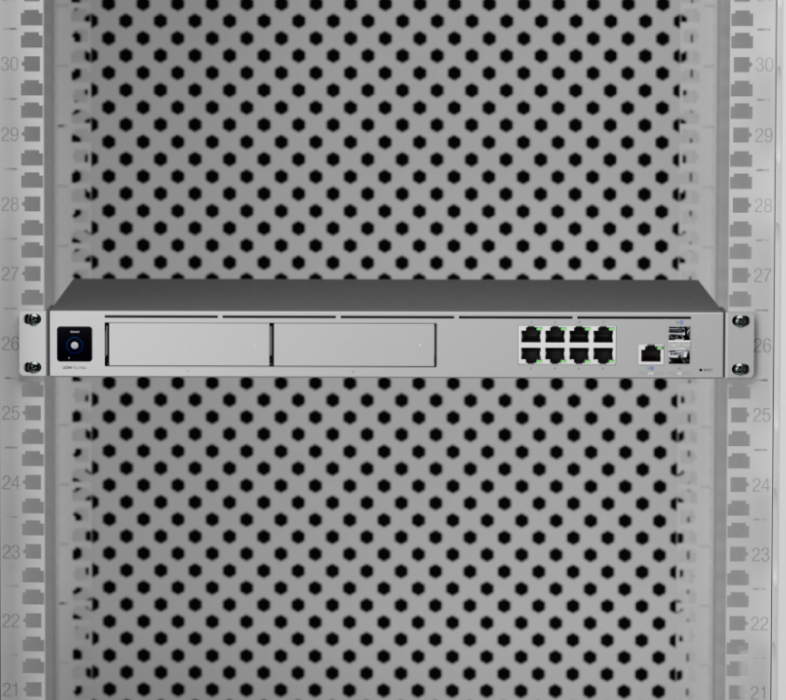

Dream Machine Pro Max
UDM-Pro-Max
10 Gbps Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+*, (8) GbE RJ45 LAN ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5″ NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
1.3″ touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) |
| Weight | 4.7 kg (10.4 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System memory | 8 GB DDR4 |
| On-board storage | 32 GB eMMC Integrated 128 GB SSD |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (8) GbE RJ45 ports (1) 10G SFP+ portWAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port |
| IDS/IPS throughput | 5 Gbps* *Measured with iPerf3. |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input,12V DC, 4.6A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -10° to 40° C (14° to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| SFP+ | Green: link/activity |
| HDD | White: disk activity Amber: disk error |
| RPS | Blue: ready |
Capacity Calculator
| Gewicht | 5,9 kg |
|---|---|
| Afmetingen | 52 × 42 × 12 cm |
