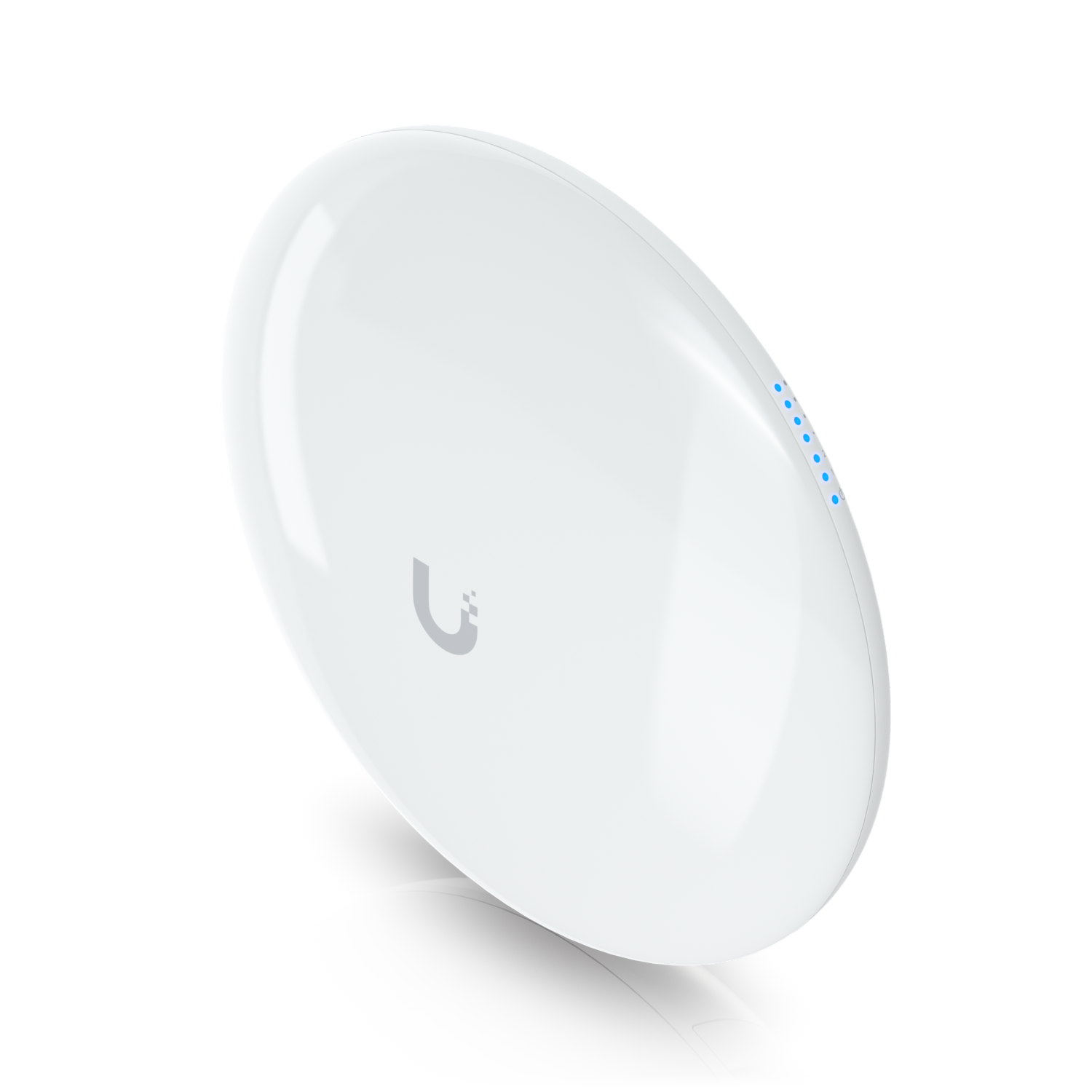

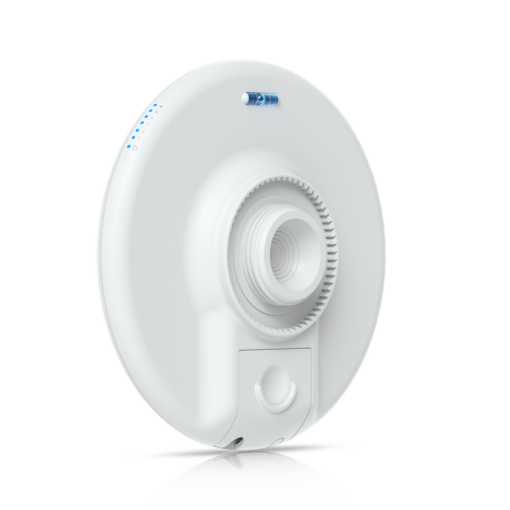

Device Bridge Pro
UDB-Pro
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough
.
Overview
Dimensions
Ø189.5 x 64.3 mm (Ø7.4 x 2.5″)
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
5 km (3.1 mi)
Mounting Locations
Wall, pole
Weatherproofing
IPX6
Power Method
PoE PoE+ (Required for PoE output)
Performance
MIMO
5 GHz
2 x 2
Max. Data Rate
5 GHz
867 Mbps (BW80)
Antenna Gain
5 GHz
19 dBi
Max. TX Power
5 GHz
25 dBm
Max. Conducted TX Power
25 dBm (Combined)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
9W
Supported Voltage Range
42.5—57V DC
Networking Interface
(2) GbE RJ45 ports
Antennas
Internal
Management
(1) PoE in (PoE output not used) (1) Passive PoE output
Wind Loading
69 N at 200 km/h (15.5 lbf at 125 mph)
Weight
Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb)
Mount Material
UV-stabilized polycarbonate, stainless steel
Enclosure Material
UV-resistant polycarbonate
Pole Mount Diameter
0.8–2.1″ (20–53.1 mm)
Button
(1) Factory-reset
LEDs
System
Power, Ethernet, (4) signal strength
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA: U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz Worldwide: 5150 – 5875 MHz
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
| Gewicht | 0,515 kg |
|---|
