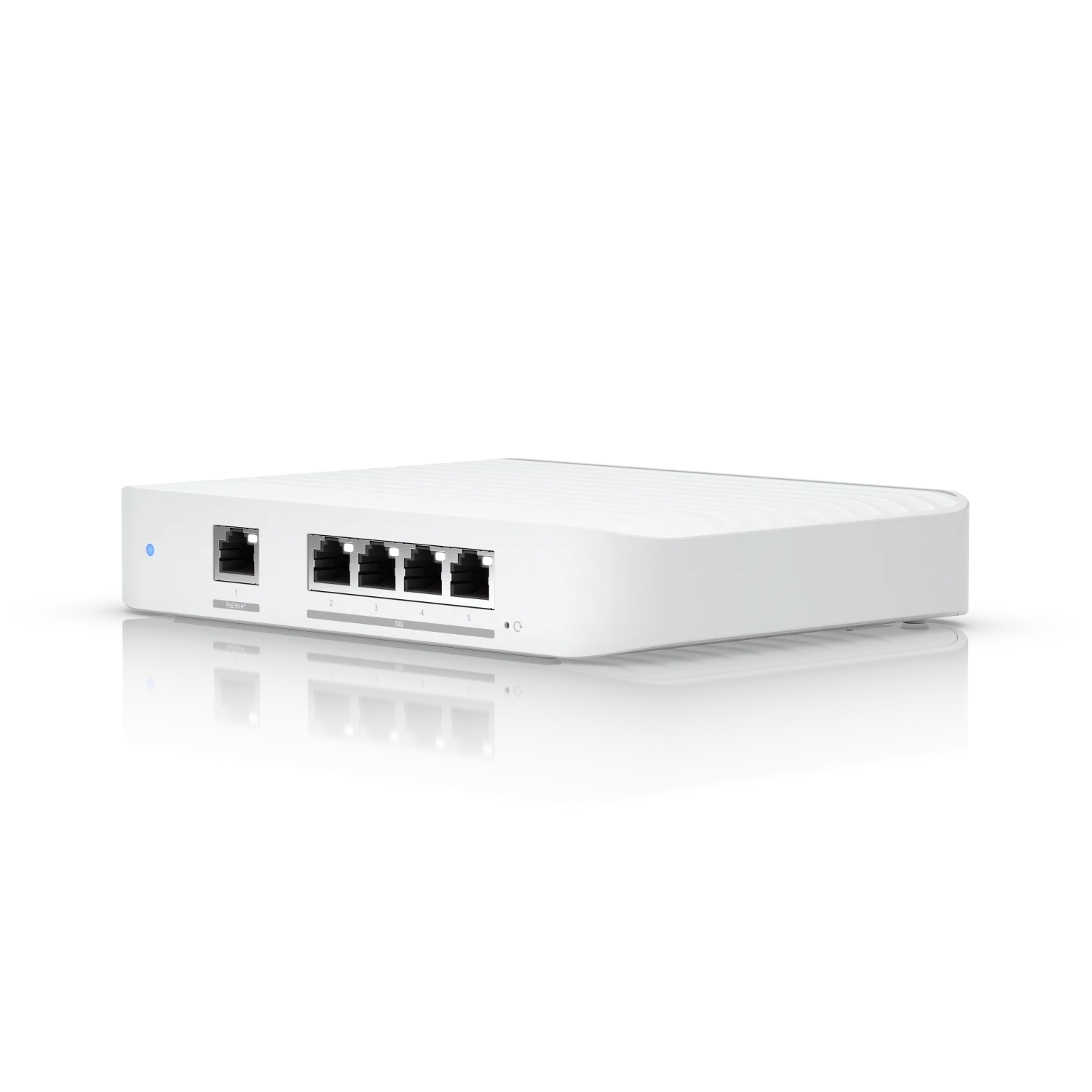

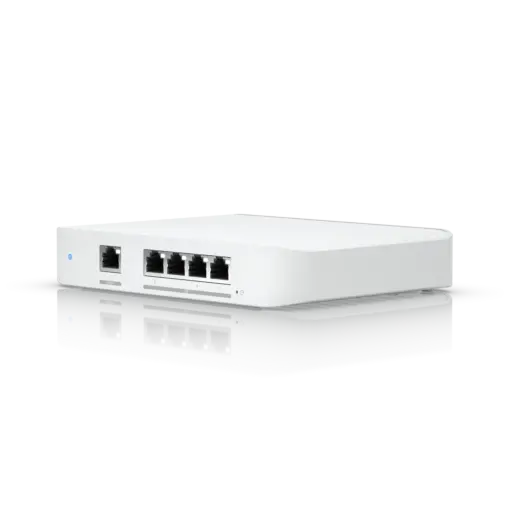

Switch Flex XG
SKU: USW-Flex-XG-EU
Datasheet

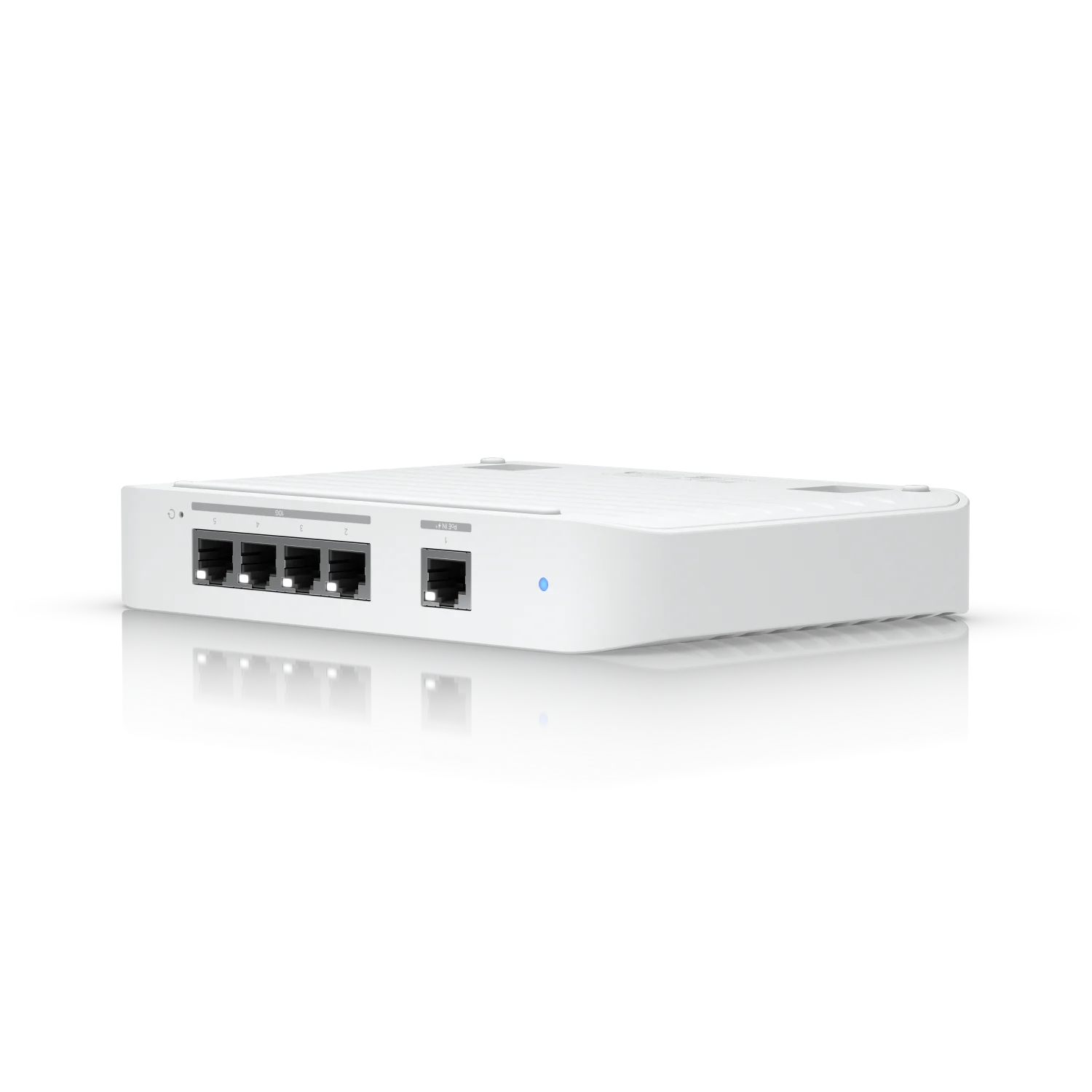

Installation GuideA compact, five-port, Layer 2 switch that supports 10GbE speeds and can be powered with PoE or a 5V USB-C adapter*.
Features:
-
-

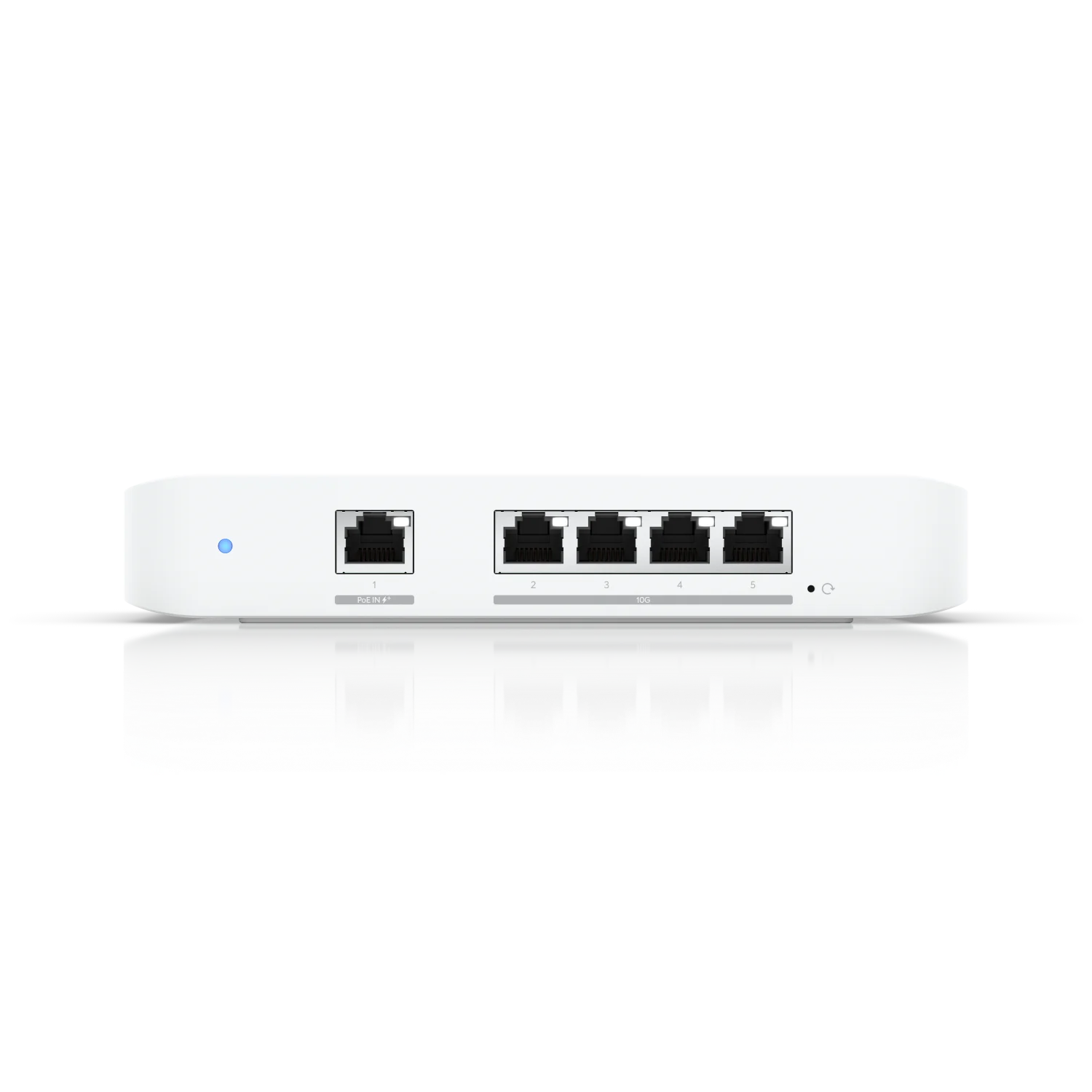

- (1) GbE, PoE+ RJ45 input
- (4) 10GbE RJ45 ports
-
Managed with the UniFi Network application: Version 6.1.67 and later

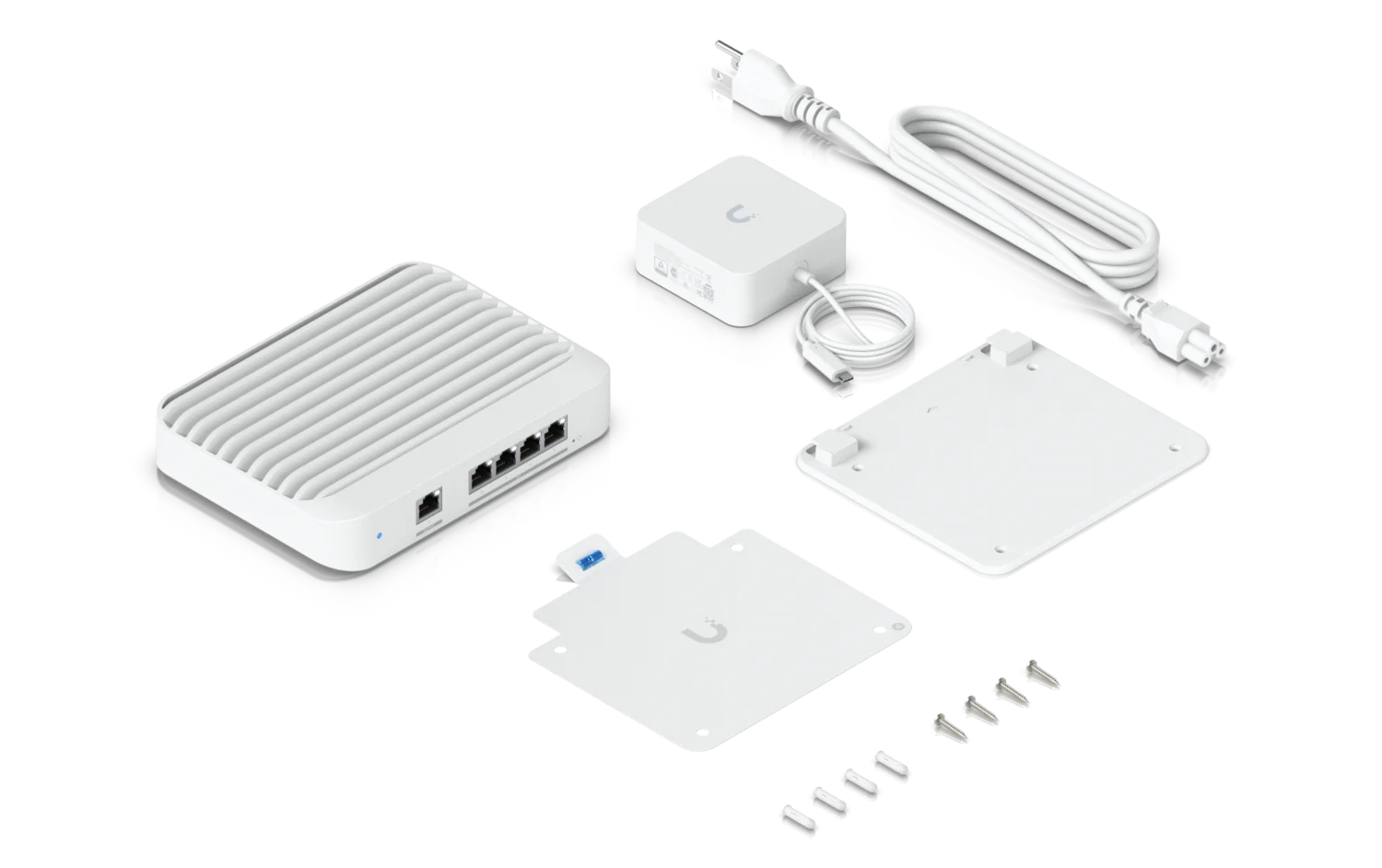

*Only single-unit packages include the 5V, 5A USB-C power adapter.
- Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
PRODUCT SUMMARY

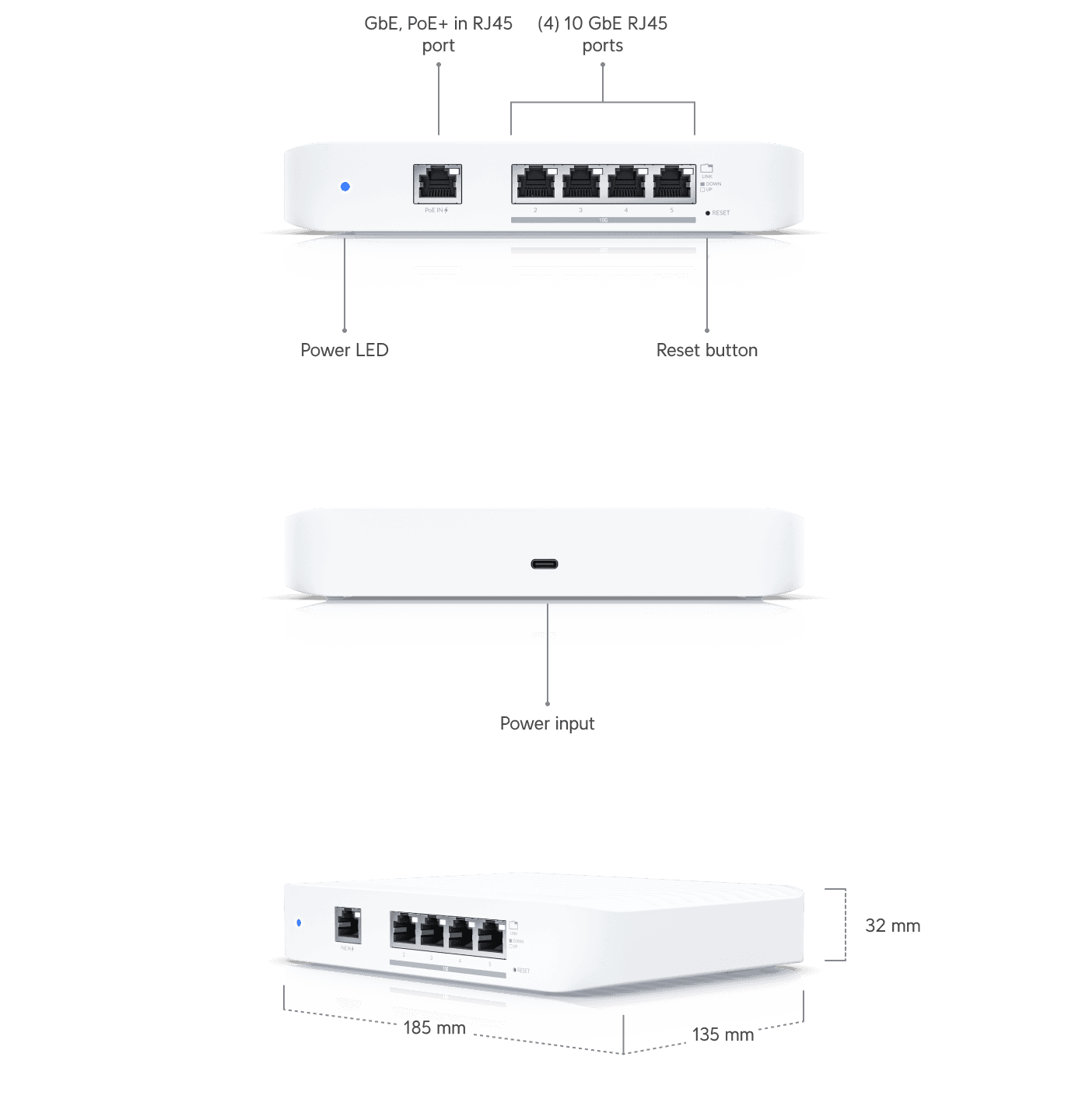

| Mechanical | |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.31 x 7.28 x 1.27″) |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Networking interface | (1) GbE, PoE+ RJ45 port (4) 10 GbE RJ45 ports |
| Management interface | Ethernet In-Band |
| Total non-blocking throughput | 41 Gbps |
| Switching capacity | 82 Gbps |
| Forwarding rate | 61.012 Mpps |
| Max. power consumption | 25W |

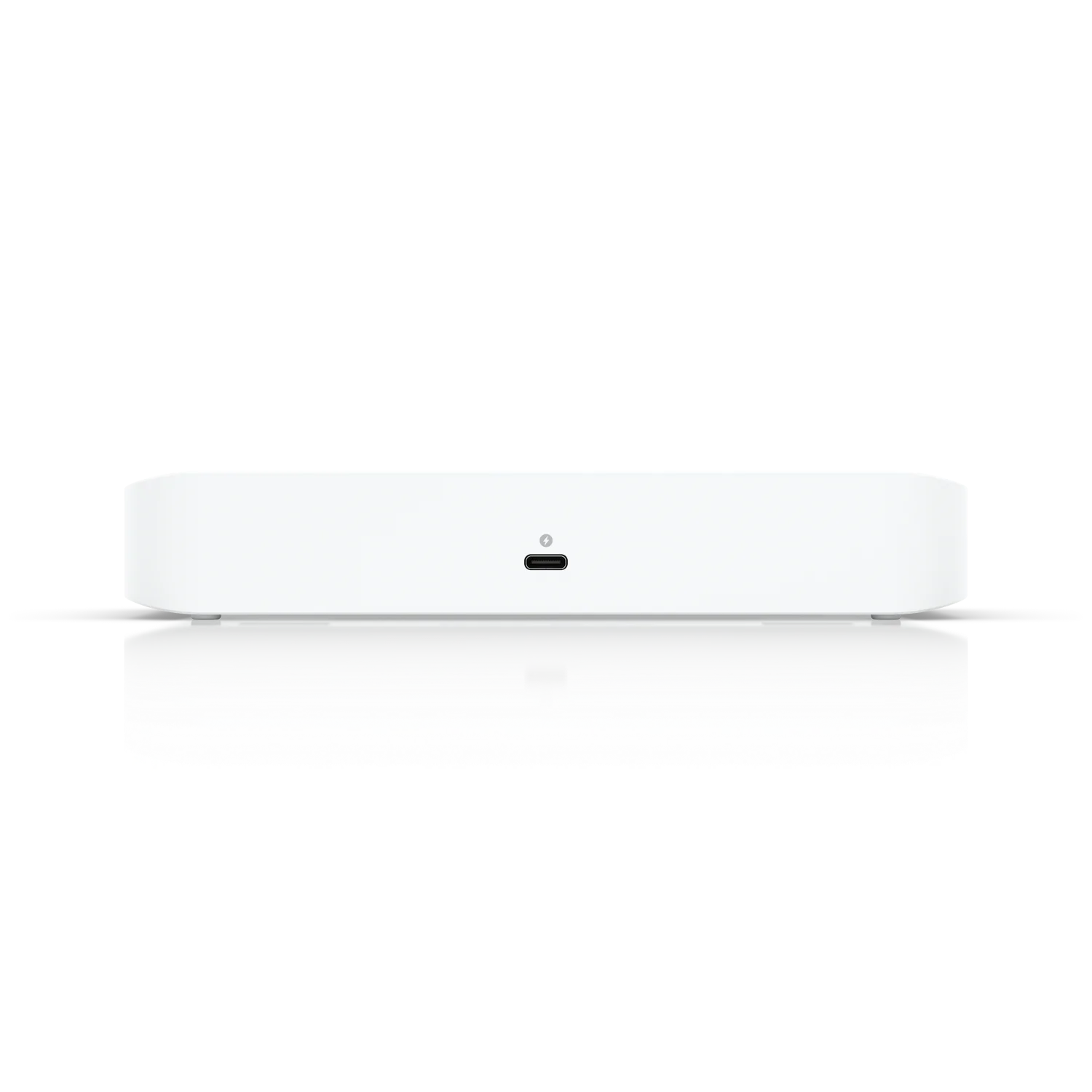

| Power method | (1) PoE+, 50—57V DC, 25W (1) USB Type-C, 5V DC, 5A |
| Power supply | PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 😎 AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included) |
| Supported voltage range | 90—264V AC (Adapter) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power, blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | White: link/activity |
