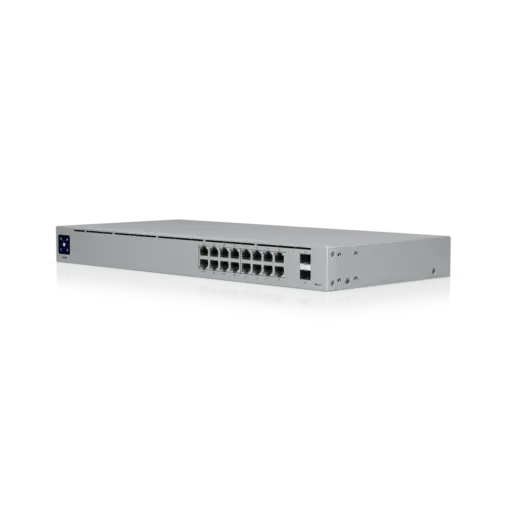

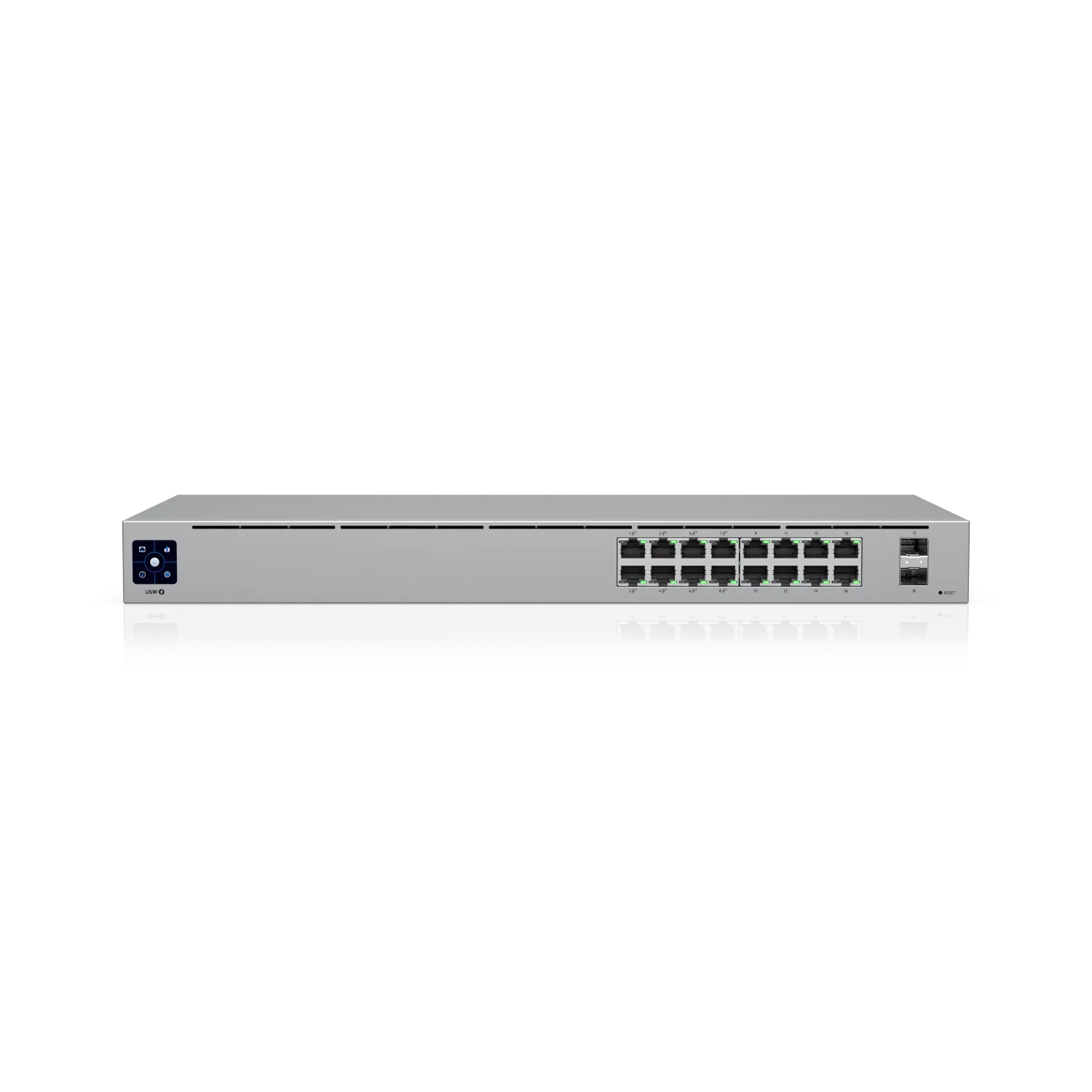

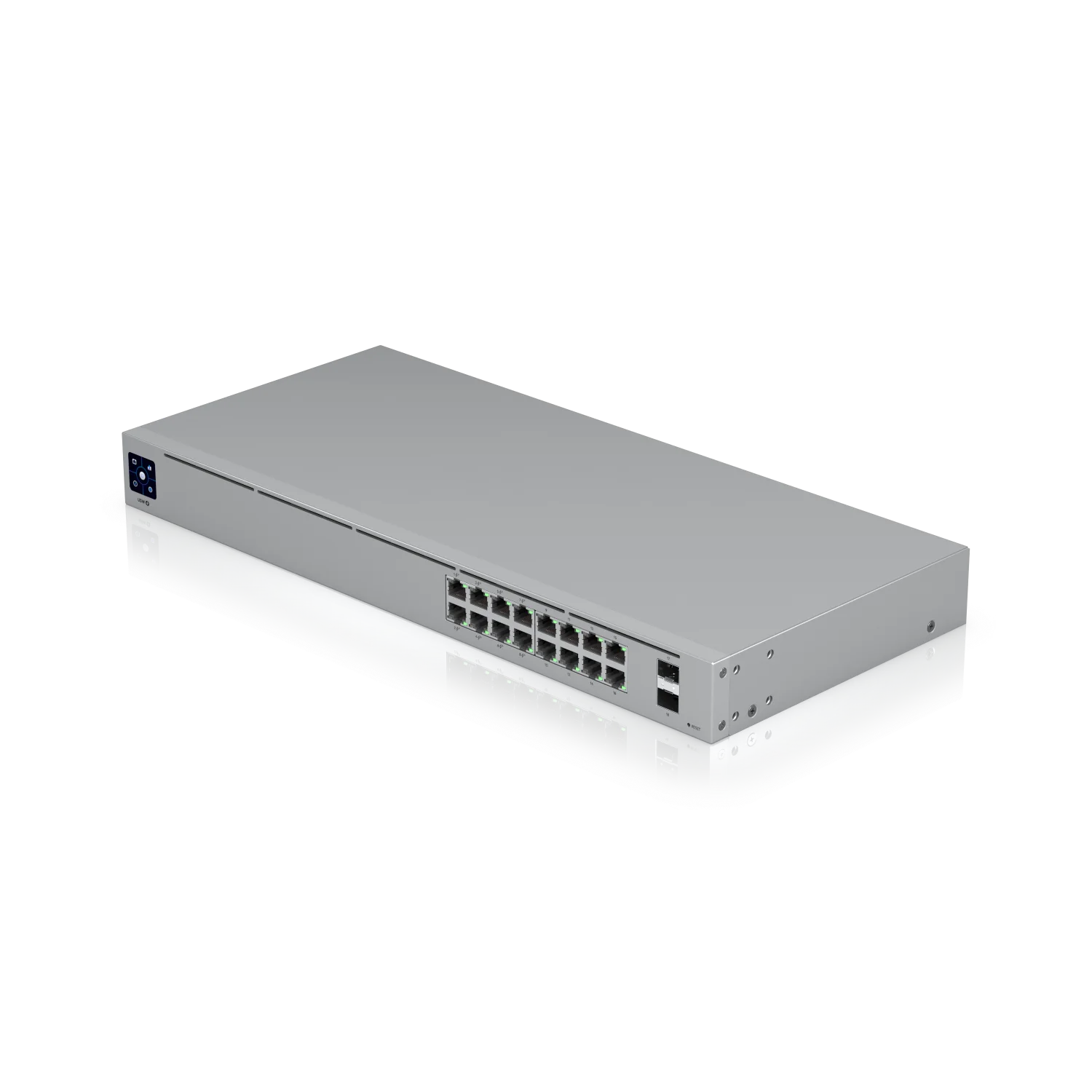

16-port, Layer 2 PoE switch with a silent, fanless cooling system.

Features:

• • • (8) GbE, PoE+ RJ45 ports
    • (8) GbE RJ45 ports
    • (2) 1G SFP ports
    • 42W total PoE availability
    • 1.3″ LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 7.2.94 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical

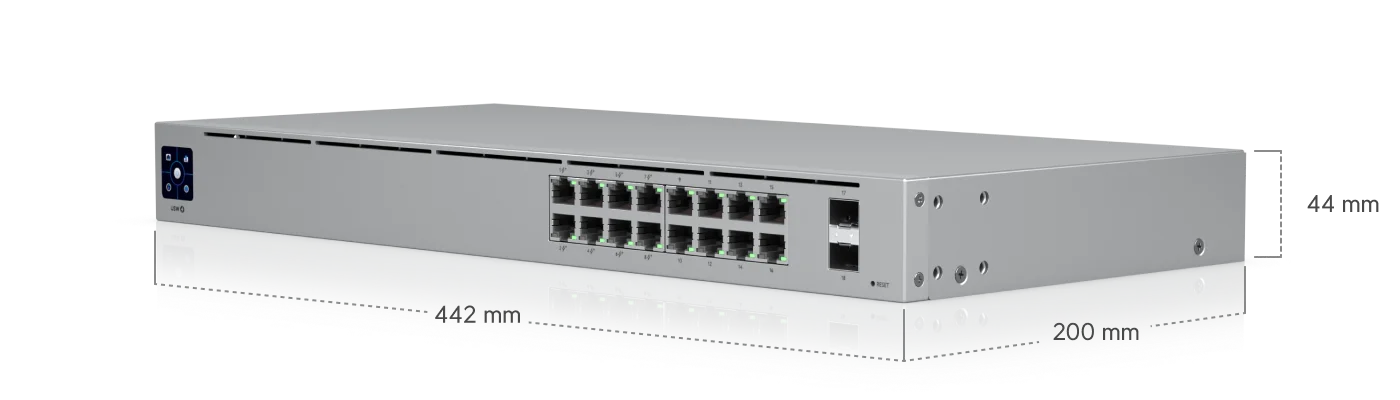

Dimensions	424.4 x 200 x 43.7 mm (16.7 x 7.9 x 1.7″)

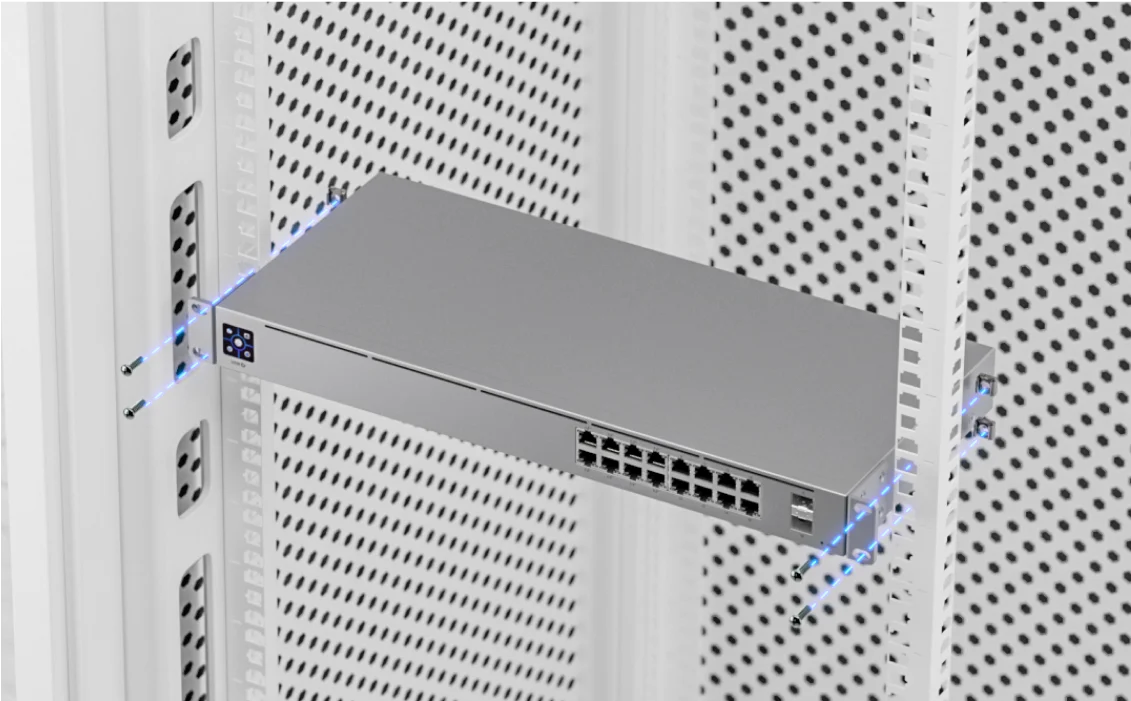

Weight	Without mounting brackets: 2.8 kg (6.17 lb) With mounting brackets: 2.9 kg (6.37 lb)
Enclosure material	SGCC steel
Hardware
Networking interface	(16) 10/100/1,000 RJ45 ports (2) 1G SFP Ethernet ports
Management interface	Ethernet In-Band
Total non-blocking throughput	18 Gbps
Switching capacity	36 Gbps
Forwarding rate	26.78 Mpps

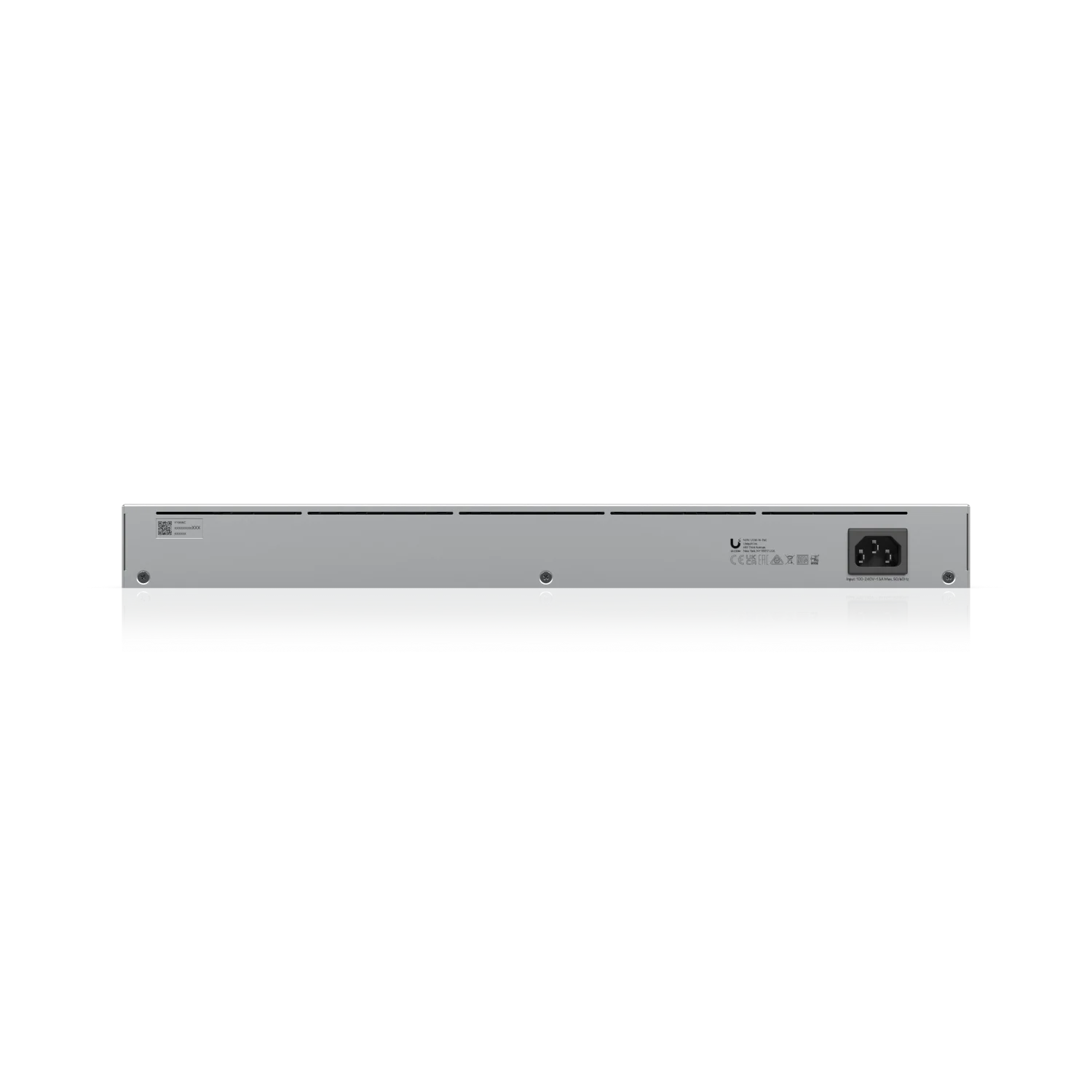

Power method	100—240V AC/50-60 Hz, universal input
Power supply	AC/DC, internal, 60W
Supported voltage range	100—240V AC
Max. power consumption	18W (Excluding PoE output)
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
PoE
Total available PoE	42W
PoE interface Ports 1-8	PoE/PoE+ (pins 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE PoE+	32W
Voltage range PoE mode	44—57V
Voltage range PoE+ mode	50—57V
