Flexible large-scale storage for small and medium-sized businesses.
Built for high-performance mass storage

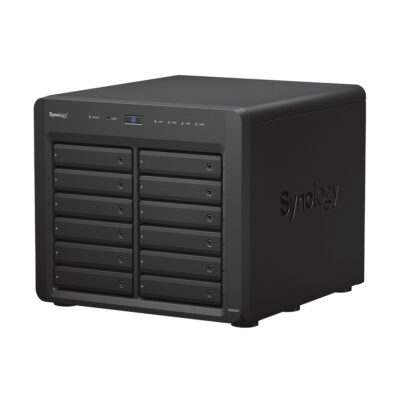

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.
AMD Ryzen™ Quad-core 2.2 GHz
2,201/1,383 MB/s sequential read read/write throughput1
Easily add 10/25GbE and NVMe SSD cache
Expand to 24 bays with one DX1222 expansion unit
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.2
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.
Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.3
Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.
Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.
Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more
Implement a 3-2-1 backup strategy
Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions. Learn more
Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning. Learn more
Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds. Learn more
Ready for remote work
Empower your workforce to collaborate, share files, and communicate from anywhere. Learn more about Productivity Solutions
Access and collaborate on team documents via web portal, desktop clients, and mobile apps with powerful cross-site sync and file management. Learn more
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity. Learn more
Instantly message colleagues and organize conversations to achieve clear and cohesive communication. Learn more
Certified virtual machine storage
DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.
Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI. Learn more
Works best with Synology drives
Powered by Synology DiskStation Manager
Keep your business safe from data loss and minimize service downtime.
Manage user accounts and devices throughout your business with powerful directory services.
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Manage, sync, and share files from multiple devices through a centralized platform.
Manage the health of your deployments and centrally administer updates with ease.
Protect your home or business with intelligent monitoring and video management tools.
- 1Status indicator
- 2Alert indicator
- 3Power button
- 4LAN indicator
- 5Drive status indicator
- 6Drive tray
- 7Drive tray lock
- 8Power port
- 9System fan
- 10PCIe expansion slot
- 11Reset button
- 12Reset button
- 13Console port
- 14Expansion port
- 151GbE RJ-45 port
|CPU Model||AMD Ryzen V1500B|
|CPU Frequency||4-core 2.2 GHz|
|Hardware Encryption Engine (AES-NI)|
|System Memory||4 GB DDR4 ECC SODIMM|
|Memory Module Pre-installed||4 GB (4 GB x 1)|
|Total Memory Slots||2|
|Maximum Memory Capacity||32 GB (16 GB x 2)|
|Maximum Drive Bays with Expansion Unit||24 (DX1222 x 1)|
|Compatible Drive Type* (See all supported drives)||
|Maximum Single Volume Size*||108 TB|
|Hot Swappable Drive|
|RJ-45 1GbE LAN Port*||4 (with Link Aggregation / Failover support)|
|USB 3.2 Gen 1 Port*||2|
|PCIe Expansion||1 x Gen3 x8 slot (x4 link)|
|Notes||exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.|
|Size (Height x Width x Depth)||270 mm x 300 mm x 340 mm|
|System Fan||120 mm x 120 mm x 2 pcs|
|Fan Speed Mode||
|Easy Replacement System Fan|
|Noise Level*||25 dB(A)|
|Scheduled Power On / Off|
|Wake on LAN / WAN|
|Power Supply Unit / Adapter||550 W|
|AC Input Power Voltage||100 V to 240 V AC|
|Power Frequency||50/60 Hz, Single Phase|
|Power Consumption*||73.11 W (Access)
32.12 W (HDD Hibernation)
|British Thermal Unit||249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)
|Operating Temperature||0°C to 40°C (32°F to 104°F)|
|Storage Temperature||-20°C to 60°C (-5°F to 140°F)|
|Relative Humidity||5% to 95% RH|
|3-year hardware warranty, extendable to 5-year coverage – EW202|
|Notes||The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)|
|Notes||All memory modules will operate at the maximum frequency specified by the CPU manufacturer.|
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
