Ubiquiti UniFi Access Gate Hub

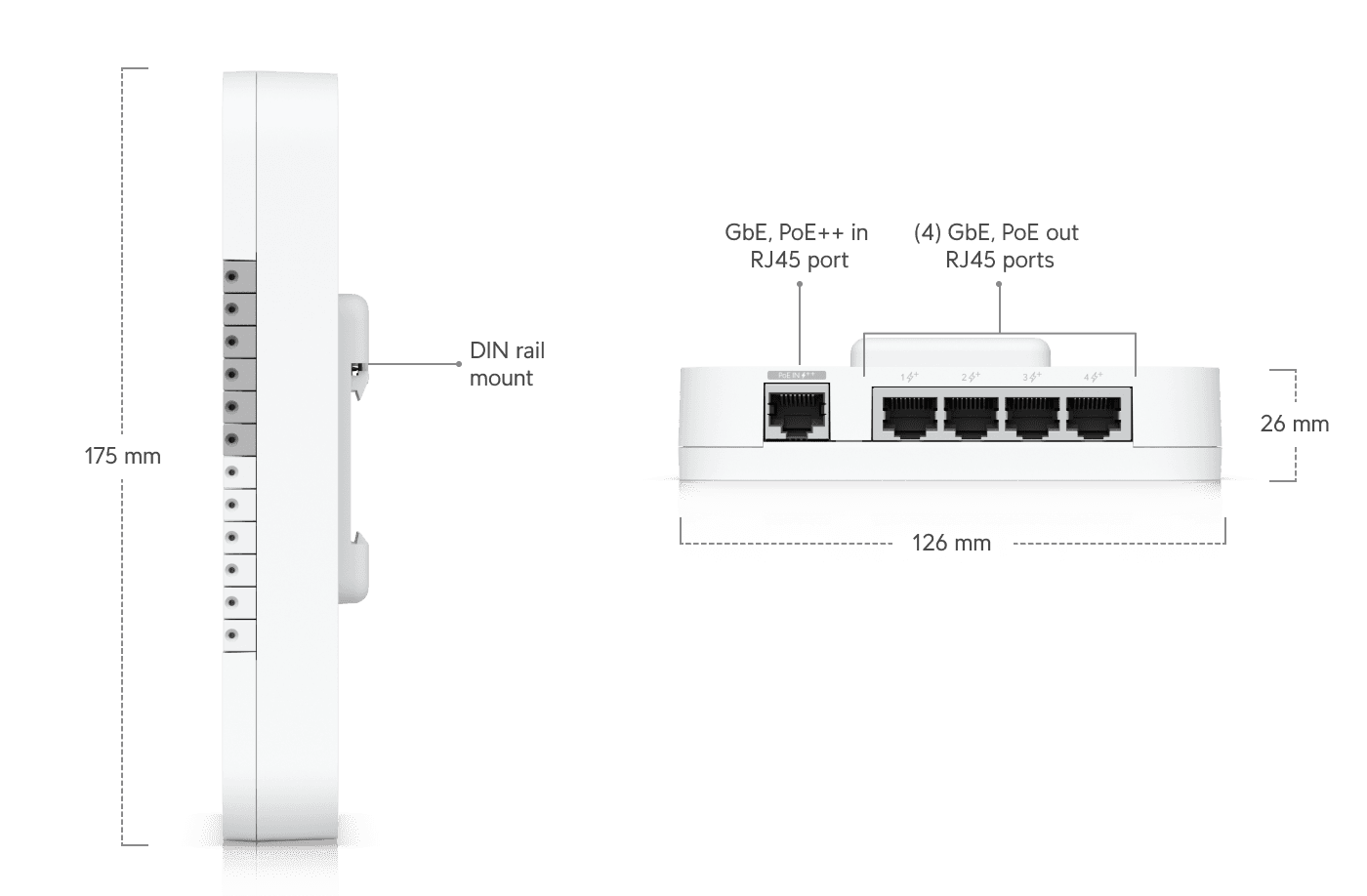

175 x 126 x 26 mm (6.9 x 5 x 1″)

✓

1 gate, 1 side door

6,000

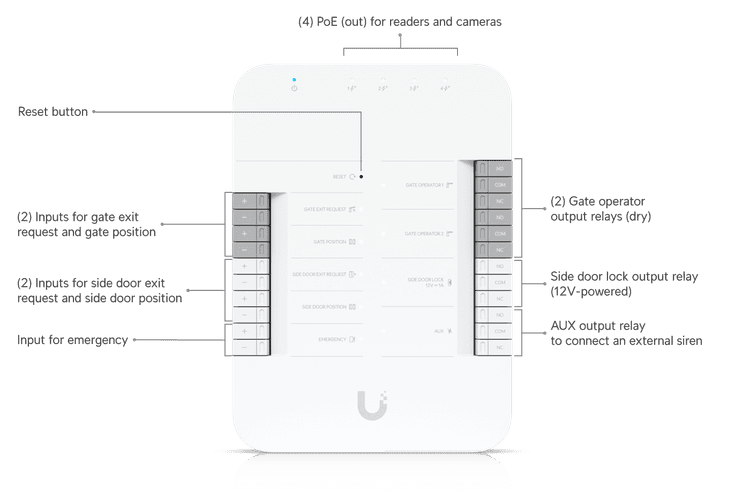

(1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

✓

460 g (1 lb)

Polycarbonate

Gate exit request, gate position, side door exit request, side door position, emergency

(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A

Side door lock: 12V DC, up to 1A

Indoor only: device itself Outdoor: with waterproof junction box

-30 to 60° C (-22 to 140° F)

5 to 90% noncondensing

(5) 10/100/1000 Base-T

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 55W aggregated)

22W (Without PoE output) 60W (With PoE output)

W/B Learn More

(1) Factory-reset

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: I

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
