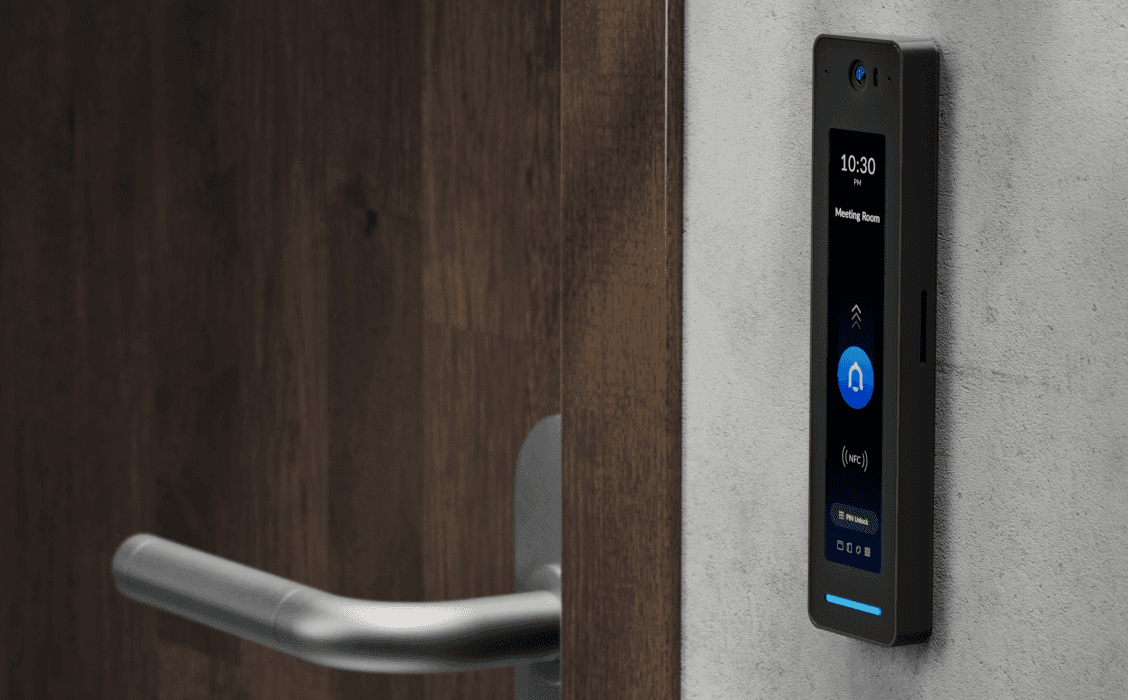

G3 Reader Pro
UA-G3-Pro-B
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Note. 10 free 1-year Touch Passes included. Click to learn more.
Overview
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
Integrated Camera
Yes
NFC Card & Keyfob Access
Yes
PIN Access
Yes
Apple/Google Wallet
Yes
Mobile Unlock
Yes
Two-Way Intercom & Doorbell Access
Yes
NDAA Compliant
Yes
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weatherproofing
IP55
Mechanical
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy

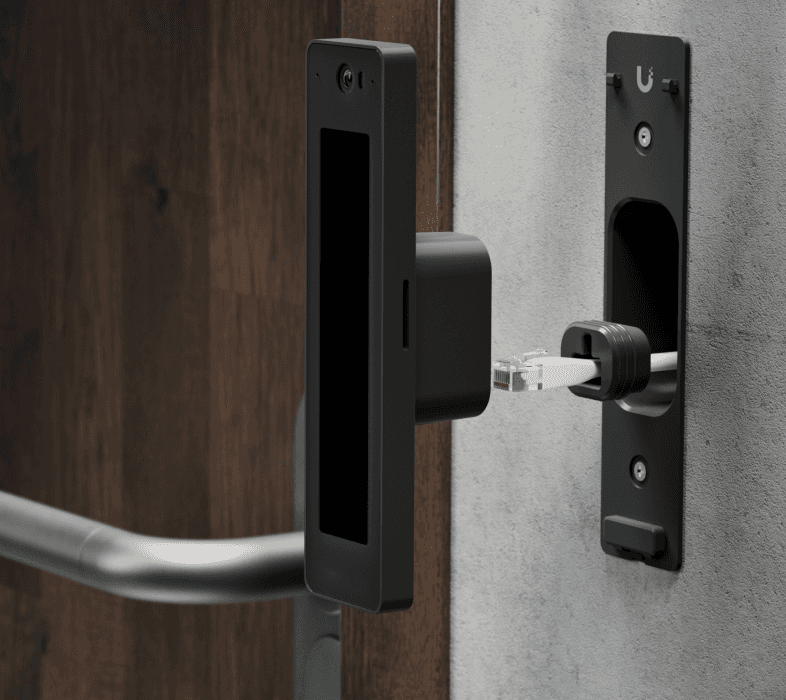

Mounting
Wall, gang-box mount (Included) Angle mount, junction box (Optional)
Hardware
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Display
120 mm (4.7″) diagonal
Touch Screen Technology
Capacitive touch
Display Luminance
480 nits (Typical)
Screen Orientation
Portrait
Resolution
1280 x 286 px
Microphone
Yes
Speaker
Yes
LEDs
R/G/B/W/Amber Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18”)
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Pro-W/UA-G3-Pro-B, V01
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
