Ubiquiti UniFi Mobile Router Industrial
€ 226,95
Ubiquiti UniFi Mobile Router Industrial – LTE category 4 mobile WiFi router – (2) GbE ports with (1) PoE output
10 op voorraad
Site-to-site VPN and VPN client routing
(2) GbE ports with (1) PoE output*
Powered using PoE, USB Type-C, or 4-pin DC power socket
Outdoor GPS location tracking

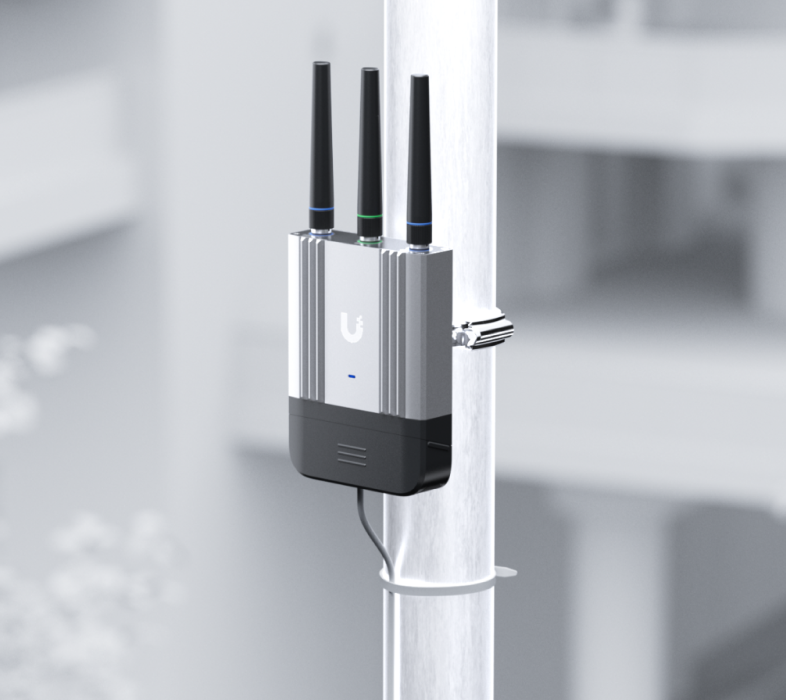

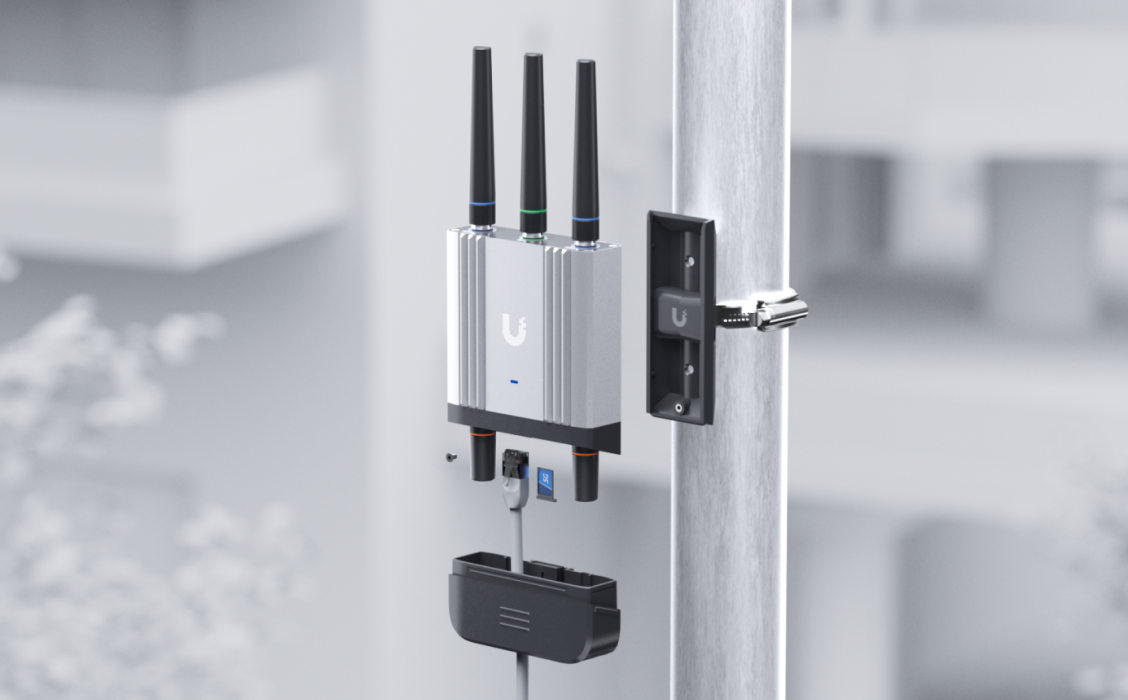

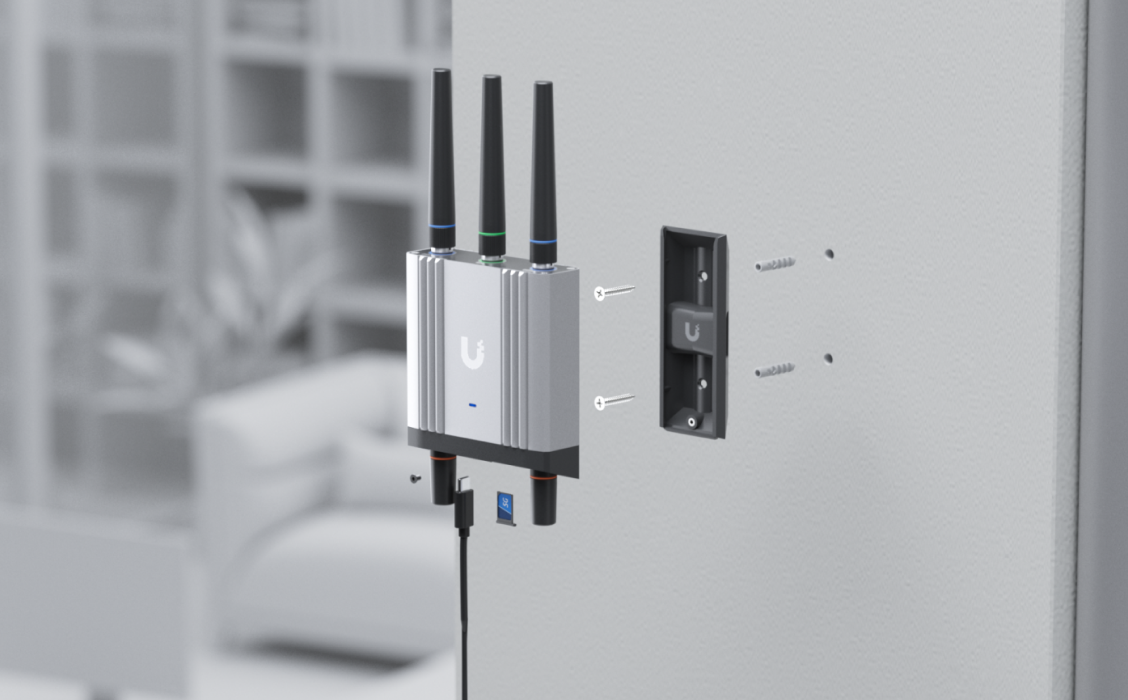

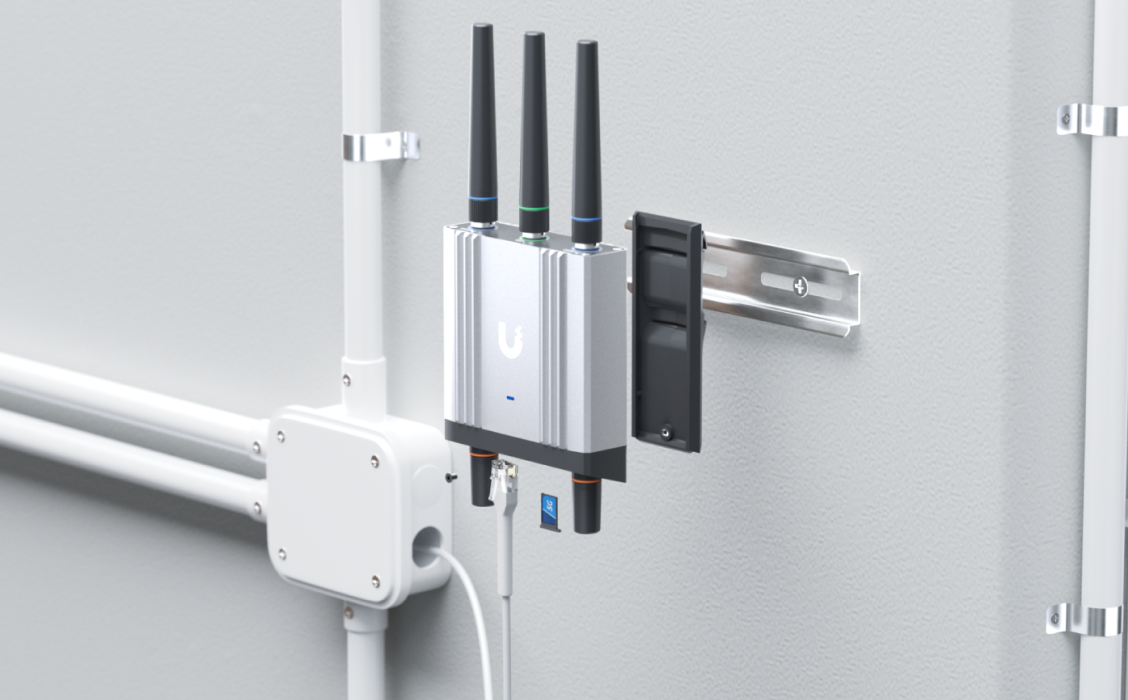

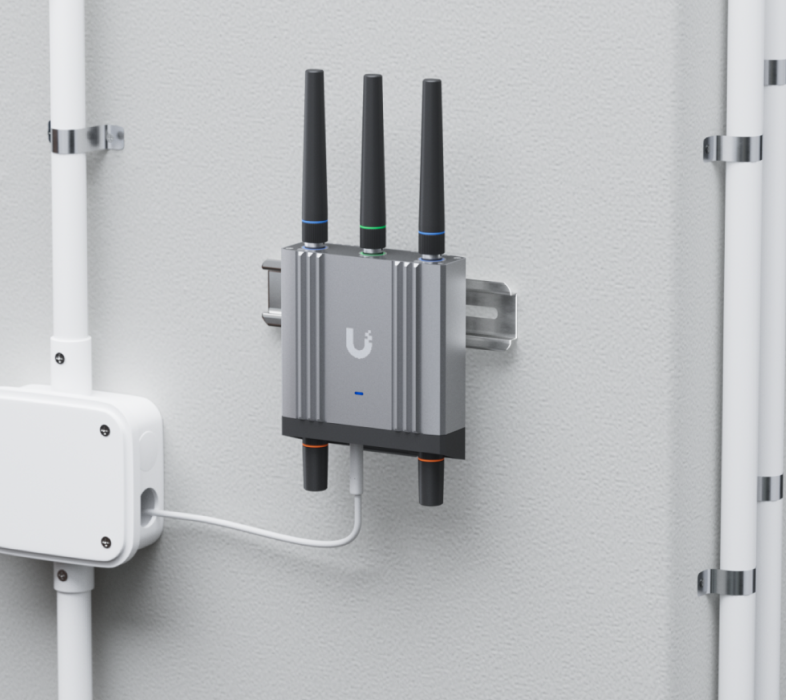

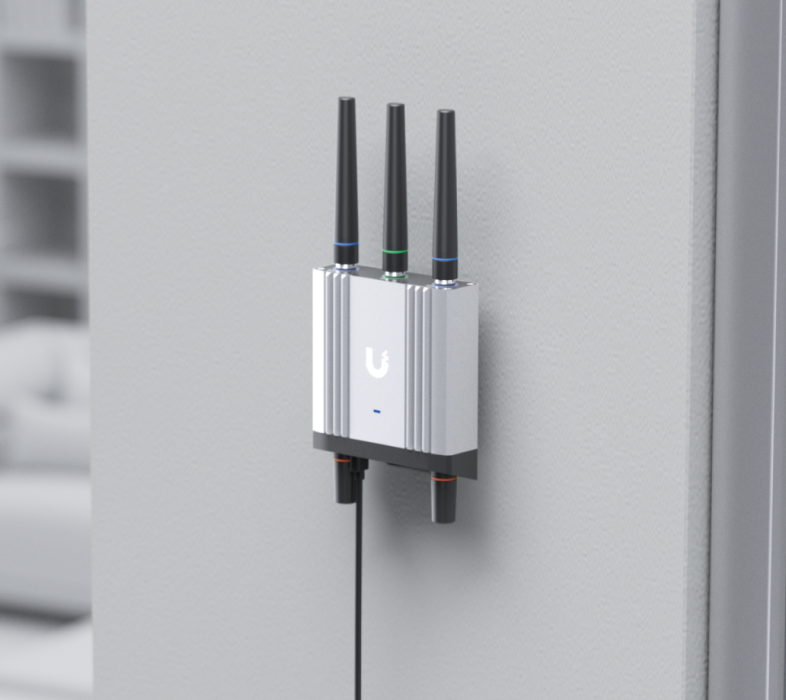

Flexible wall, pole, and DIN rail mounting
Weatherproof (outdoor exposed) with the included cover
Optional Mobility Cloud subscription**
*PoE+ input required for PoE passthrough.
**Offers secure remote access and full management via the UniFi Mobility Manager at mobility.ui.com for €2 / £2 per month or €19 / £19 per year per Mobile Router. 30-day free trial included. Core management is free and always available via local connection.
| Mechanical | |
|---|---|

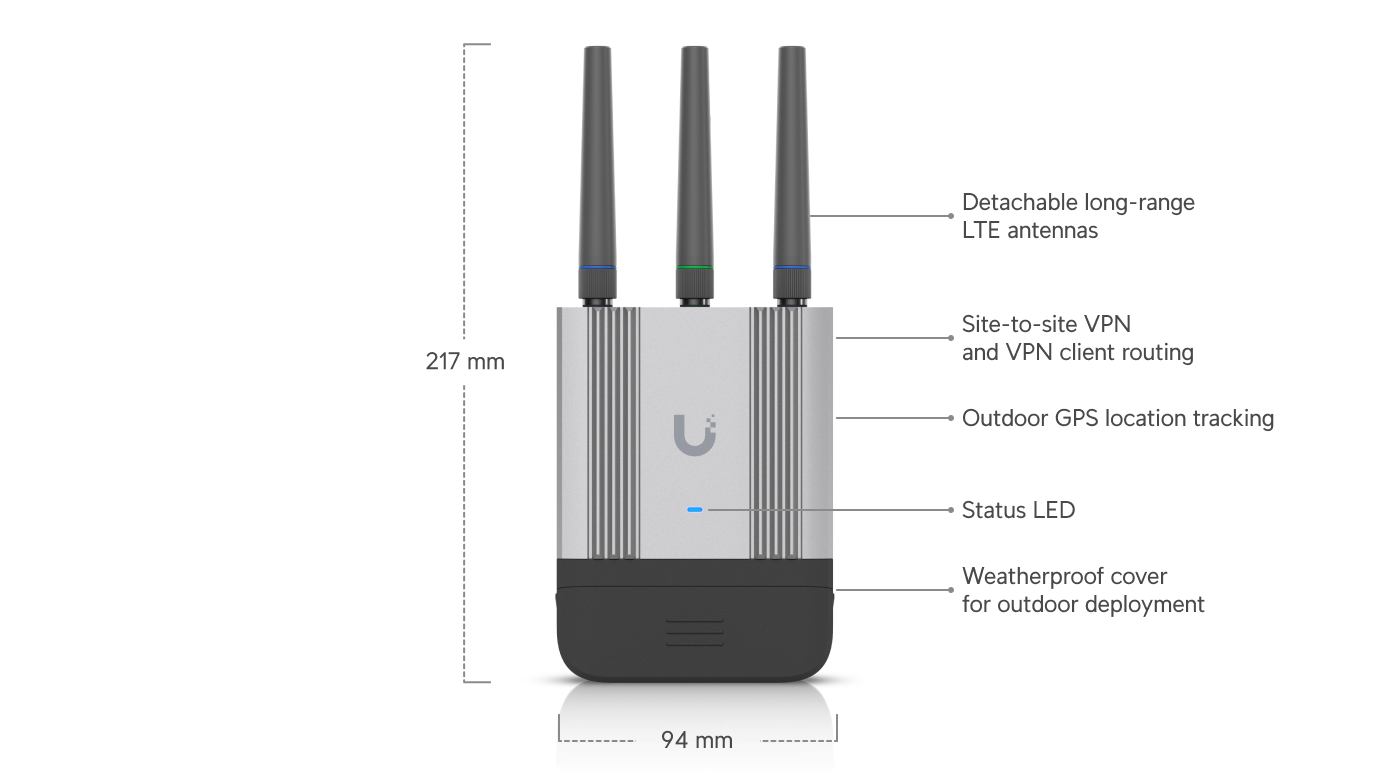

| Dimensions | Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3″) With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3″) With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3″) |
| Weight | Device: 360 g (12.7 oz) Device with outdoor cover: 395 g (13.9 oz) DIN rail/wall mounts: 25 g (0.9 oz) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Wall/pole mount: polycarbonate DIN rail mount: polycarbonate |
| Pole mount diameter | 1–2″ on pipe outer diameter |
| Wind loading | 38.8 N at 200 km/h (8.7 lbf at 125 mph) |
| Weatherproofing | Device with outdoor cover: IP66 |
| Hardware | |
| Management interface | Ethernet WiFi |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio WiFi 4 |
| PoE interface | (1) PoE input (1) PoE output* (Max. 10W) *Requires a PoE+ switch. |
| Power supply | UniFi PoE switch (48—54V DC) USB Type-C (5V DC) 4-pin* ATX DC power socket (9—30V DC) *Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout. |
| Max. power consumption | 12.5W |
| SIM | nano-SIM (4FF) |
| LTE bands | B1, B3, B7, B8, B20, B28 |
| 3G bands | B1, B8 |
| LTE throughput speed* | Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location. |
| WiFi standards | 802.11 b/g/n, WiFi 2.4G, 20/40 MHz |
| Max. WiFi TX power | 22 dBm |
| WiFi MIMO | 2 x 2 |
| GPS | Yes |

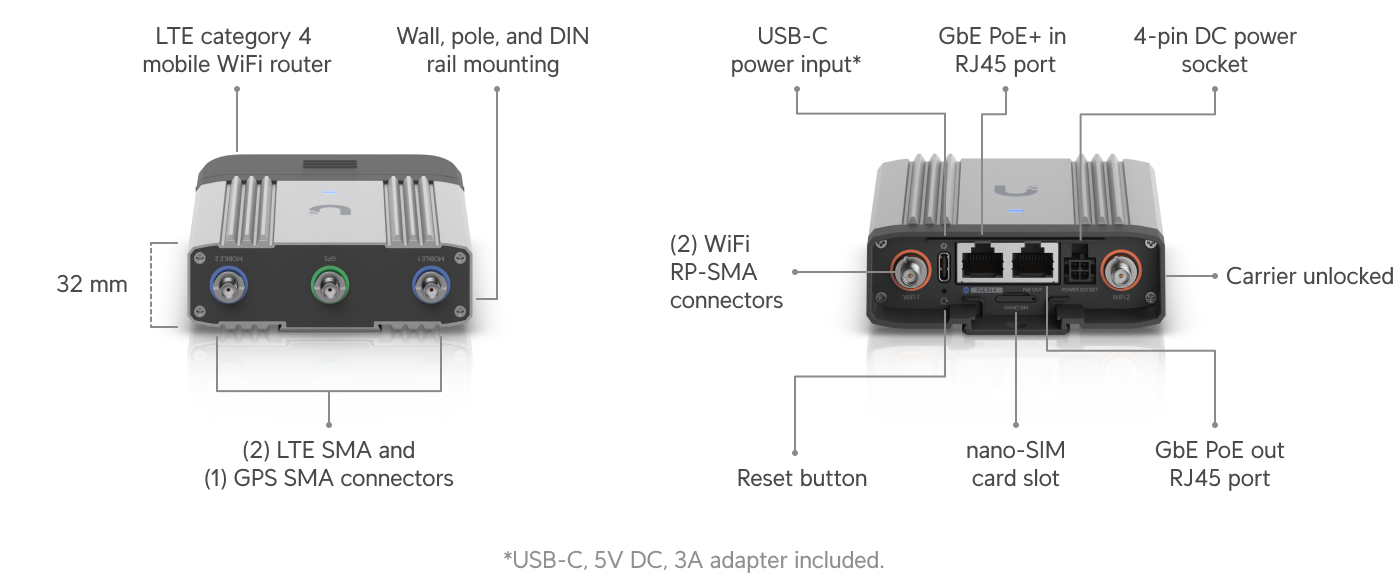

| Antenna SMA ports | (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx (1) Mobile 2: SMA female connector, supports 1Rx only (1) GPS: SMA female connector (2) WiFi: RP-SMA female connectors Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing. |
| External antennas | (2) Mobile/LTE antennas with SMA male connectors (1) GPS antenna with SMA male connector (2) WiFi antennas with RP-SMA male connectors |
| LED | Status: blue/white |
| Button | Factory reset |
| Mounting | DIN rail/wall/pole mount (Included) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, GCF, Wi-Fi Alliance® |
| Supported WiFi Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 – MCS7, HT 20/40) |
| Gewicht | 0,400 kg |
|---|
