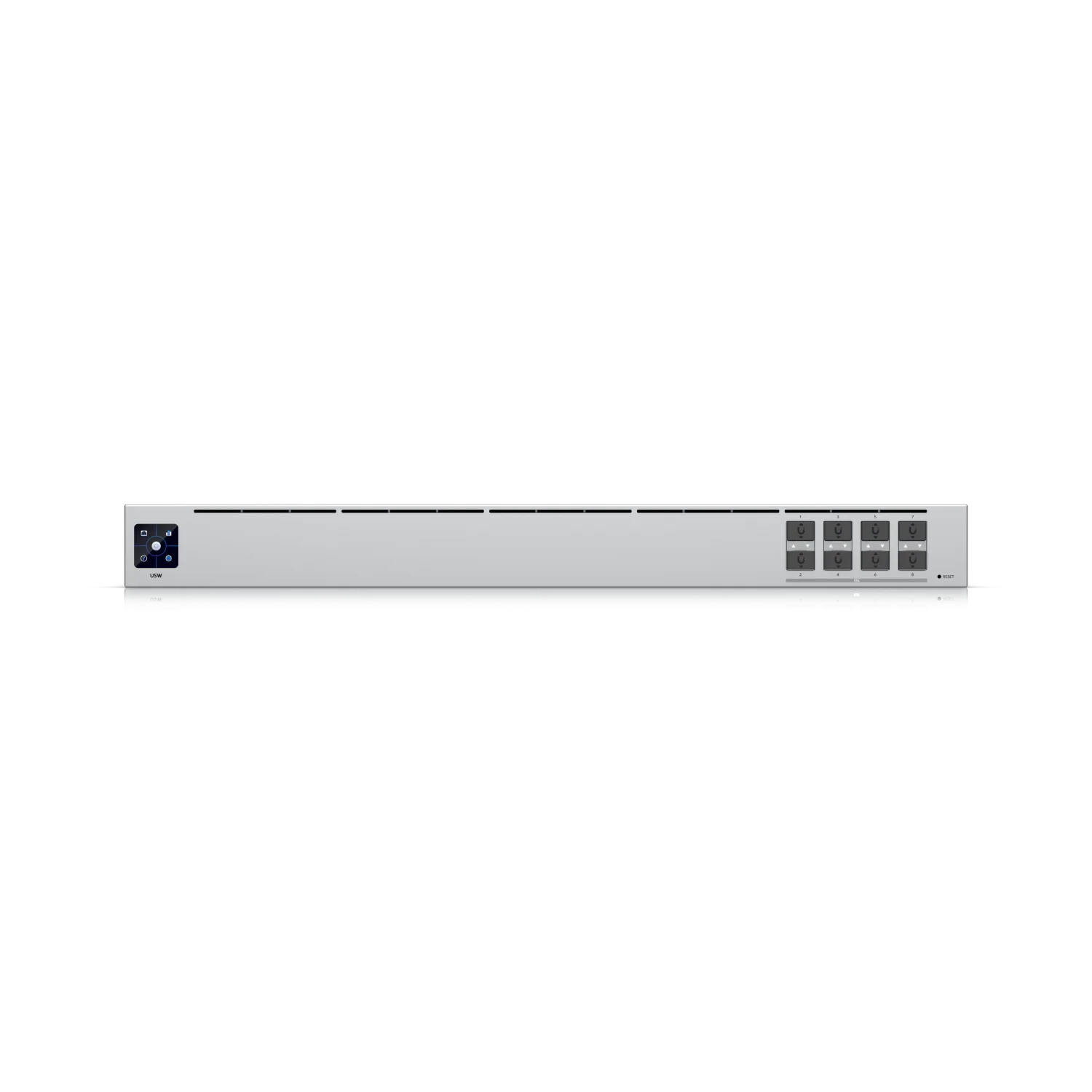

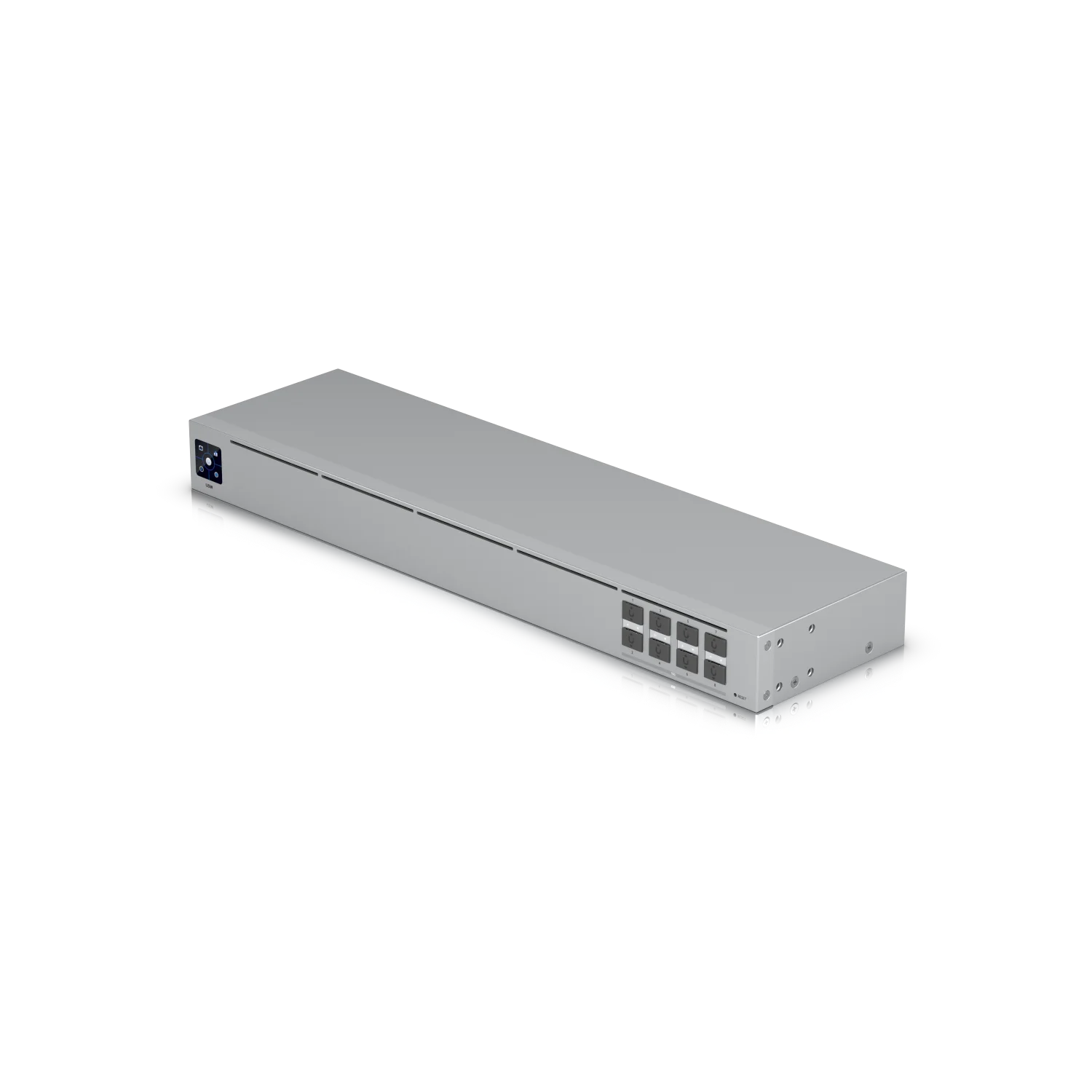

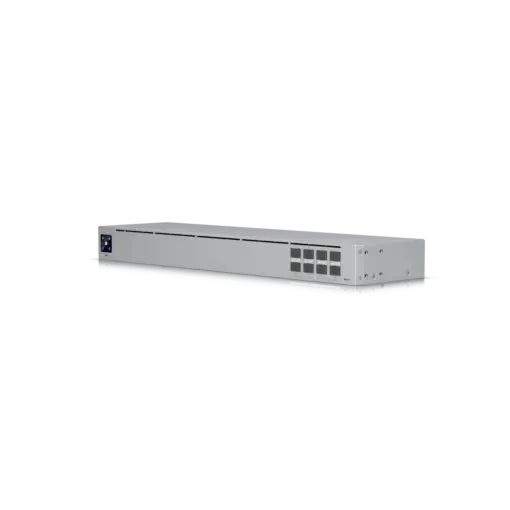

An eight-port, Layer 2 switch that supports 10G SFP+ connections, and is equipped with a fanless cooling system.

Features:

• • • (8) 10G SFP+ ports
    • Switching capacity: 160 Gbps
    • 1.3″ LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 5.14.12 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical
Dimensions	442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
Weight	Without mounting brackets: 2.65 kg (5.84 lb) With mounting brackets: 2.74 kg (6.04 lb)
Enclosure material	SGCC steel
Hardware
Networking interface	(8) 10G SFP+ ports
Management interface	Ethernet In-Band
Total non-blocking throughput	80 Gbps
Switching capacity	160 Gbps
Forwarding rate	119.04 Mpps
Max. power consumption	30W
Power method	Universal AC Input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 36W
Services	SMB Layer 2 GbE switch
Max. number of supported SFP+ modules	UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3″ LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading
Button	Factory reset
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
SFP+	Link/activity
