Ubiquiti UniFi Switch Pro Max 16
€ 278,95
Ubiquiti UniFi Switch Pro Max 16 – (4) 2.5 GbE ports, (12) GbE ports, (2) 10G SFP+ ports
Pro Max 16
USW-Pro-Max-16
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″)

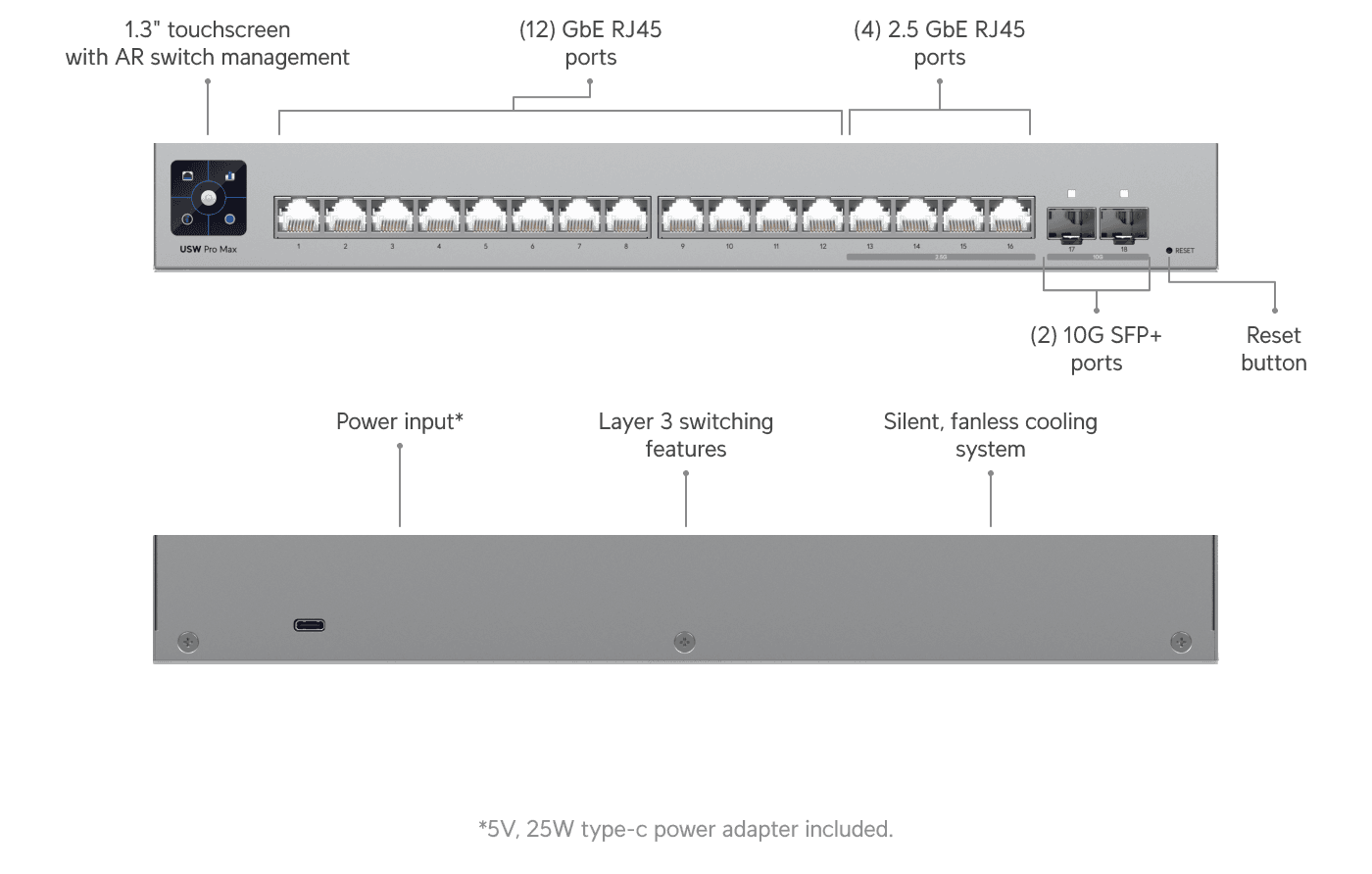

Port Layout
1 GbE RJ45
12 (1G/100M/10M)
2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
Layer 3
✓
Form Factor

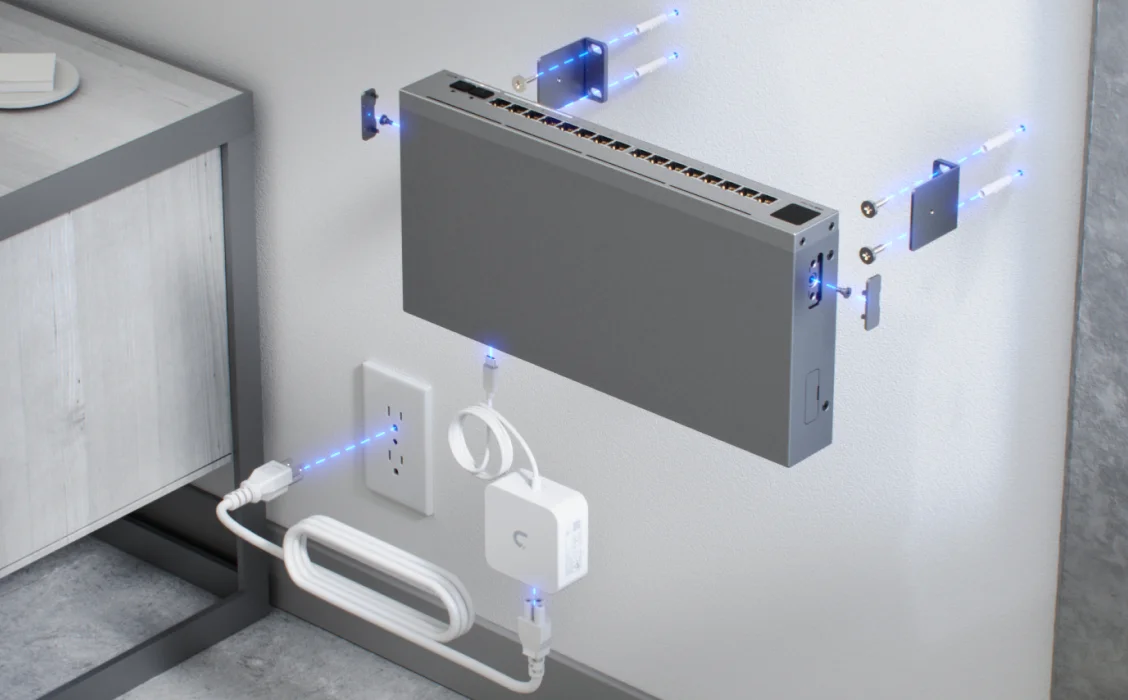

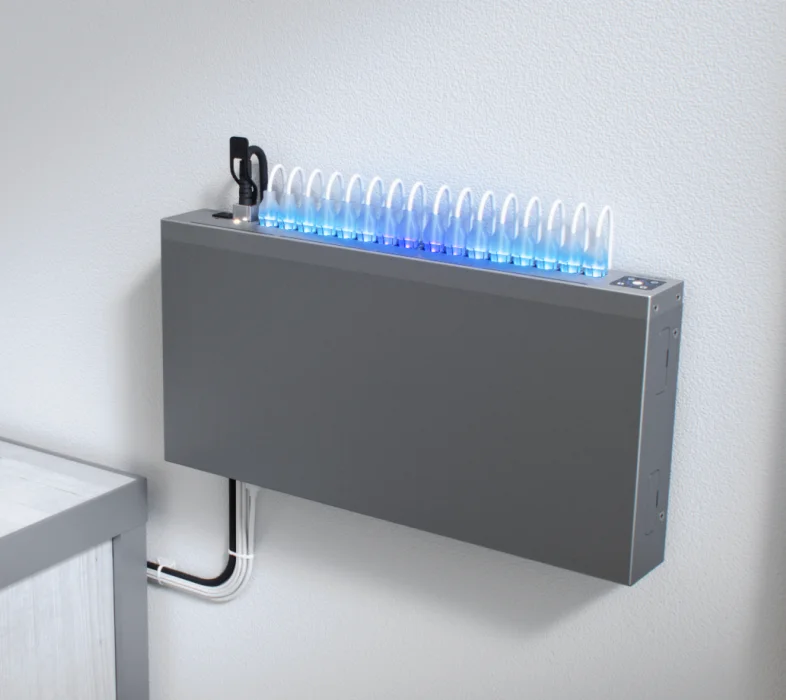

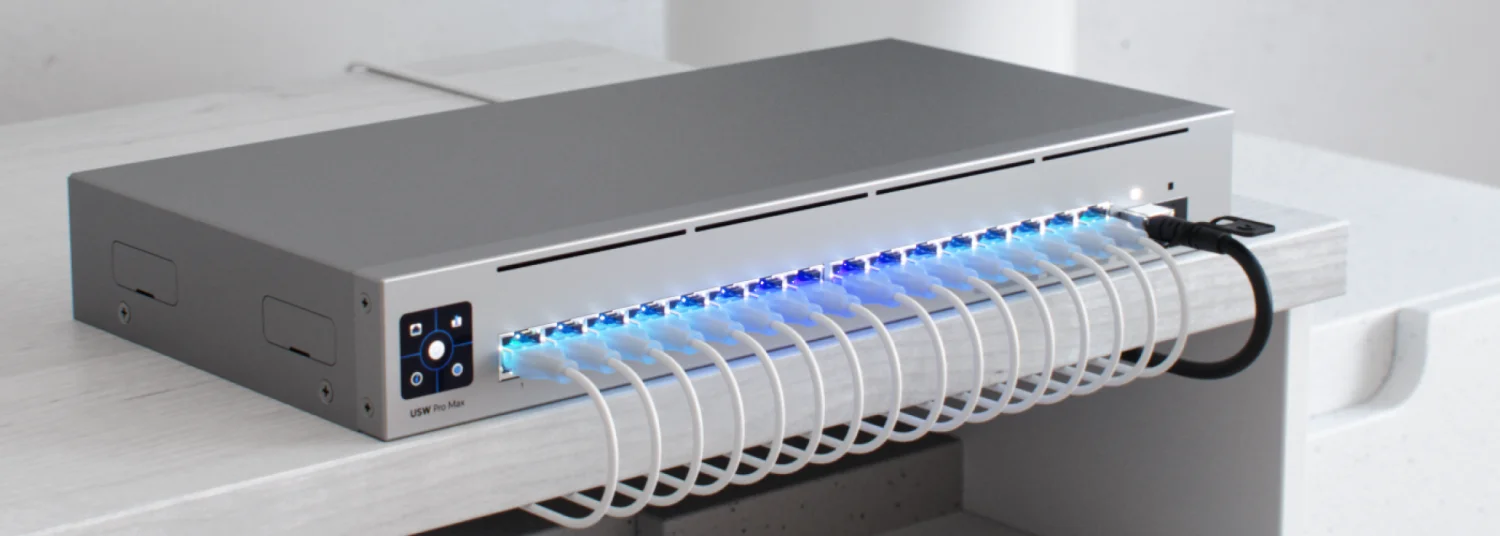

Rack mount (1U), desktop, wall
Etherlighting™
✓
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Max. Power Consumption
25W
Power Method
AC/DC Adapter (included)
Power Input Method
USB Type-C, 5V DC, 5A
Power Supply
AC/DC, external, 25W
Supported Voltage Range
4.8—5.2V DC/USB
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
85.3 BTU/hr
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2″)
LCM Display
1.3″ touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Application Requirements
UniFi Network
Version 8.1.127 and later
