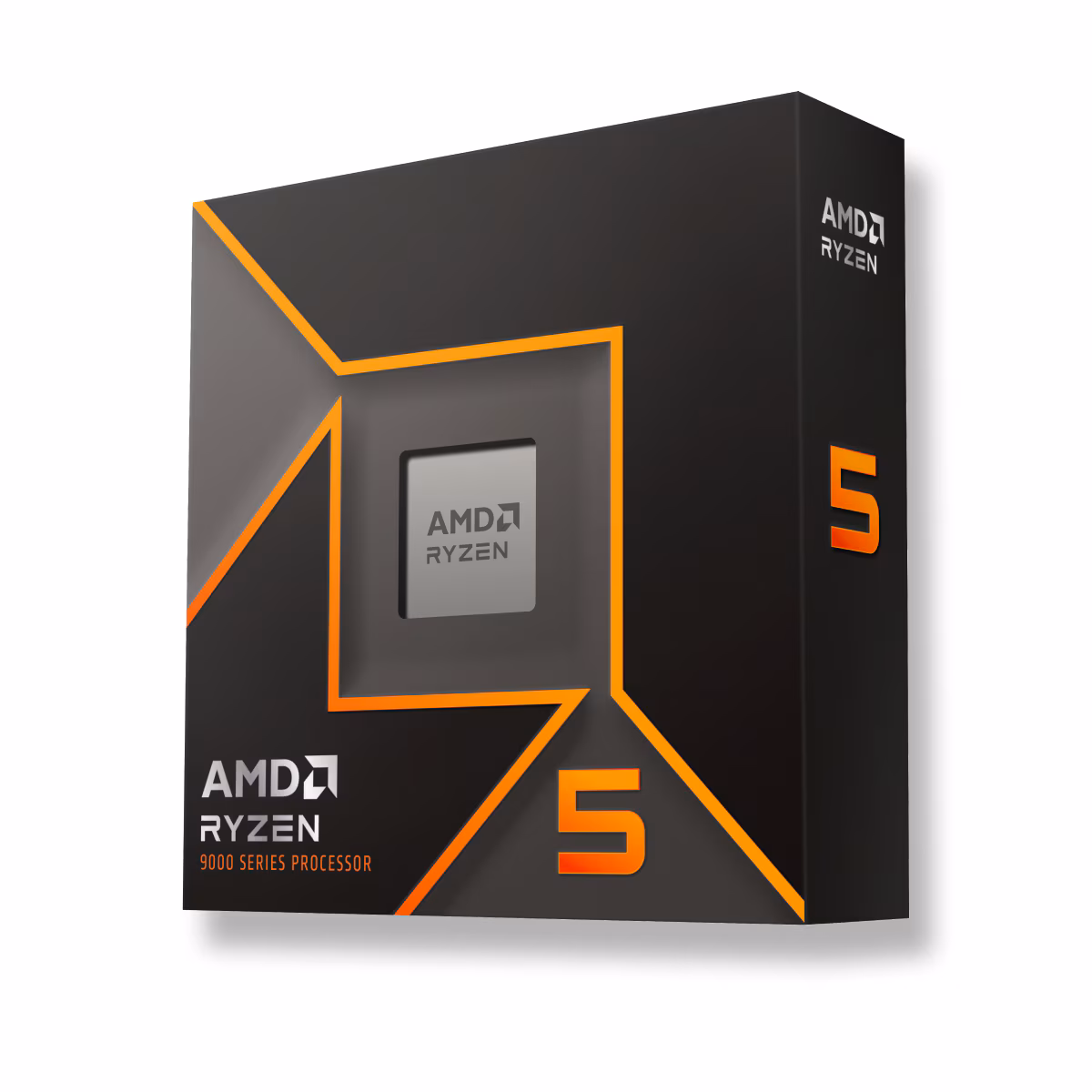

AMD Ryzen™ 5 9600X Processor

SKU: 100-100001405WOF

• # of CPU Cores: 6

• # of Threads: 12

• Max Boost Clock: Up to 5.4 GHz

• Base Clock: 3.9 GHz

• Thermal Solution: Not Included

• Default TDP: 65W

• Graphics Model: AMD Radeon™ Graphics

• Drivers and Support

The Fastest Gaming Processors in the World

Only AMD Ryzen™ processors feature models with exclusive  AMD 2^nd Gen  3D V-Cache™ technology  for a massive gaming performance boost.  AMD combines its flagship Ryzen 9000X3D Series processors with up to a colossal 144MB of on-chip memory, paired with the most advanced processor cores you can get in a gaming PC so enthusiasts can harness the power of the ultimate gaming performance.³

Play Games Without a Graphics Card

The latest AMD Ryzen G-Series processors feature best-in-class graphics built-in⁴, so you can play virtually any PC game out there in high definition without the added expense of a graphics card. And if you want to take your gaming to the next level later, you can add a high-performance graphics card whenever you want.

Professional-Grade Productivity

Whether you are working in Microsoft Office, exporting video files, or visualizing an architectural dream in 3D, AMD Ryzen processors are built to beat the clock. With premium options that include time-saving connectivity like PCIe® 5.0 storage support, ultra-fast Wi-Fi® 6E⁵, AMD EXPO™ technology⁶, up to 32 processing threads, and dedicated video accelerators⁷, elevate your experience with AMD Ryzen processors.

• General Specifications

  NameAMD Ryzen™ 5 9600X

  FamilyRyzen

  SeriesRyzen 9000 Series

  Form FactorDesktops, Boxed Processor

  Market SegmentEnthusiast Desktop

  AMD PRO TechnologiesNo

  Regional AvailabilityGlobal

  Former CodenameGranite Ridge AM5

  Processor ArchitectureZen 5

  # of CPU Cores6

  Multithreading (SMT)Yes

  # of Threads12

  Max. Boost Clock Up to 5.4 GHz

  Base Clock 3.9 GHz

  L1 Cache480 KB

  L2 Cache6 MB

  L3 Cache32 MB

  Default TDP65W

  Processor Technology for CPU CoresTSMC 4nm FinFET

  Processor Technology for I/O DieTSMC 6nm FinFET

  Package Die Count2

  Unlocked for Overclocking Yes

  AMD EXPO™ Memory Overclocking TechnologyYes

  Precision Boost OverdriveYes

  Curve Optimizer Voltage OffsetsYes

  AMD Ryzen™ Master SupportYes

  CPU SocketAM5

  Supporting ChipsetsA620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

  CPU Boost TechnologyPrecision Boost 2

  Instruction Setx86-64

  Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB)Not Included

  Recommended CoolerPremium air cooler recommended for optimal performance

  Max. Operating Temperature (Tjmax)95°C

  Launch Date08/08/2024

  *OS SupportWindows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

  Native USB 3.2 Gen 2 (10Gbps)4

  Native USB 2.0 (480Mbps)1

  PCI Express® VersionPCIe® 5.0

  Native PCIe® Lanes (Total/Usable)28 , 24

  Additional Usable PCIe Lanes from Motherboard

  X870E

  8x Gen4

  X870

  4x Gen4

  X670E

  12x Gen4

  X670

  12x Gen4

  B650E

  8x Gen4

  B650

  8x Gen4

  NVMe SupportBoot , RAID0 , RAID1 , RAID5 , RAID10

  System Memory TypeDDR5

  Memory Channels2

  Max. Memory192 GB

  System Memory SubtypeUDIMM

  Max Memory Speed

  2x1R

  DDR5-5600

  2x2R

  DDR5-5600

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

  ECC SupportYes (Requires mobo support)

• Graphics Capabilities

  Graphics ModelAMD Radeon™ Graphics

  Graphics Core Count2

  Graphics Frequency2200 MHz

  USB Type-C® DisplayPort™ Alternate ModeYes

• Product IDs

  Product ID Boxed100-100001405WOF

  Product ID Tray100-000001405

• Key Features

  Supported TechnologiesAMD EXPO™ Technology , AMD Ryzen™ Technologies
