Arctic Cooling P14 PWM PST A-RGB – 3 Pack

EAN: 4895213703512SKU: ACFAN00257ACategorie: Merk:

€ 43,95€ 36,32 incl. btwexcl. btw

Uitverkocht

Wil je geïnformeerd worden wanneer dit product weer op voorraad is?

Arctic Cooling P14 PWM PST A-RGB – 3 Pack – 140 x 140 x 27mm – 00—1900 rpm PWM Controlled (0 rpm below 5% PWM)

P14 PWM PST A-RGB

140 mm A-RGB PWM Fan with Cable Splitter | 3 Pieces

p14-pwm-pst-argb-colour-control

Addressable RGB for Full Colour Control

The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

ARCTIC’s partner SignalRGB offers a comprehensive solution for synchronisation and individual configuration of the illumination.

Download SignalRGB

p14-pwm-pst-argb-0dB-en

0 dB Mode — Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

Maximum-Quietness_EN

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

P-Series-Pressure-Optimised

Optimised for High Static Pressure

The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

PWM-PST-Cable-black

200 to 1900 rpm Controlled via PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

Fluid-Dynamic-Bearing_New_EN

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
Quality-Warranty-New

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer’s guarantee on the P14 PWN PST A-RGB.

General Specifications
Performance
Fan Speed:
200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow:
68.90 cfm | 117.06 m³/h
Static Pressure:
2 mmH2O
Noise Level:
0.3 Sone
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Operating Ambient Temperature:
0—40 °C
Warranty:
6 Years
Electric Characteristics:
Typical Voltage:
12 V DC
Starting Voltage:
5 V
Current | Voltage:
0.17 A | 12 V DC
Cable Length:
400 mm
RGB Specifications
LEDs:
12 A-RGB LEDs
Connector:
3-Pin 5 V-DI-GND Connector
Current / Voltage:
0.4 A/5 V
Cable:
400 mm Cable with 80 mm Sharing Cable, Black

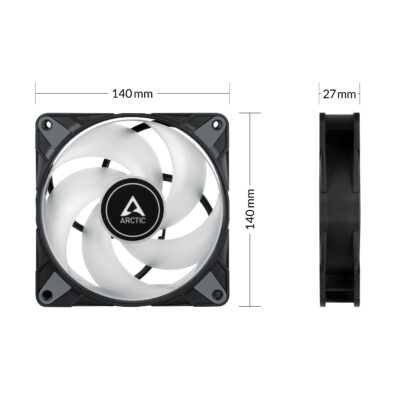

Size & Weight
Length:
140 mm
Width:
140 mm
Height:
27 mm
Weight:
225 g
Packaging
  •  Width: 144 mm
  •  Height: 91 mm
  •  Length: 144 mm
  • Weight: 0.758 kg
Manufacturer Info

Manufacturer: ARCTIC (HK) Ltd., Unit 1301-05, The Octagon, 6 Sha Tsui Road, Tsuen Wan NT, Hong Kong, hk@arctic.de

EU Representative: ARCTIC GmbH, Bevenroder Str. 149, 38108 Braunschweig, Germany, info@arctic.de, +49 531 60945294

EAN: 4895213703512

UPC: 840033401326

Gewicht 0,758 kg
Afmetingen 14,4 × 9,1 × 14,4 cm
