ASRock B650M Pro RS WiFi – micro ATX – Socket AM5 – AMD B650

Name: ASRock B650M Pro RS WiFi - micro ATX - Socket AM5 - AMD B650
Brand: ASRock
SKU: 90-MXBLZ0-A0UAYZ
Price: 139.67 EUR
Availability: BackOrder

€ 169,00

ASRock B650M Pro RS WiFi – Moederbord – micro ATX – Socket AM5 – AMD B650 – DDR5 – USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 – Gigabit LAN, 802.11ax Wi-Fi 6E + Bluetooth – interne afbeeldingen (CPU vereist) – HD Audio (8-kanaals)

Beschikbaar via nabestelling

EAN: 4710483943089 Artikelnummer: 90-MXBLZ0-A0UAYZ Categorieën: Componenten, Moederborden Merk: ASRock

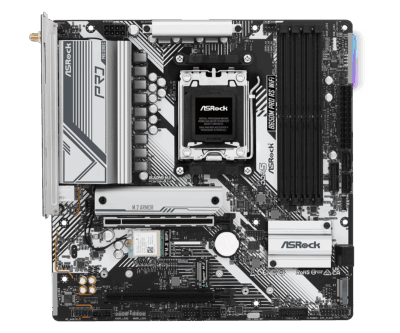

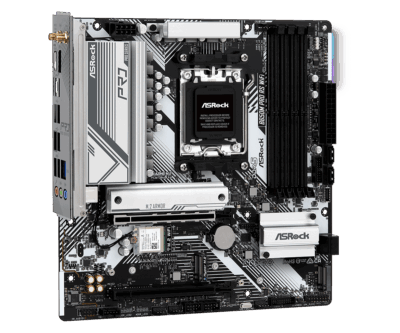

B650M Pro RS WiFi

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ MHz (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2)
1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Dragon 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

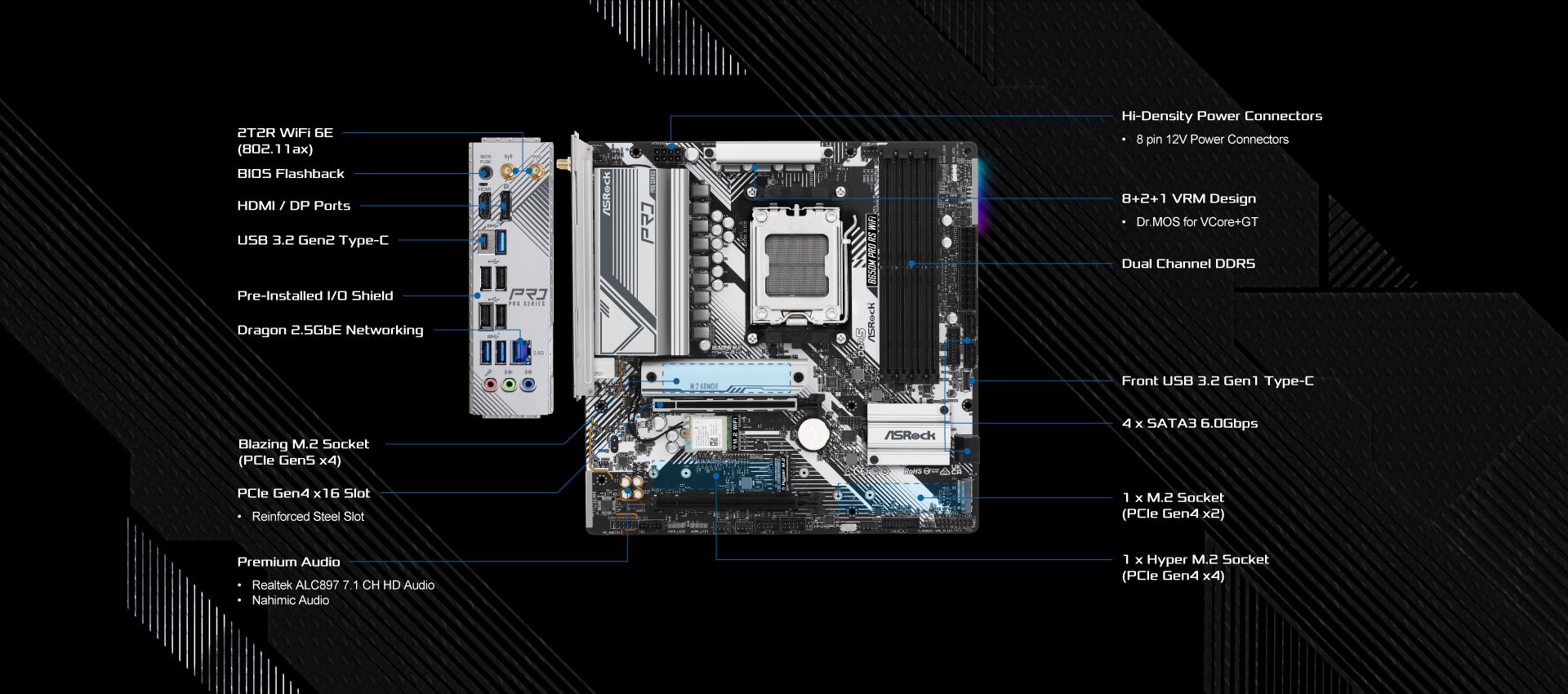

- Unique Feature

  Superb Productivity
  – PCIe Gen5 (M.2)
  – Dual Channel DDR5
  Rock-Solid Durability
  – 8+2+1 Power Phase, 50A Dr.MOS
  – Pre-Installed I/O Shield
  Ultrafast Connectivity
  – 2.5G LAN, 802.11ax Wi-Fi 6E Module
  EZ Update
  – BIOS Flashback Button
  – ASRock Auto Driver Installer
  EZ Troubleshooter
  – ASRock Post Status Checker
- CPU

  – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- Chipset

  – AMD B650
- Memory

  – Dual Channel DDR5 Memory Technology
  – 4 x DDR5 DIMM Slots
  – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  – Max. capacity of system memory: 192GB
  – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

  *Please refer to Memory Support List for more information.
- BIOS

  – 256Mb AMI UEFI Legal BIOS with GUI support
- Graphics

  Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- Audio

  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Nahimic Audio
- LAN

  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  – Dragon RTL8125BG
  – Supports Dragon 2.5G LAN Software
  – Smart Auto Adjust Bandwidth Control
  – Visual User Friendly UI
  – Visual Network Usage Statistics
  – Optimized Default Setting for Game, Browser, and Streaming Modes
  – User Customized Priority Control

Wireless LAN

– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band* support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.
Slots

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks
Storage

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
RAID

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10
USB

– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection
Connector

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip.

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CPU_FAN2/WP supports the fan power up to 2A (24W).

***** CHA_FAN1~3/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

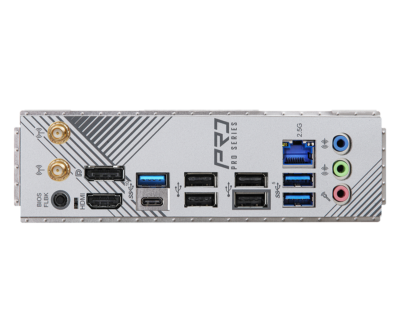

Rear Panel I/O

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

– 1 x User Manual
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
OS

– Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Processorsocket	Socket AM5
Model	Micro ATX
Ondersteunde RAM-technologie	DDR5 SDRAM
Chipsettype	AMD B650
