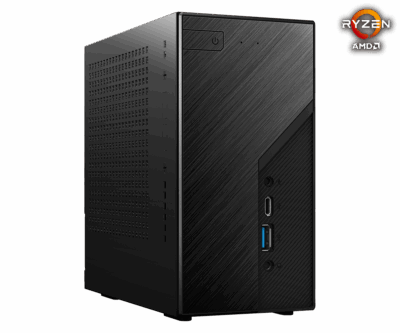

ASRock DeskMini X300 – Socket AM4 – Barebone – Mini-STX – Zwart
€ 179,00
ASRock DeskMini X300 – Barebone – Mini-STX – 1 x AMD AM4 Socket (max. 65W) – DDR4 3200 MHz, 2 x SO-DIMM slots, Max. 64GB – GigE – Zwart – 120W/19V Power Adapter
Beschikbaar via nabestelling
DeskMini X300 Series
- AMD AM4 Socket CPU
– Cezanne, Renoir, Picasso, Raven Ridge, up to 65W
– Support MAX Height ≦ 46mm CPU Cooler - Supports Overclocking Option with X300
- High-Speed DDR4-3200MHz Memory
- Dual Ultra M.2 (NVMe)
– M2_1 M.2 (2280) – PCIe Gen3 x4
– M2_2 M.2 (2280) – PCIe Gen3 x2/x4 - 2 x 2.5″ SATA 6Gb Hard Drive
- Support RAID 0/1 function
- HDMI, DisplayPort, D-Sub
- M.2 For Wi-Fi Module
- USB 3.2 Gen1 Type-C
Small APU Form Factor
Support Cezanne, Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ≦46mm CPU Cooler
Powerful Processing Performance
ASRock DeskMini X300 supports the latest AMD Ryzen™ 5000 G-Series desktop processors. With up to 8 cores, 16 threads, these processors deliver ultimate performance for multitask computing compared with mobile processors. In addition, with AMD Ryzen™ 5000 G-Series desktop processors, you get the world’s fastest integrated graphics.
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
Heatsink on MOSFET
4X Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Triple Display
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
DeskMini X300 Barebone
-
CPU– Supports AMD AM4 Socket CPUs (Cezanne, Renoir, Picasso, Raven Ridge, up to 65W)
-
Cooler– Supports AMD AM4 CPU Cooler (Max. Height ≦ 46mm)
-
Memory– Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
– AMD Ryzen 5000/4000 series – 3200MHz
– AMD Ryzen 3000/2000 series – 2933MHz -
Chipset– AMD X300
-
Graphics Output– HDMI(4K @60Hz)
– DisplayPort, D-Sub -
Audio– 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
-
Front USB– 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
-
Rear USB– 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,
-
Storage– 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
– 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
– 1 x Ultra M.2 (2280) Slot
– PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
– PCIe Gen3 x2 (Athlon 2xxGE series APU) -
LAN– Gigabit LAN (RealtekRTL8111H)
-
WLAN– 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
-
Connectors– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 2 x 4-Pin fan connectors (CPU, SYS)
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header (4-Pin)
– 1 x Chassis Intrusion Header (2-Pin)
– 1 x Audio Header (4-Pin) -
Accessory– 2 x SATA Data with Power Cable
– 1 x 120W/19V adapter
– 1 x Screws Pack -
Dimension– 155 x 155 x 80 mm (1.92L)
-
OS– Microsoft® Windows® 10 64-bit / 11 64-bit
-
RemarkDeskMini X300 Series don’t support S3 function.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
| EAN | 4710483931666 |
|---|---|
| Multi-Core Technologie | |
| Processor | |
| RAM | |
| Geheugentype | |
| Geheugengrootte | |
| Harde schijf | |
| Graphics controller |
