Model

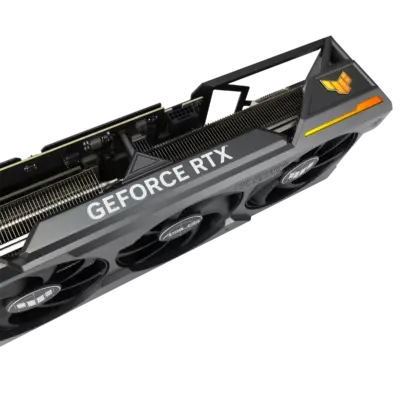

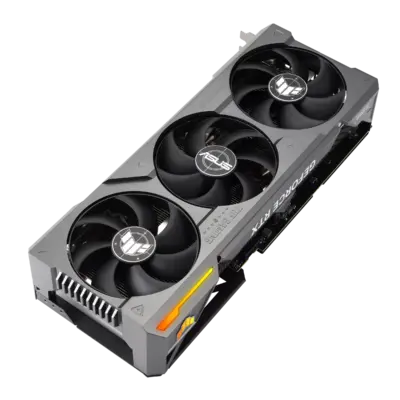

ASUS TUF Gaming GeForce RTX™ 4080 16GB GDDR6X OC Edition
Graphic Engine
NVIDIA® GeForce RTX™ 4080
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6X
Engine Clock
OC mode: 2625 MHz
Default mode: 2595 MHz(Boost Clock)
CUDA Core
9728
Memory Speed
22.4 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320

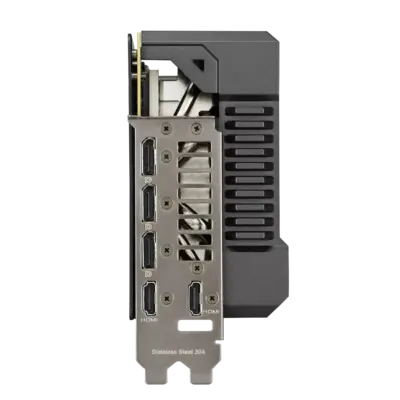

Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No

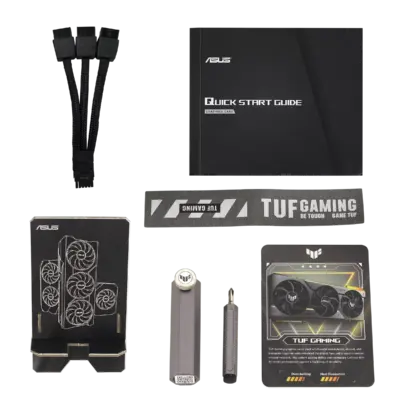

Accessories
1 x Collection Card​
1 x Speedsetup Manual​
1 x Adapter Cable​

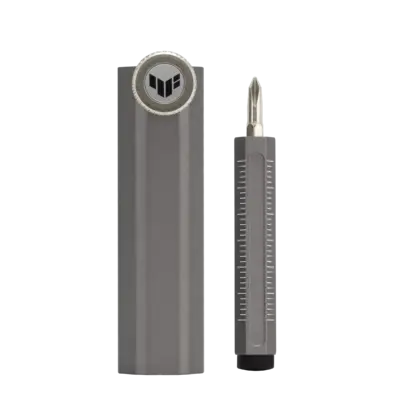

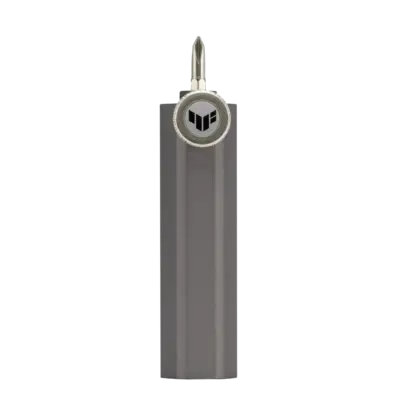

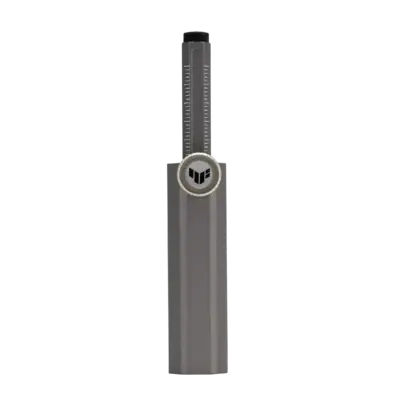

1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Thank you Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
348.2 x 150 x 72.6 mm
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
3.65 slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
Product has High-Definition Multimedia Interface.

  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
