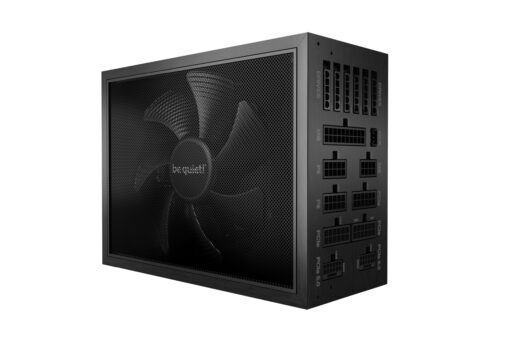

be quiet! DARK POWER PRO 13 1300W – 80 PLUS Titanium
€ 409,00
be quiet! DARK POWER PRO 13 1300W – Voeding ( intern ) – ATX12V 2.4 – 100-240 Volt – 1300 Watt – Active PFC – 80PLUS Titanium
Beschikbaar via nabestelling
DARK POWER PRO 13
1300W
Cutting edge technologie and performance
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.
- 80 PLUS Titanium efficiency (up to 94.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Overclocking key switches between six 12V rails and one massive 12V rail
- Aluminum case and modular individually sleeved cables for magnificent appearance
- 10-year manufacturer’s warranty
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate availableDark Power Pro 13 1300W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specificationsDark Power Pro 13 1300W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loadsDark Power Pro 13 offers 1300W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1300W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiencyExperience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operationThe improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespanThe split fan inlet of the Dark Power Pro 13 1300W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR EXTREME OVERCLOCKING
Pushing the performance of your PSU to the maxDark Power Pro 13 1300W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.
JAPANESE 105°C CAPACITORS
A testament to high qualityOnly the best components are used in Dark Power Pro 13 1300W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
HIGHEST CONVENIENCE
Modular cables for maximum utilityIndividually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
MAGNIFICENT APPEARANCE
No compromisesDark Power Pro 13 1300W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1300W also on the outside.
General data
| Model | Dark Power Pro 13 1300W |
| Continuous power (W) | 1300 |
| Peak power (W) | 1400 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | ✓ |
| Voltage (Vac) | 115 – 240 |
| Frequency (Hz) | 50 – 60 |
| Input current (A) | 15 / 9 |
| Power factor at 100% load | >0.99 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.06 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 50 |
Efficiency
| 80 PLUS certification | Titanium |
| Efficiency (%) at 230V, 2% load | 73.1 |
| Efficiency (%) at 230V, 10% load | 91.6 |
| Efficiency (%) at 230V, 20% load | 93.6 |
| Efficiency (%) at 230V, 50% load | 94.4 |
| Efficiency (%) at 230V, 100% load | 92.8 |
Fan and cooling technology
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2400 |
| dB(A) at 10% load | 10.2 |
| dB(A) at 20% load | 10.2 |
| dB(A) at 50% load | 10.2 |
| dB(A) at 100% load | 23.2 |
Output
| Multi-rail operation (12V rails) | 6 |
| 12V single rail operation | ✓ |
| Overclocking key | ✓ |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 35 |
| +12V2 (A) | 35 |
| +12V3 (A) | 40 |
| +12V4 (A) | 40 |
| +12V5 (A) | 55 |
| +12V6 (A) | 55 |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3.5 |
| Max. combined power 12V (W) | 1300 |
| Max. combined power 12VHPWR (W) | 800 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time at 100% load (ms) | 18 |
| Hold-up time at 80% load (ms) | – |
| Power good signal (ms) | 100-150 |
Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | – |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 16 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | – |
| 12VHPWR cables | 2 |
| PCI-e 6+2-pin (GPU) | 6 |
| PCI-e 6-pin (GPU) | – |
| SATA | 16 |
| PATA | 5 |
| FDD (Floppy) | – |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | – |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | ✓ |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | ✓ |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, KR |
| OCK slot bracket with switch / OCK jumper | ✓ |
| SFX-to-ATX adapter bracket | – |
Casing
| Dimensions without cable (L x W x H), (mm) | 200 x 150 x 86 |
| Weight (kg) | 2.41 |
| Color | Black |
Service
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BN331 |
| EAN code | 4260052189368 |
| Dimensions, package (L x W x H), (mm) | 417 x 253 x 152 |
| Gross weight, package (kg) | 6.8 |
| Pieces per packaging unit | 2 |
| Dimensions, shipping box (L x W x H), (mm) | 440 x 325 x 283 |
| Gross weight, shipping box (kg) | 14.4 |
| RRP (€) | 409.90 |
