STRAIGHT POWER 11

850W Platinum

WORLD CLASS QUIET AND EFFICIENCY

be quiet! Straight Power 11 Platinum 750W raises the bar for systems that demand virtually inaudible operation and outstanding efficiency.

• 80 PLUS® Platinum efficiency (up to 93.7%)
• Virtually inaudible Silent Wings 3 135mm fan
• Funnel-shaped fan opening of the PSU case for high airflow intake
• Wire-free inside the PSU on the DC side for enhanced cooling and longevity
• Modular cables for maximum build flexibility
• Four PCIe connectors for overclocked high-end GPUs
• Japanese 105°C-rated capacitors ensure stability and reliability
• ErP and Energy Star 7.0 ready
• 5-year manufacturer’s warranty

80 PLUS® PLATINUM CERTIFIED

One of the highest efficiency certificates available

Straight Power 11 Platinum 850W is certified with 80 PLUS Platinum efficiency, reaching up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

SILENT WINGS 3 FAN

Provides virtually inaudible operation

The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

FUNNEL-SHAPED FAN OPENING

Higher cooling performance

The fan inlet of the Straight Power 11 Platinum 750W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

WIRE-FREE DESIGN INSIDE THE PSU

Pushing the longevity of components to a maximum

An absolute innovation: The Straight Power 11 Platinum 750W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

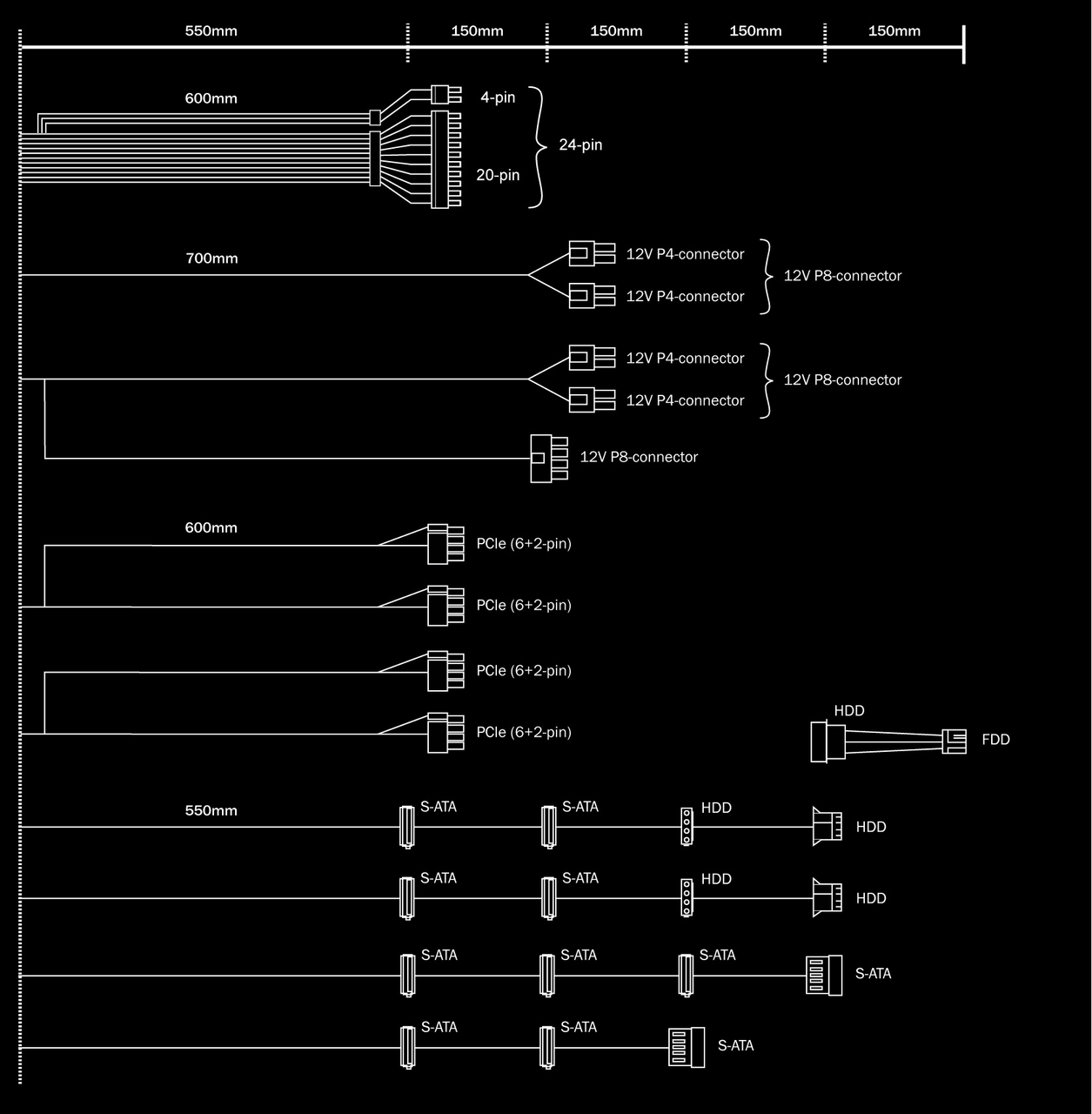

MODULAR CABLES

Utmost convenience and compatibility

Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

STATE-OF-THE-ART TECHNOLOGIES

Rock-steady signal stability and efficiency

Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. The DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions ensures reliable operation for the next generation of processors and graphics cards.

JAPANESE 105° CAPACITORS

A testament to high quality

Only the best components are used in Straight Power 11 Platinum 850W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.

General data

Model	Straight Power 11 Platinum 850W
Continuous power (W)	850
Peak power (W)	920
Form factor	Version 2.51
Form factor EPS 12V	Version 2.92
Modular Cable management	✓
Topology	Full bridge + LLC + SR + DC/DC
Wire-free design (DC-side)	✓
Voltage (Vac)	100 – 240
Frequency (Hz)	50 – 60
Input current (A)	10 / 5
PFC	active
Power factor at 100% load	>0.99
Compliant to Intel C6/C7	✓
Power consumption in standby (W)	0.16
Average life time (h / 25°C)	100,000
Operating temperature up to (°C)	40

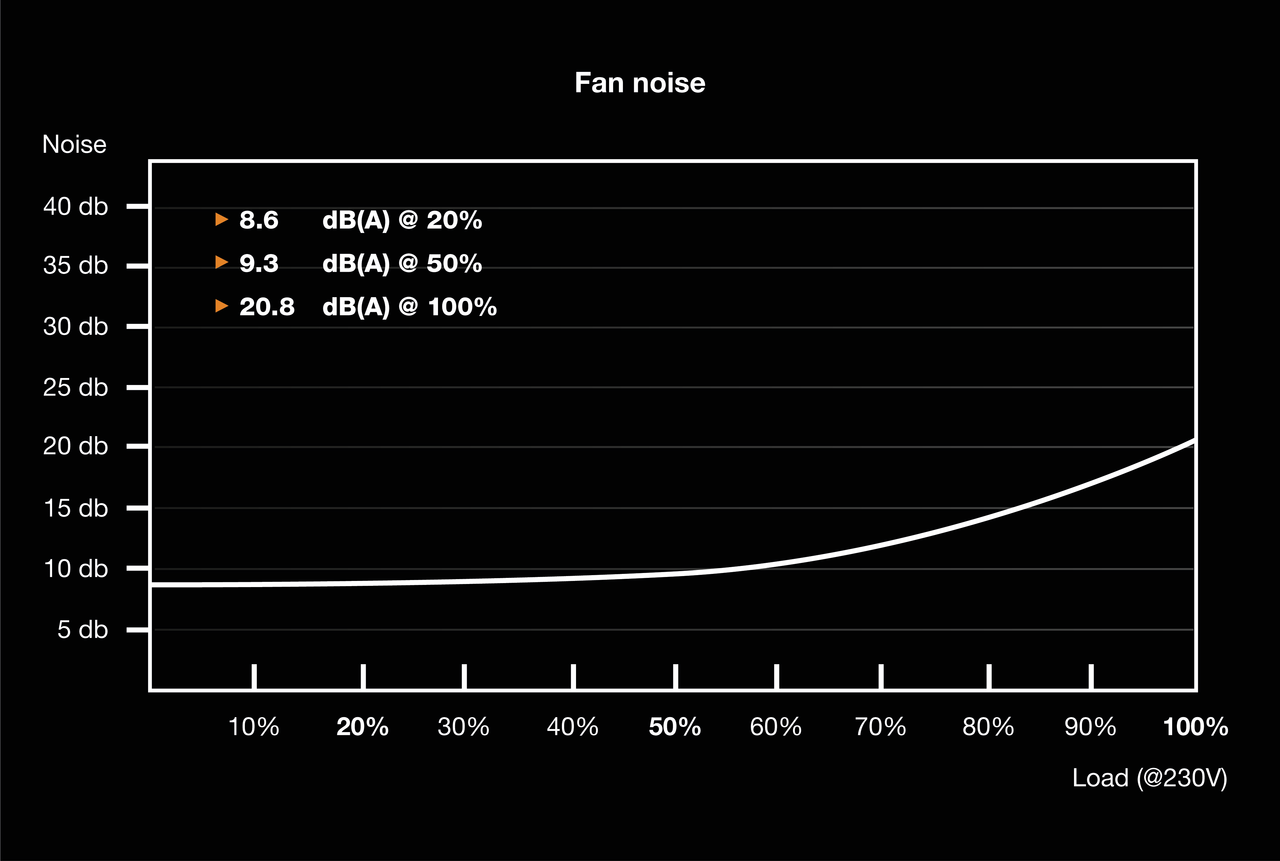

Infographics
