MWE 550 BRONZE – V2 230V
80 PLUS BRONZE CERTIFIED 230V POWER SUPPLY UNIT
DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze 230V EU Certified
Durable, Reliable, and Safe
5 Year Warranty

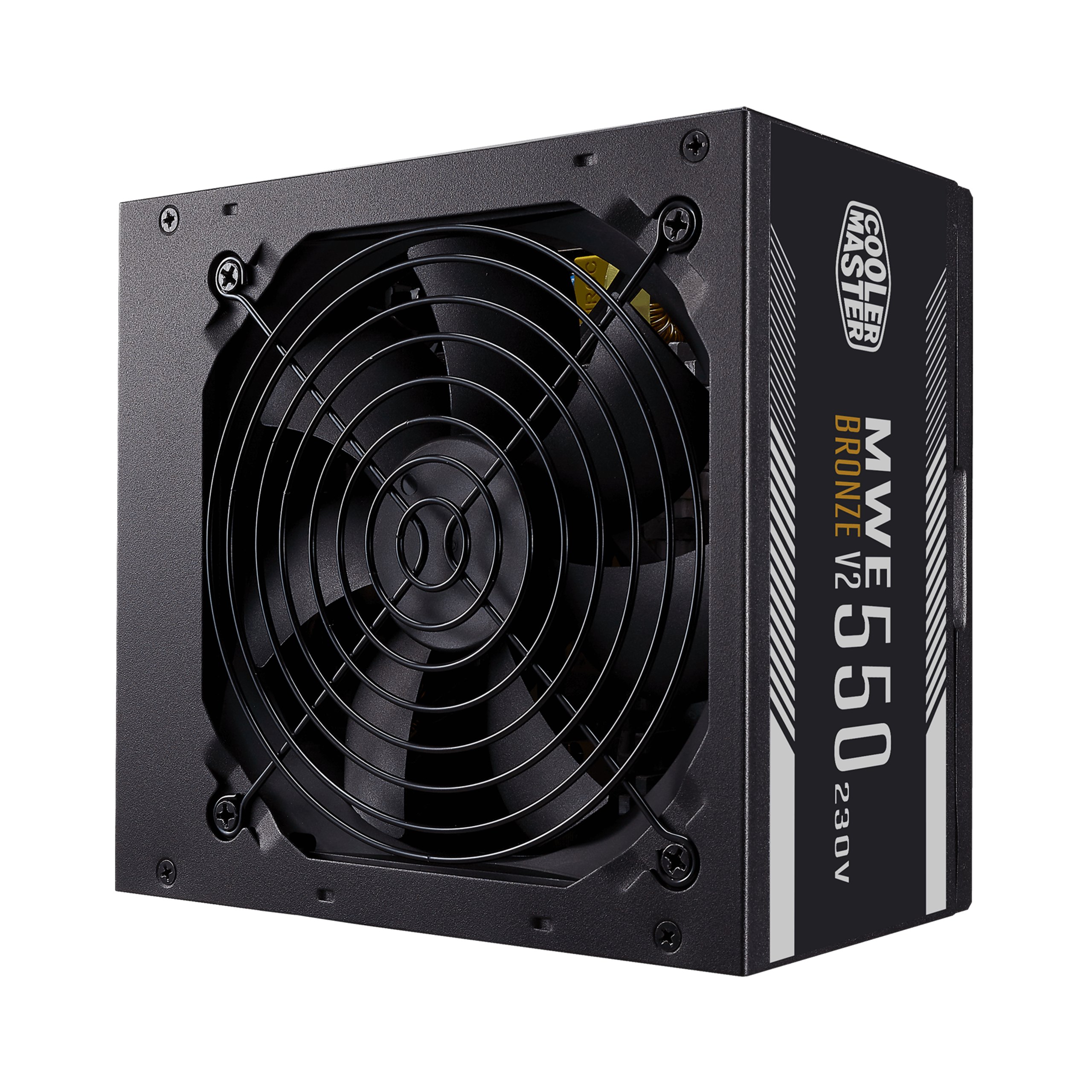

Cooler Master MWE 550 Bronze – V2 – 80 PLUS Bronze – 550 Watt
€ 78,90
Cooler Master MWE 550 Bronze – V2 – Voeding ( intern ) – ATX 12V Ver. 2.52 – 80 PLUS Bronze – 100-240 Volt wisselstroom – 550 Watt – actieve PFC – Europa
Beschikbaar via nabestelling
POWER UP
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can’t go wrong with the MWE Bronze V2.
80 PLUS BRONZE CERTIFIED
It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
| Model | MPE-5501-ACABW-B |
| ATX Version | ATX 12V V2.52 |
| PFC | Active PFC |
| Input Voltage | 200-240Vac |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 1500 RPM |
| Noise Level @ 20% | 13.8 dBA |
| Noise Level @ 50% | 18.4 dBA |
| Noise Level @ 100% | 31.2 dBA |
| Efficiency | 88% Typically |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Power Good Signal | 100 – 500 ms |
| Hold Up Time | >14ms at 100% Full Load@230Vac |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 2 |
| Series | MWE Bronze Series |
| 80 Plus | Bronze |
| Modular | Non Modular |
| Wattage | 500 to 750W |
| 80 PLUS-Certificatie | |
|---|---|
| Modulair | |
| Stroomcapaciteit |
