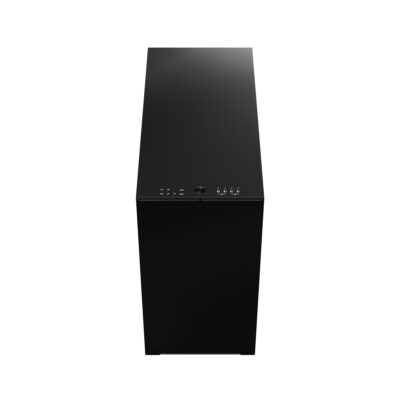

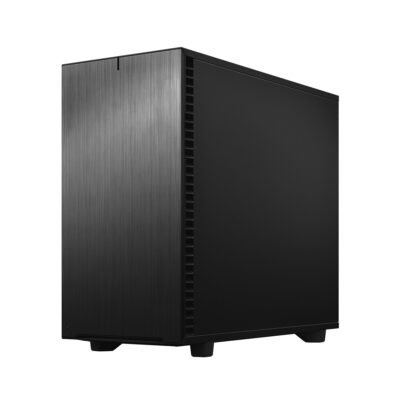

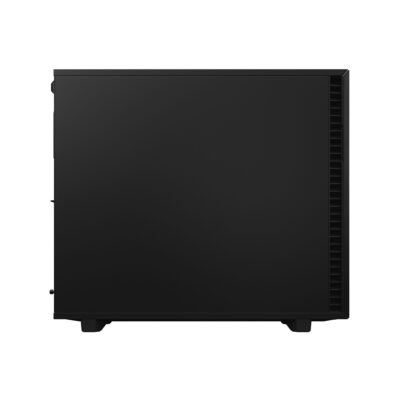

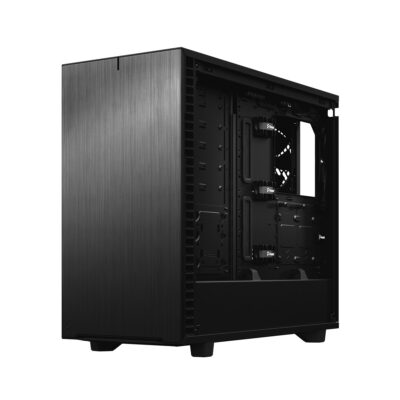

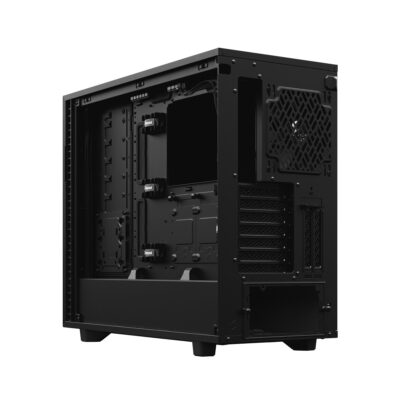

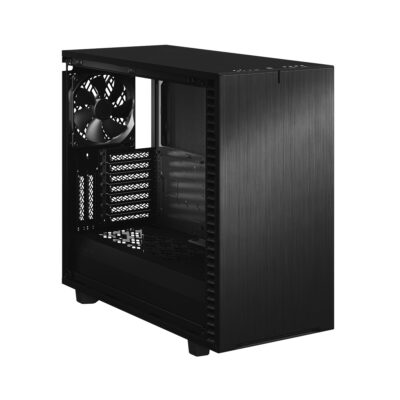

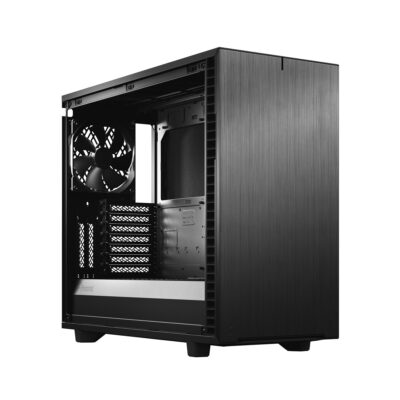

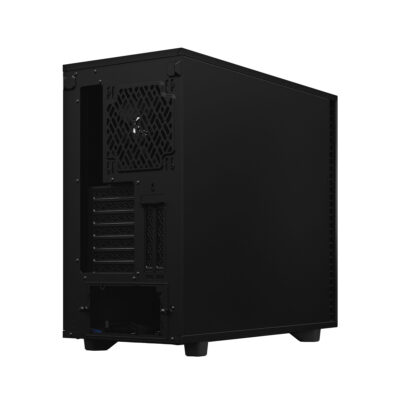

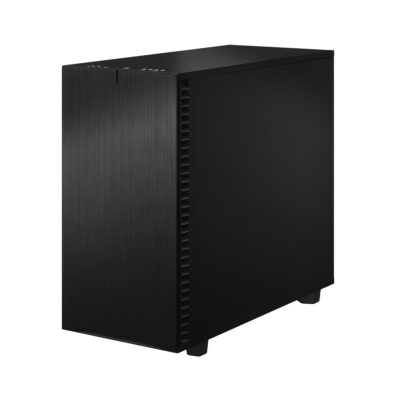

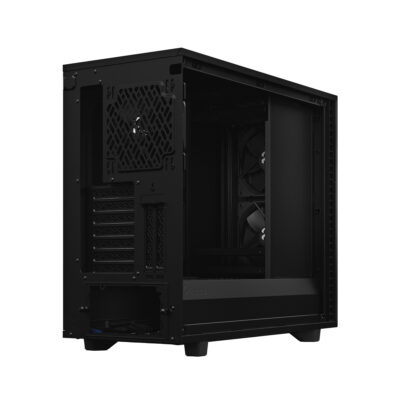

Fractal Design Define 7 – Black – eATX
€ 175,00
Fractal Design Define 7 – Black – Torenmodel – uitgebreide ATX – geen voeding ( ATX ) – 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
Uitverkocht
Wil je geïnformeerd worden wanneer dit product weer op voorraad is?
Define 7
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

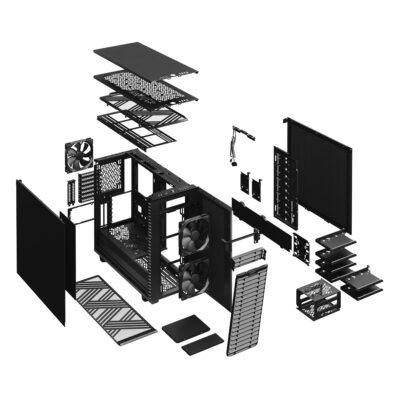

- • New chassis design opens up to fully expose the case interior

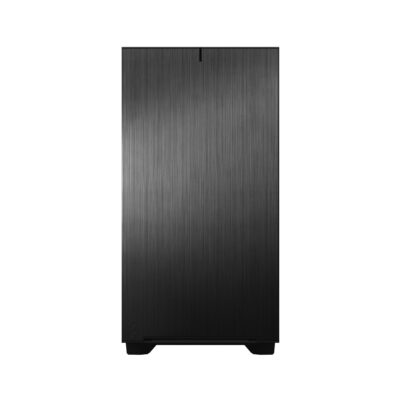

- • Anodized aluminum front panel with reversible dual-handed hinges
- • Multibracket converts unused fan positions to HDD, SSD or pump mounts
Introducing the Define 7 series
Re-defining versatility

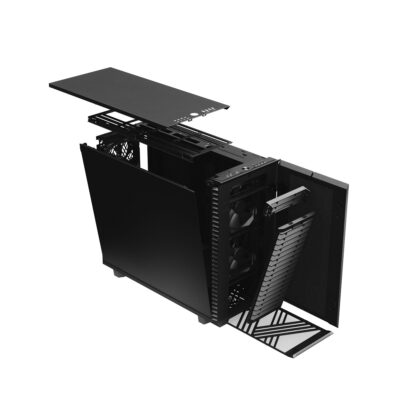

Open and interchangeable

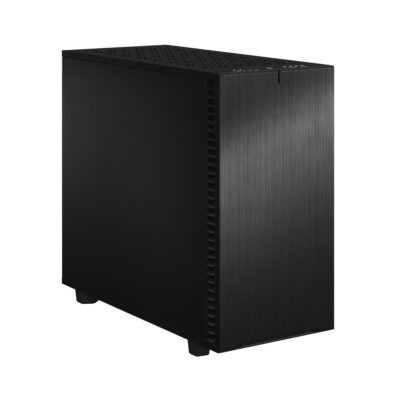

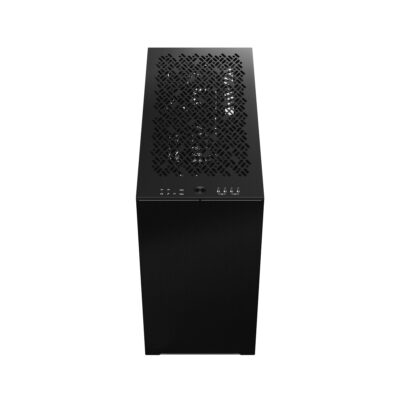

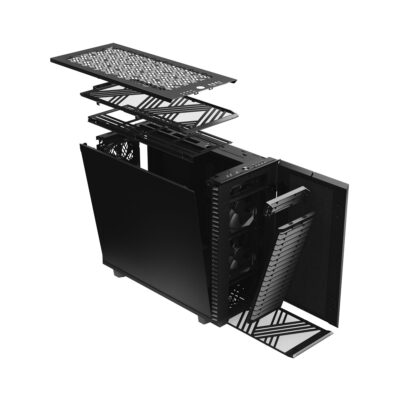

Swap in the ventilated panel to add three filtered fan positions;
remove the entire top to build and route with zero hindrance
Superior airflow by design
-
Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
-
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
-
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

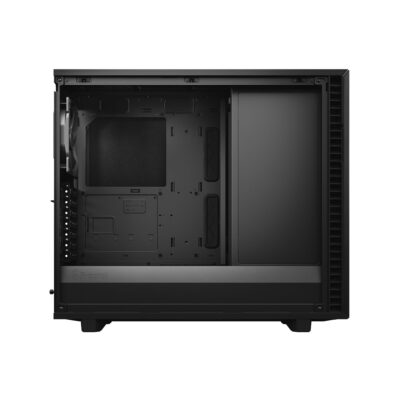

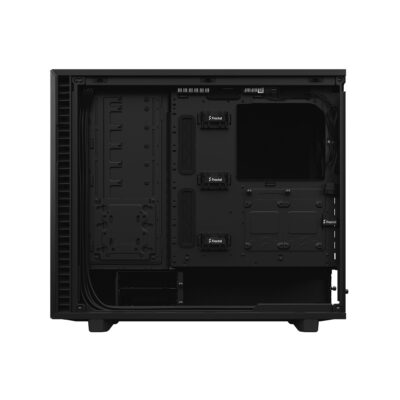

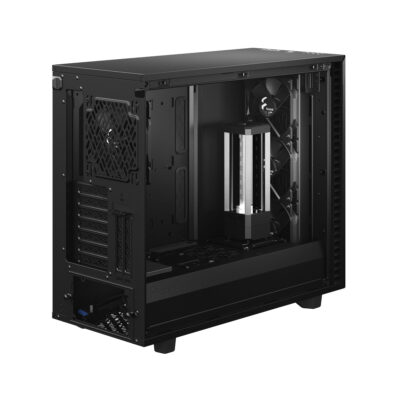

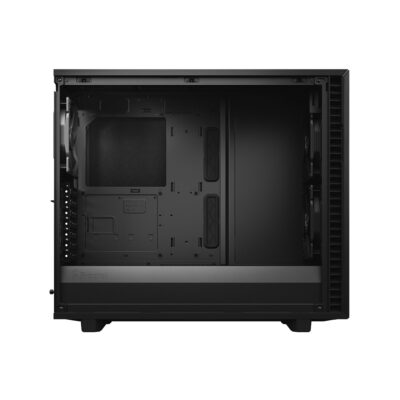

Open layout for massive headroom
-
Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
-
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included

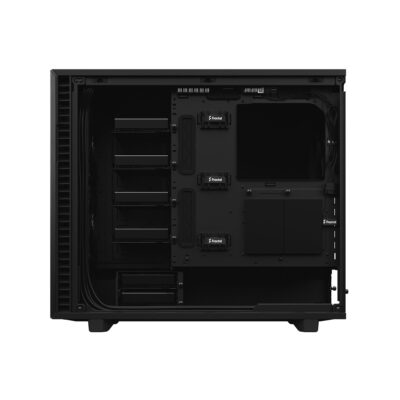

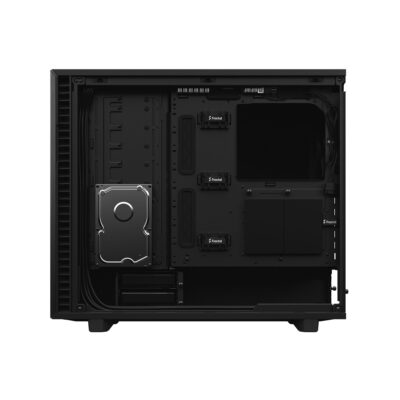

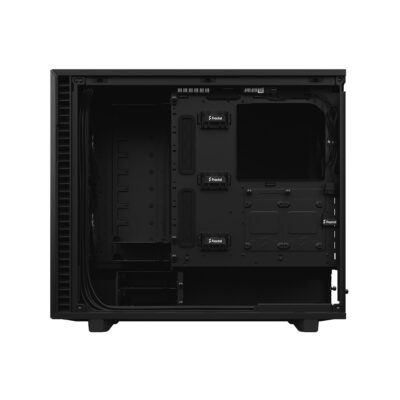

Superlative storage
-
6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
-
2 dedicated SSD brackets included with 4 positions total
-
Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
-
Sturdy new HDD cage design with vibration damped trays
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
Cable management
Integrated cable guides with Velcro ties simplifies cable management behind the board
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Type-C interface
Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
Specifications
-
3.5″/2.5″ Universal drive brackets6 included, 14 positions total
-
Dedicated 2.5″ drive brackets2 trays included, 4 positions total
-
5.25” drive mounts1
-
Expansion slots7 + 2
-
Front ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
-
Total fan mounts9 x 120/140 mm
-
Front fan3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
-
Top fan3 x 120/140 mm
-
Rear fan1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
-
Bottom fan2 x 120/140 mm
-
Dust filtersTop, 2 x front, full length bottom
-
Fixed velcro strapsYes
-
Cable routing grommetsYes
-
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
-
Left side panelIndustrial sound-damped steel
-
Right side panelIndustrial sound-damped steel
Compatibility
-
Motherboard compatibilityE-ATX (max 285 mm) / ATX / mATX / mITX
-
Power supply typeATX
-
PSU max length250 mm (with HDD cage installed)
-
GPU max lengthStorage layout: 315 mm – Open layout: 491 mm (467 mm w/ front fan)
-
CPU cooler max height185 mm
-
Front radiatorUp to 360/280 mm
-
Top radiatorUp to 360/420 mm
-
Rear radiator120 mm
-
Bottom radiatorUp to 240/280 mm
-
Cable routing space30 mm
Dimensions
-
Case dimensions (LxWxH)547 x 240 x 475 mm
-
Case dimensions w/o feet/protrusions/screws533 x 240 x 451 mm
-
Package dimensions (LxWxH)558 x 363 x 641 mm
-
Net weight13.49 kg
-
Package weight15.98 kg
-
Volume57.7 liters
Other
-
Package contentsDefine 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)
-
EANBlack – 7340172702191. Black/White – 7340172702221. Gray – 7340172702252. White – 7340172702276
-
UPCBlack – 843276102197. Black/White – 843276102227. Gray – 843276102258. White – 843276102272
-
JANBlack – 4537694275842. Black/White – 4537694275873. Gray – 4537694275903. White – 4537694276184
-
Product codeBlack – FD-C-DEF7A-01. Black/White – FD-C-DEF7A-04. Gray – FD-C-DEF7A-07. White – FD-C-DEF7A-09
Downloads
| Gewicht | 15,98 kg |
|---|---|
| EAN | 7340172702191 |
| Model |
