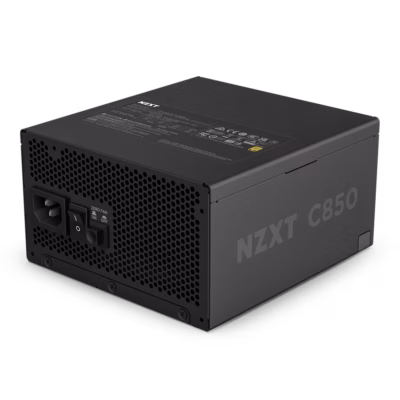

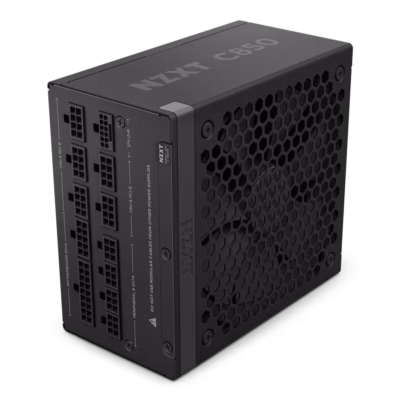

NZXT C850 – 850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
€ 144,95
NZXT C850 – 850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Beschikbaar via nabestelling
Overview
Details
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2×6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
Inside the Box
-
C850 Gold1
-
24-Pin ATX Power Cable1
-
4+4-pin CPU Power Cable1
-
8-pin CPU Power Cable1
-
6+2-pin PCIe Power Cable3
-
16-pin (12+4) 12V-2×6 PCIe Cable1
-
SATA Cable3
-
Peripherals Cable1
-
6-32 Screws4
-
AC Power Cord1
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.
RTX 50 Series Ready
12V-2×6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 50 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.
Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.
Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
Tech Specs

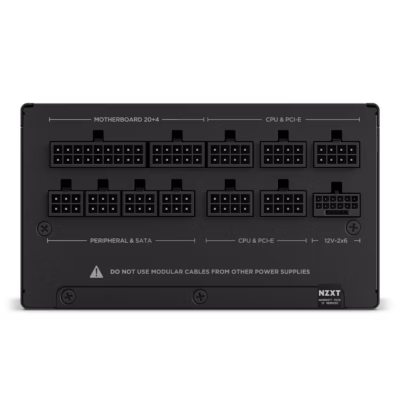

Output Connectors
- 24-pin ATX Power Cable:1
- 4+4-pin CPU Power Cable:1
- 8-pin CPU Power Cable:1
- 6+2-pin PCIe Power Cable:3
- 16-pin (12+4) 12V-2×6 PCIe Cable:1
- SATA Cable:12
- Peripherals Cable:4
Cable Specs
- 24-pin ATX Power Cable:600mm with nylon sleeving
- 4+4-pin CPU Power Cable:700mm with nylon sleeving
- 8-pin CPU Power Cable:700mm with nylon sleeving
- 6+2-pin PCIe Power Cable:650mm with nylon sleeving
- 16-pin (12+4) 12V-2×6 PCIe Cable:650mm with nylon sleeving
- SATA Cable:500 + 150mm
- Peripherals Cable:500 + 150mm
AC Input Rating
- 100 – 240Vac:10A-5A 50Hz-60Hz
- 200 – 240Vac:–
DC Output Rating
- 3.3V / +5V:22A (120W)
- 12V:70.83A (850W)
- 5Vsb:3A (15W)
- Total:850W
Energy Efficiency
- Rating:80 Plus Gold
- 10% loading:85.8% @115Vac
- 20% loading:89.5% @115Vac
- 50% loading:91.7% @115Vac
- 100% loading:89.2% @115Vac
Electrical Features
- PF Correction:Active @0.99
- Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
- Dimensions:135 x 135 x 25 mm
- Speed:2300 ± 10% RPM
- Airflow:93.02 CFM (Min.)
- Noise:44.5 dBA max
- Bearing:Fluid Dynamic Bearing (FDB)
Operation
- MTBF:100,000 hours
- Temperature:0 – 50 °C
Dimensions
- Width:150 mm
- Height:86 mm
- Depth:160 mm
General
- Material(s):Steel, PCB and Plastic
- Compliance Standard:ATX12V v3.1 / EPS12V v2.92
- Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
- Warranty:10 Years
- Model Number (Black):PA-8G2BB-CN / PA-8G2BB-UK / PA-8G2BB-US / PA-8G2BB-EU / PA-8G2BB-JP / PA-8G2BB-AU /
- Model Number (White):PA-8G2BW-CN / PA-8G2BW-UK / PA-8G2BW-US / PA-8G2BW-EU / PA-8G2BW-JP / PA-8G2BW-AU
- EAN (Black):5056547204765 (CN) / 5056547204772 (UK) / 5056547204789 (US) / 5056547204796 (EU) / 5056547204802 (JP) / 5056547204819 (AU) /
- EAN (White):5056547206387 (CN) / 5056547206394 (UK) / 5056547206400 (US) / 5056547206417 (EU) / 5056547206424 (JP) / 5056547206431 (AU)
- UPC (Black):810074844833 (CN) / 810074844840 (UK) / 810074844857 (US) / 810074844864 (EU) / 810074844871 (JP) / 810074844888 (AU) /
- UPC (White):810074846448 (CN) / 810074846455 (UK) / 810074846462 (US) / 810074846479 (EU) / 810074846486 (JP) / 810074846493 (AU)
Downloads
Documentation
Download C Series Gold ATX 3.1 Digital Manual (Multi-language) pdf
| Gewicht | 2 kg |
|---|---|
| Afmetingen | 16 × 15 × 8,6 cm |
