Enclosure for 1x NVMe
with USB 3.1 (Gen 2) Type-C® and Type-A interface
- ROBUST: A special aluminium alloy makes this enclosure very stable and protects it from external damage. Excellent heat dissipation is achieved through an elegant cooling fin design.
- VERSATILE: All common lengths of NVMe SSDs are supported by the enclosure (22×30/42/60/80). So you don’t have to rely on just one length, but can decide variably.
- VERY FAST: USB 3.1 (Gen 2) enables transfer rates of up to 10 Gbit/s. Your data is transferred super fast. So your data is transferred super fast. This case can also be used for a mobile operating system.
- COOLING: The heat inside the heat sink is ideally conducted to the outside of the enclosure via the heat sink and the silicone heat pad. This keeps the NVMe SSD cool even under full load.
- SAFE: The enclosure has a write protection switch on the front. This ensures that data can be read, but it is not possible to change it.
External Type-C™ enclosure for M.2 SSD
USB 3.1 (Gen 2) Type-C™ up to 10 Gbit/s
Patented heatsink and thermal pad inside
Plug & Play and HotSwap
LED for power, access, and write protection
Keep it cool

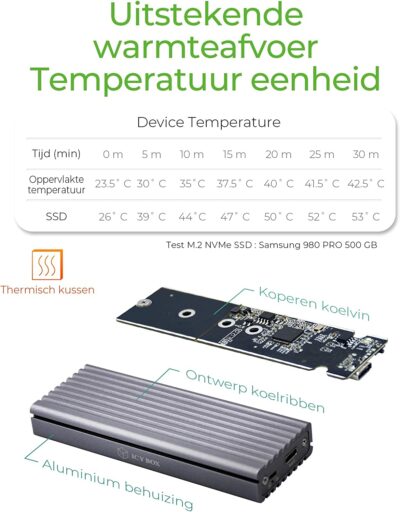

The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable

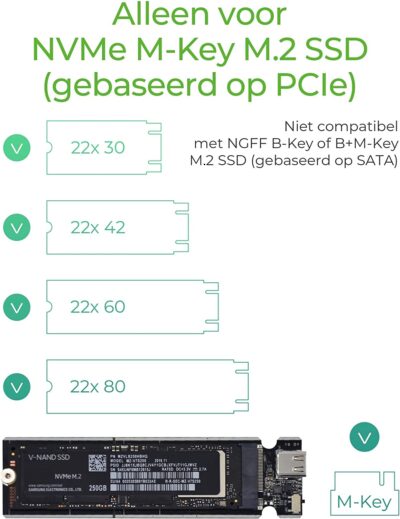

The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.
Click – Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click – safe.
|Internal interface||PCIe 3.0 x2|
|Host connector||USB 3.1 (Gen 2) Type-C™|
|M.2 SSD size||M-Key 22x 30/42/60/80 mm|
|Output interface||USB 3.1 (Gen 2) Type-C™|
|Transfer rate||Up to 10 Gbit/s|
|Supported PCIe cards||1x M.2 SSD|
|LED||Power, access, and write protection|
|Operating system||Windows®, macOS®|
|Packing unit||40 Stk./carton|
|Total weight||8.7 kg/carton|
|Gross weight (incl. packing)||0,205 kg|
|Net weight||0,100 kg|
|Dimension of packing box||25x100x200 mm|

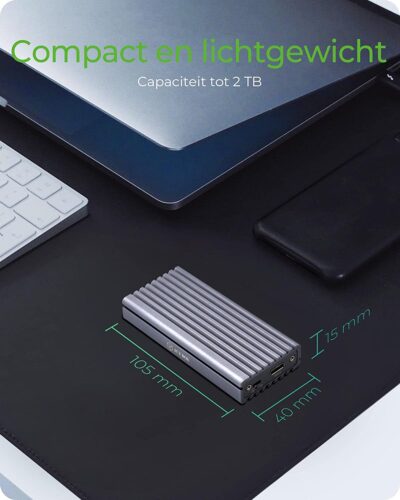

|Dimension of article||105x40x15 mm|
|Country of origin||China|
