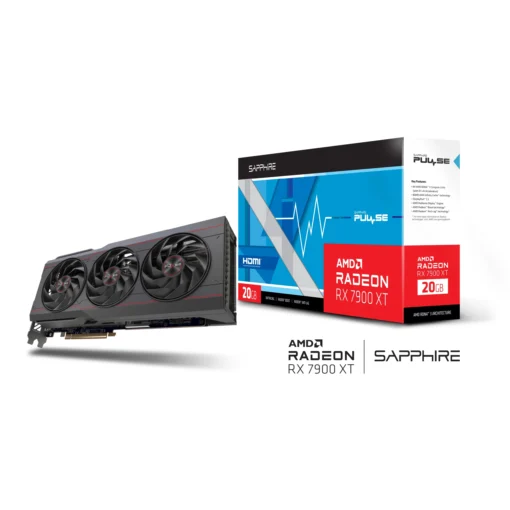

Sapphire PULSE AMD Radeon RX 7900 XT – Radeon RX 7900 XT – 20 GB GDDR6

Name: Sapphire PULSE AMD Radeon RX 7900 XT - Radeon RX 7900 XT - 20 GB GDDR6
Brand: Sapphire
SKU: 11323-02-20G
Price: 657.02 EUR
Availability: BackOrder

€ 794,99

Sapphire PULSE AMD Radeon™ RX 7900 XT – Grafische kaart – Radeon RX 7900 XT – 20 GB GDDR6 – PCIe 4.0 x16 – HDMI, 3 x DisplayPort

Beschikbaar via nabestelling

EAN: 4895106293304 Artikelnummer: 11323-02-20G Categorieën: Componenten, Videokaarten Merk: Sapphire

PULSE AMD Radeon™ RX 7900 XT 20GB

GPU: Boost Clock: Up to 2450 MHz
GPU: Game Clock: Up to 2075 MHz
Memory: 20GB/320 bit DDR6. 20 Gbps Effective
Stream Processors: 5376
RDNA™ 3 Architecture
Ray Accelerator: 84

AMD RDNA™ 3 Architecture

20GB of GDDR6 memory

AMD Radiance Display™ Engine

DisplayPort™ 2.1

AMD FidelityFX™ Super Resolution

AMD Radeon Super Resolution

4K and Beyond

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Graphics Card Supporter

Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Specifications

#SKU#: 11323-02-20G SAPPHIRE PULSE AMD Radeon™ RX 7900 XT, 20GB, AMD RDNA™ 3

GPU

AMD Radeon™ RX 7900 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2450 MHz
Game Clock: Up to 2075 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

5376

Compute Units

84 CU (with RT+AI Accelerators)

Infinity Cache

80MB

Ray Accelerators

Memory Size/Bus

20GB/320 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI
2x DisplayPort

BIOS Support

UEFI

Game Index

Sapphire Features

Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost

Accessories Bundled

Graphics Card Supporter

AMD Features

AMD RDNA™ 3 Architecture
84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
80MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1Support
AMD Radiance Display™ Engine
20GB GDDR6 on 320-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ technology

Cooling

3 Fans

Form Factor

2.7 slot, ATX
Dimension: 313(L)X 133.75(W)X 52.67 (H)mm

Power Consumption

331W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
Colors of PCB or other components may differ from those illustrated.
SAPPHIRE reserves the right to update or revise specifications without prior notice.
All trademarks and logos are acknowledged as the property of their respective holders.

*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Grafische processor	AMD Radeon RX 7900 XT
Videogeheugen	20 GB – GDDR6
