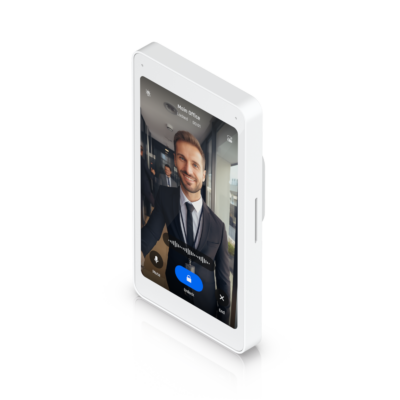

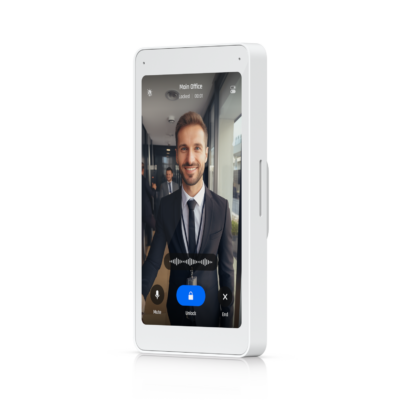

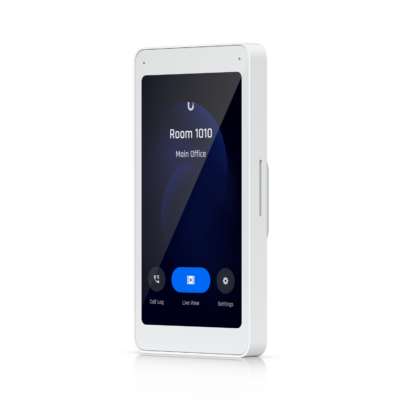

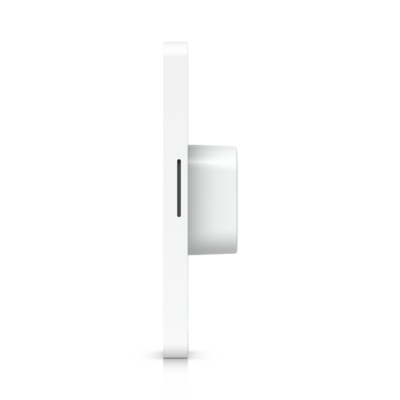

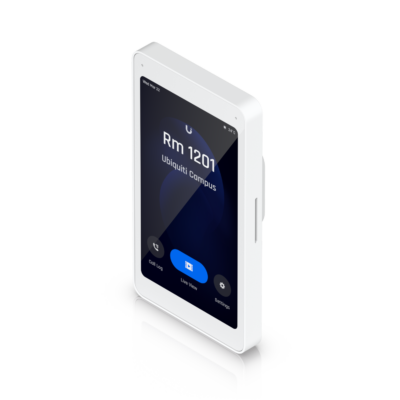

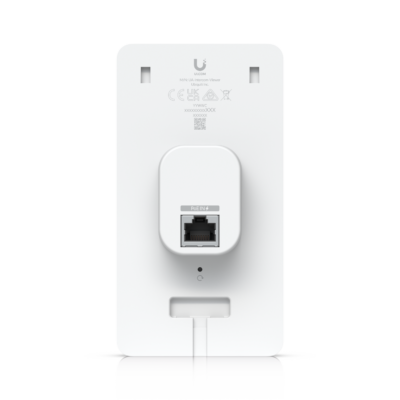

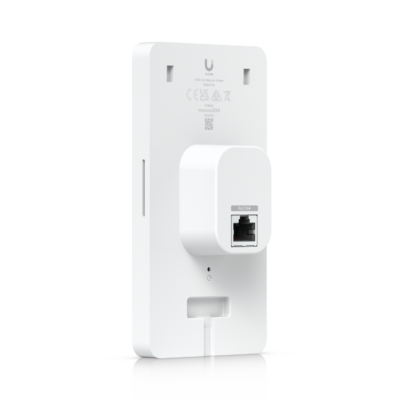

Intercom Viewer
UA-Intercom-Viewer-3

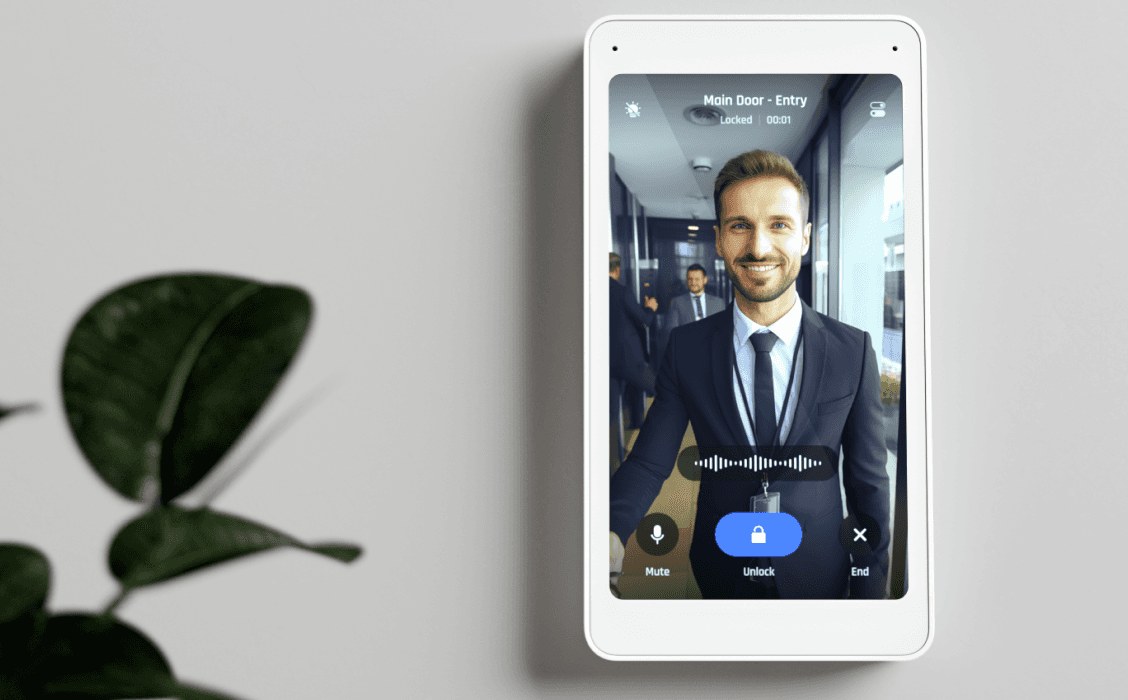

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.
Two-way audio

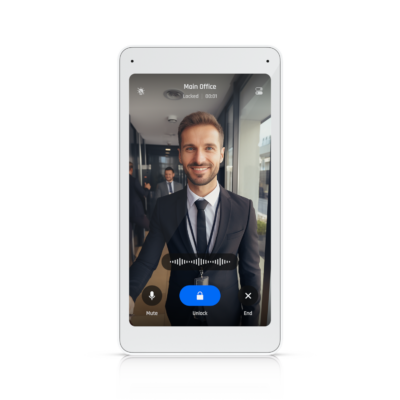

Instant live view
5″ touch display
Connect and power using a PoE switch
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3″) |
| Weight | 168 g (5.9 oz) |
| Enclosure materials | Glass, polycarbonate |
| Mount material | Aluminum alloy |

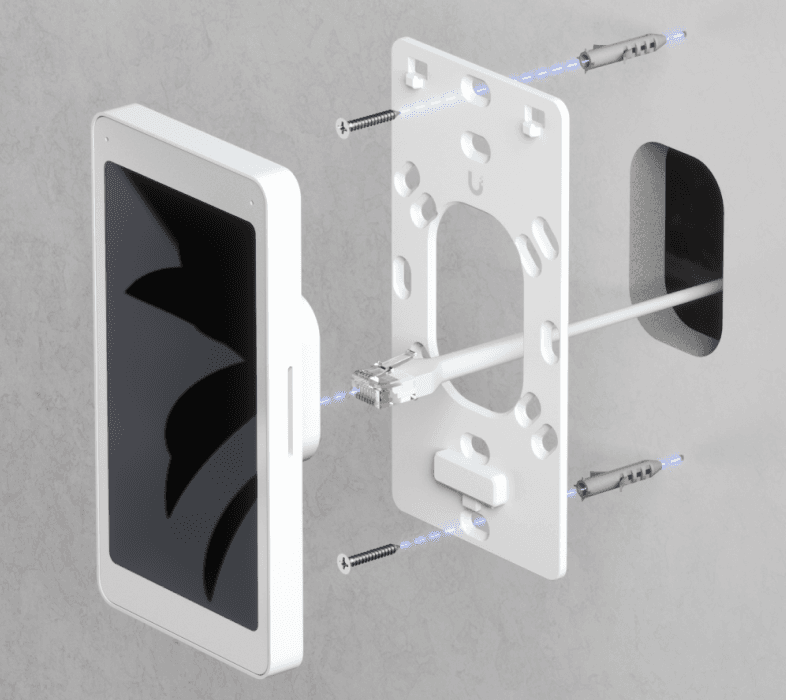

| Mounting | Wall (Included) Gang box mount (Gang box not included) |
| Hardware | |
| Networking interface | (1) 10/100 Mbps RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| Display | 127 mm (5″) diagonal |
| Resolution | 720 x 1280 (9:16) |
| Display luminance | 300 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Screen orientation | Portrait |
| Microphone | Yes |
| Speaker | Yes |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 1.22.17 and later |
| Gewicht | 0,504 kg |
|---|---|
| Afmetingen | 13,50 × 7,20 × 3,18 cm |
