Ubiquiti UniFi Enterprise Campus 24 PoE
€ 2.819,30
Ubiquiti Enterprise Campus 24 PoE – 2.5 GbE RJ45 (8) (All PoE+++), 10 GbE RJ45 (16) (All PoE+++), 25G SFP28 (2) – (2) 600W modules
Enterprise Campus 24 PoE
ECS-24-PoE (1050W)
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

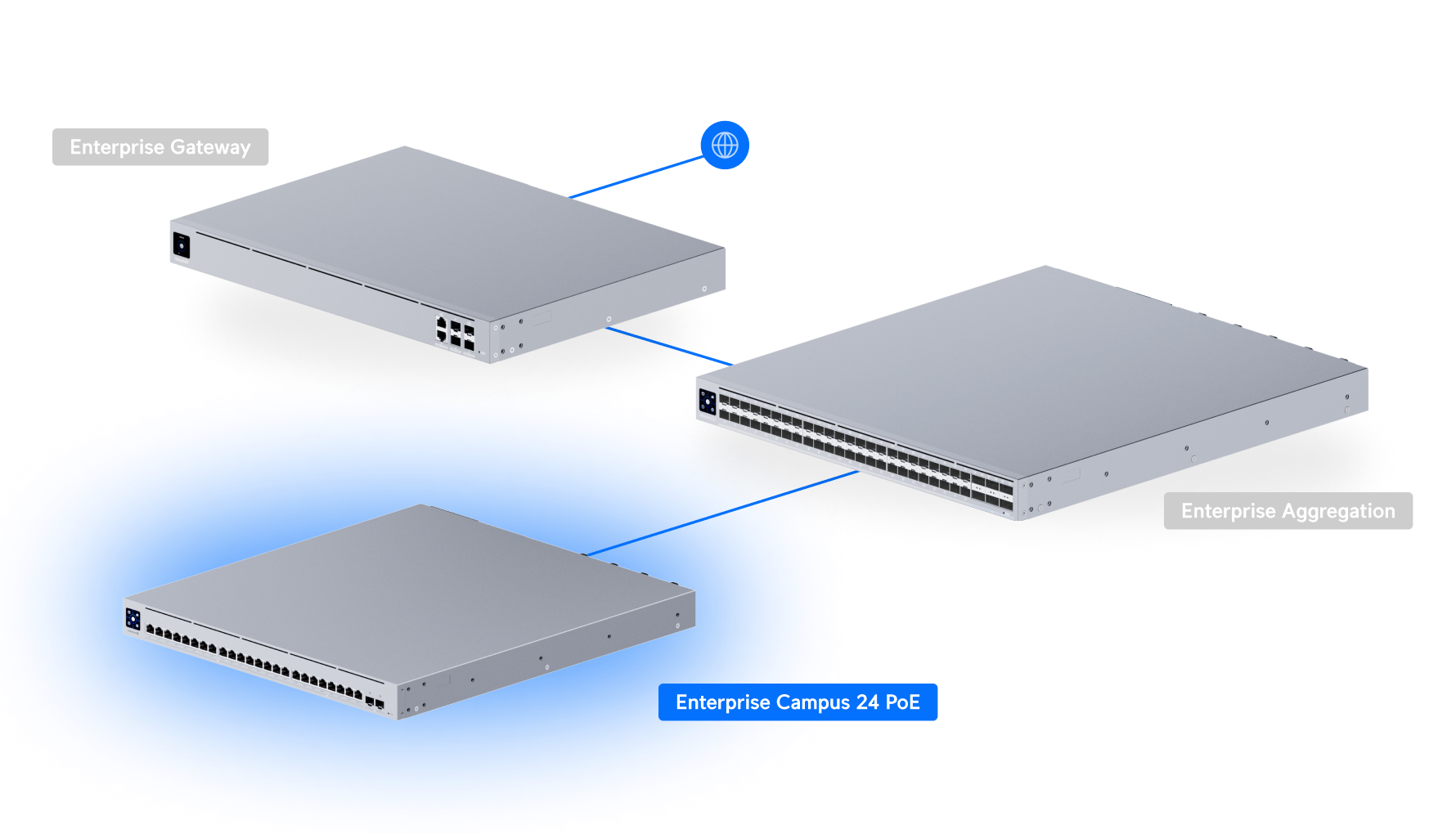

Note. 1,050W total PoE availability requires Shared Mode (coming soon). Recommend being paired with Enterprise Campus Aggregation.
Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Overview
Dimensions
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″)
Port Layout
2.5 GbE RJ45
8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy

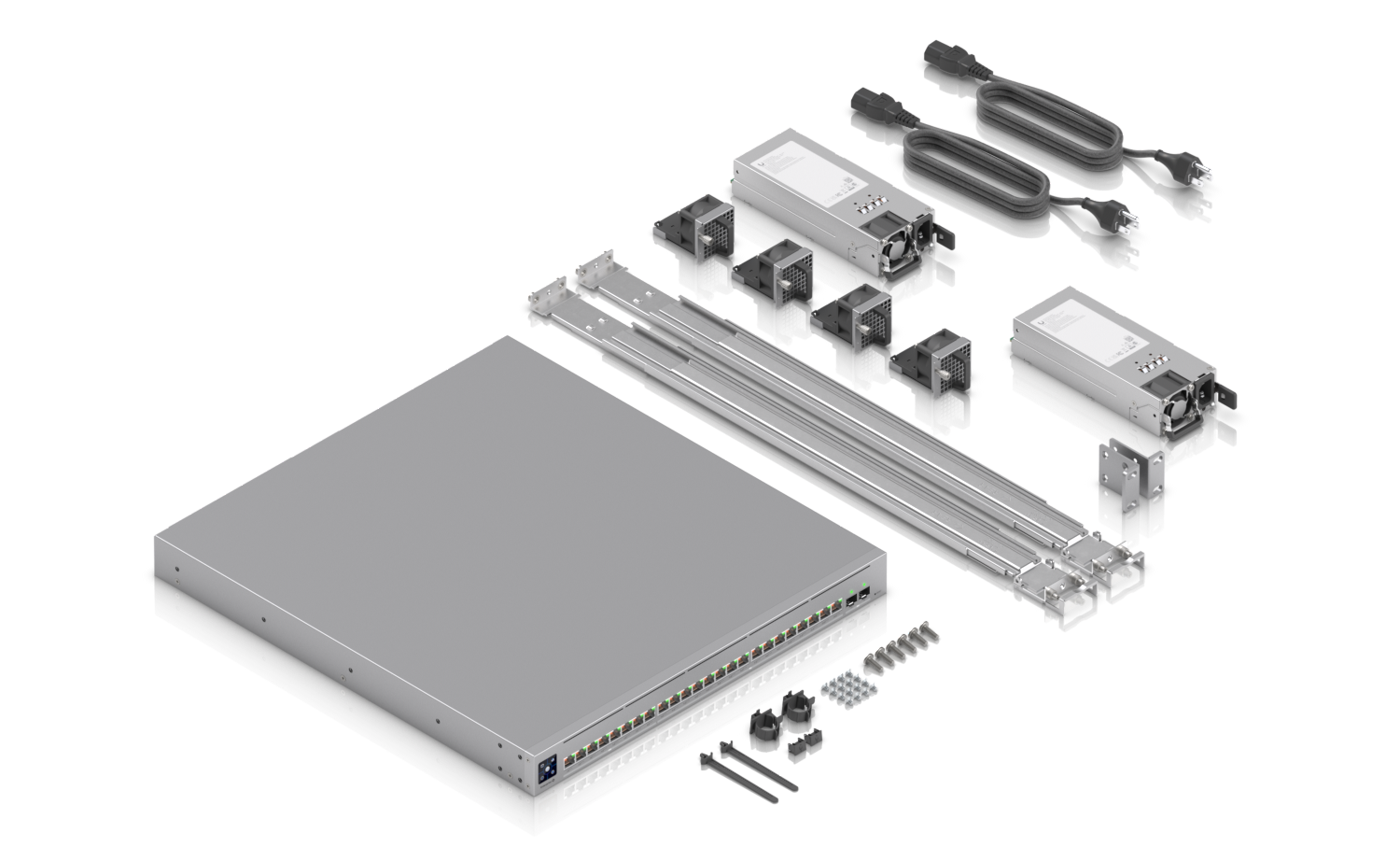

(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
Yes
Form Factor
Rack Mount (1U, Full-Depth)
Etherlighting™
Yes
Performance
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Layer 3 Features
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
1,50W (Excluding PoE Output) 2,400W (Including PoE Output)
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3″ touchscreen
Fan Method
(4) hot-swappable fan modules
ESD/EMP Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
Yes
SFP28
Yes
LEDs
Ethernet
Yes
System
Yes
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
| Gewicht | 9,56 kg |
|---|---|
| Afmetingen | 44,24 × 4,37 × 49,6 cm |
