Gateway Fiber
UXG-Fiber (30W)
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″)
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45

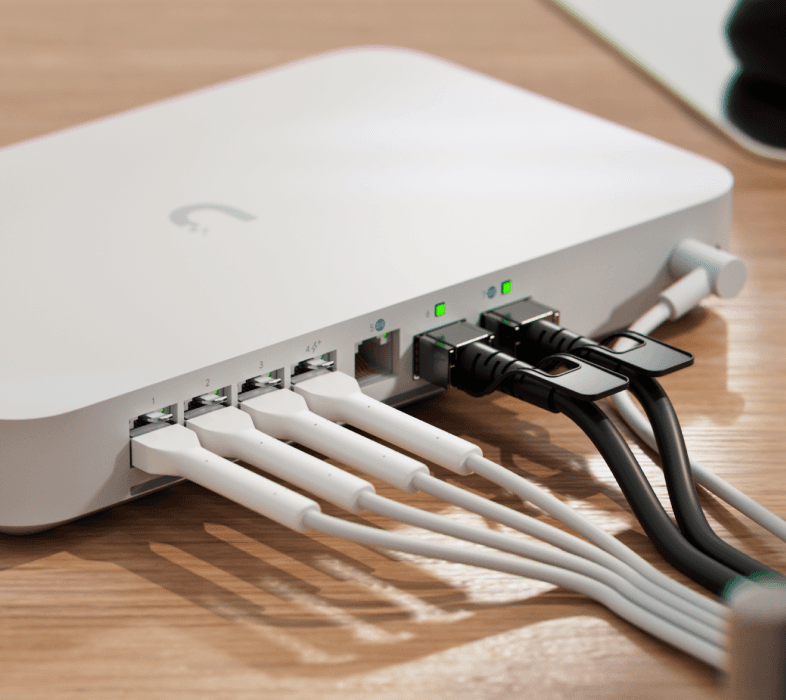

Port Layout
2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10 GbE RJ45
1 (10G/2.5G/1G)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ With CyberSecure
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
PoE Budget
30W
Max. PoE Wattage per Port by PSE
PoE+
30W
Voltage Range PoE Mode
50—57V
Max. Power Consumption
25W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
2 GB
Weight
605 g (1.3 lb)
Enclosure Material
Polycarbonate
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
SFP+
✓
System
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
