Third-Party SIM Card Support.

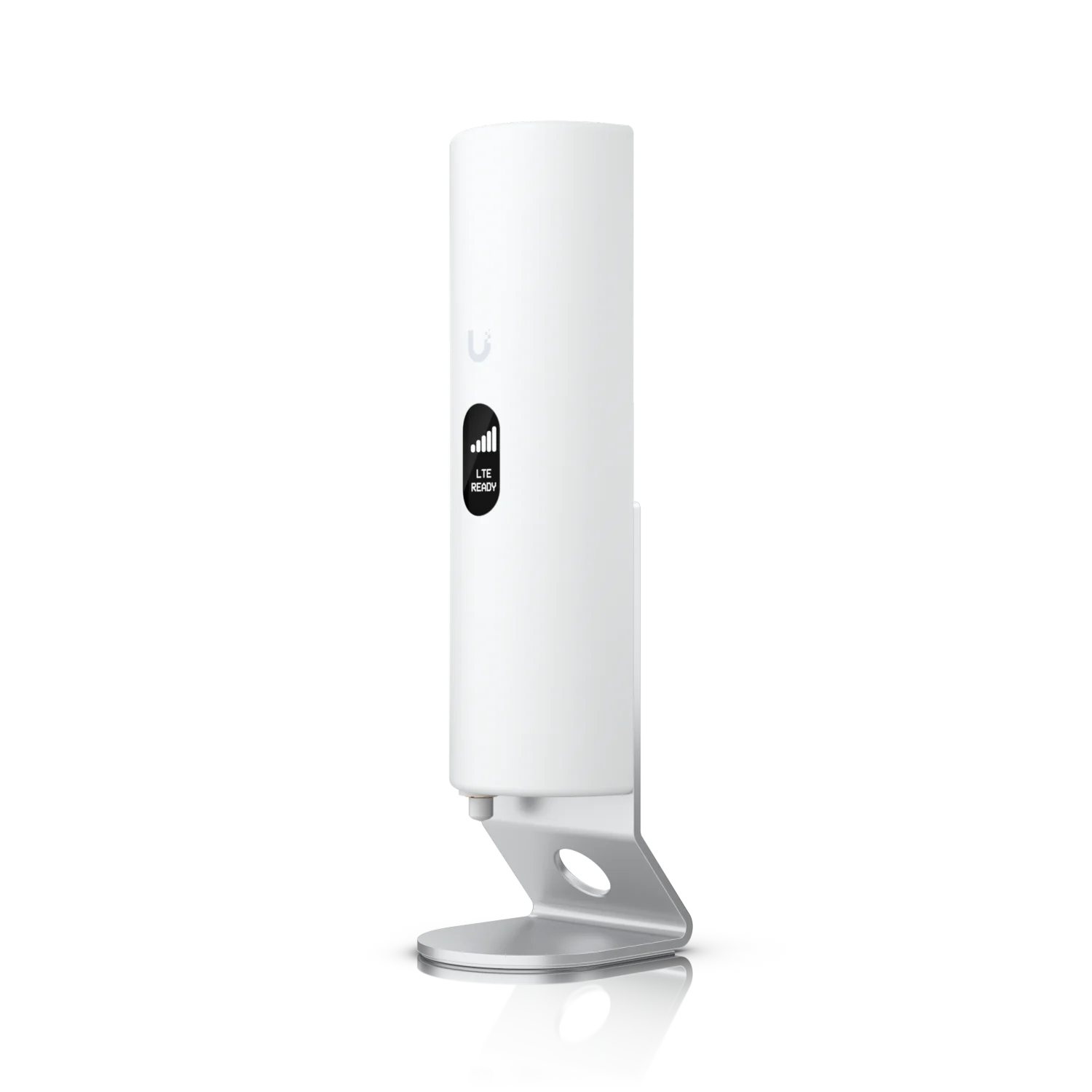

Avoid internet downtime and lost productivity by adding a UniFi LTE Pro to your existing UniFi network.

UniFi LTE Pro provides backup cellular internet connectivity to ensure your UniFi WAN network is always running. This model works in the EU region and supports European LTE and WCDMA bands. It has a Nano SIM card slot for your own card. Insert the Nano SIM, connect to any switch port in your corporate network, and activate the device.

Features:

• • • Automatic redundant WAN connection
    • Integrated with UniFi Network application
    • PoE+ powered
    • Nano SIM card slot
    • Supports European bands: LTE (1, 3, 7, 8, 20, 28), WCDMA (1, 8)

Requirements: UniFi OS Console running UniFi Network application version 6.5.55 and later, or a UniFi Gateway.

Note: Performance is subject to change based on network coverage and availability in your area.

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical
Dimensions	66 x 202 x 32 mm (2.60 x 7.96 x 1.27″”)
Weight	Without stand: 223 g (7.86 oz) With stand: 336 g (11.85 oz)
Enclosure material	Polycarbonate
Mount materials	Stand: aluminum Wall mount: polycarbonate
Hardware
Processor	74 Kc MIPS Processor at 775 MHz
Memory information	128 MB DDR2
Management interface	Ethernet
Networking interface	(2) 10/100/1000 MbE RJ45 ports WP7607 LTE
SIM	Nano-SIM
LTE bands	CAT4, B1/3/7/8/20/28
LCM display	1.54″ screen
Power method	PoE+, Passive PoE (48V)
Power Supply	UniFi PoE switch 48V, 0.5A PoE adapter
Supported voltage range	44—57V DC
Max. power consumption	8.5W
Max. TX power	19 dBm
MIMO	U-LTE 2 x 2 Category 4 LTE radio
Throughput speeds	150 Mbps
Antenna gain LTE B1 B3 B7 B8 B20 B28	2 dBi 1.5 dBi 2 dBi 3.5 dBi 2 dBi 2 dBi
Button	Factory reset
Mounting	Wall mount, foot stand (included)
ESD/EMP protection	Air/Contact: ± 24 kV
Operating temperature	-10 to 60° C (-14 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
