Ubiquiti UniFi Mobile Router Ultra
€ 115,85
5 op voorraad
Ubiquiti UniFi Mobile Router Ultra – (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4 – Nano SIM – (Power adapter and cable not included; please use a 10W USB-C or ATX power supply.)
Mobile Router Ultra
UMR-Ultra
Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
Note. UMR-Ultra comes with a 180 days mobility cloud free trial and is available for purchase at €2 / £2 per month, €19 / £19 per year, or €49 / £49 per 3 years per Mobile Router.
Power adapter and cable not included; please use a 10W USB-C or ATX power supply.
Overview
Dimensions

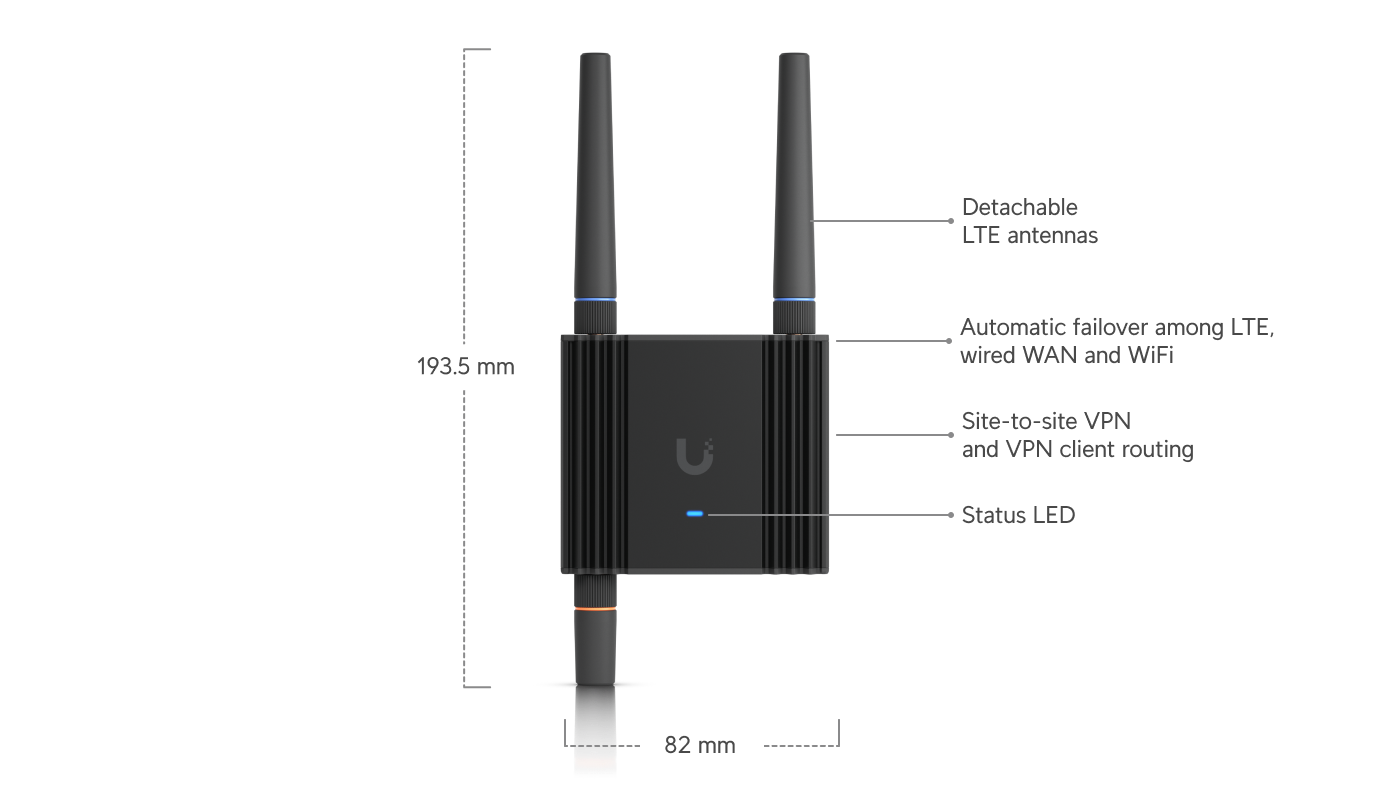

Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1″) With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1″)
Networking Interface
(2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM
Nano SIM
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
Mounting
DIN rail, Wall (Mounts Included)
Mechanical
Weight
Device: 200 g (7.1 oz) DIN rail/wall mounts: 20 g (0.7 oz)
Enclosure Material
Polycarbonate
Mount Material
Wall Mount: Polycarbonate DIN Rail Mount: Steel
Features
WAN
Priority & Fallback
Yes
Cellular
Yes
WiFi
Yes
Ethernet
Yes
LTE Passthrough mode
Yes
Ethernet Bridge Mode
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Site-to-Site VPN
WireGuard
Yes
WiFi Standard
WiFi 4
Port Forwarding
Yes
Firewall
Yes
Static Routes
Yes
Networking
Supported Data Rates
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 150 Mbps (MCS0 – MCS7, HT 20/40)
Hardware
Management
Ethernet WiFi
LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps
Antennas
Ports
(1) Mobile 1: SMA female (1Rx) (1) Mobile 2: SMA female (1Tx/1Rx) (1) WiFi: RP-SMA female
Type
(2) External LTE antenna (1) External WiFi (1) External GPS
Max. TX Power
17 dBm
WiFi MIMO
1 x 1
Max. Power Consumption
5.7W
Power Method
USB Type-C (5V DC/2A), 4-pin ATX DC (9—30V DC)
LEDs
Status: Blue/White
Buttons
(1) Factory-reset
Ambient Operating Temperature
-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, UKCA
| Gewicht | 0,200 kg |
|---|---|
| Afmetingen | 19,35 × 8,2 × 2,6 cm |
