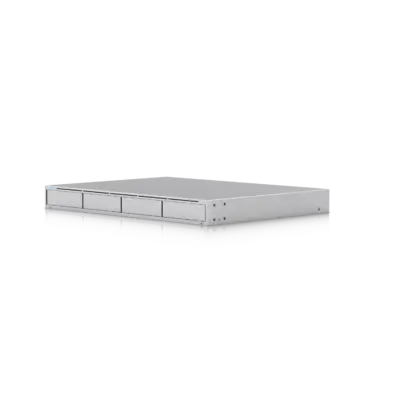

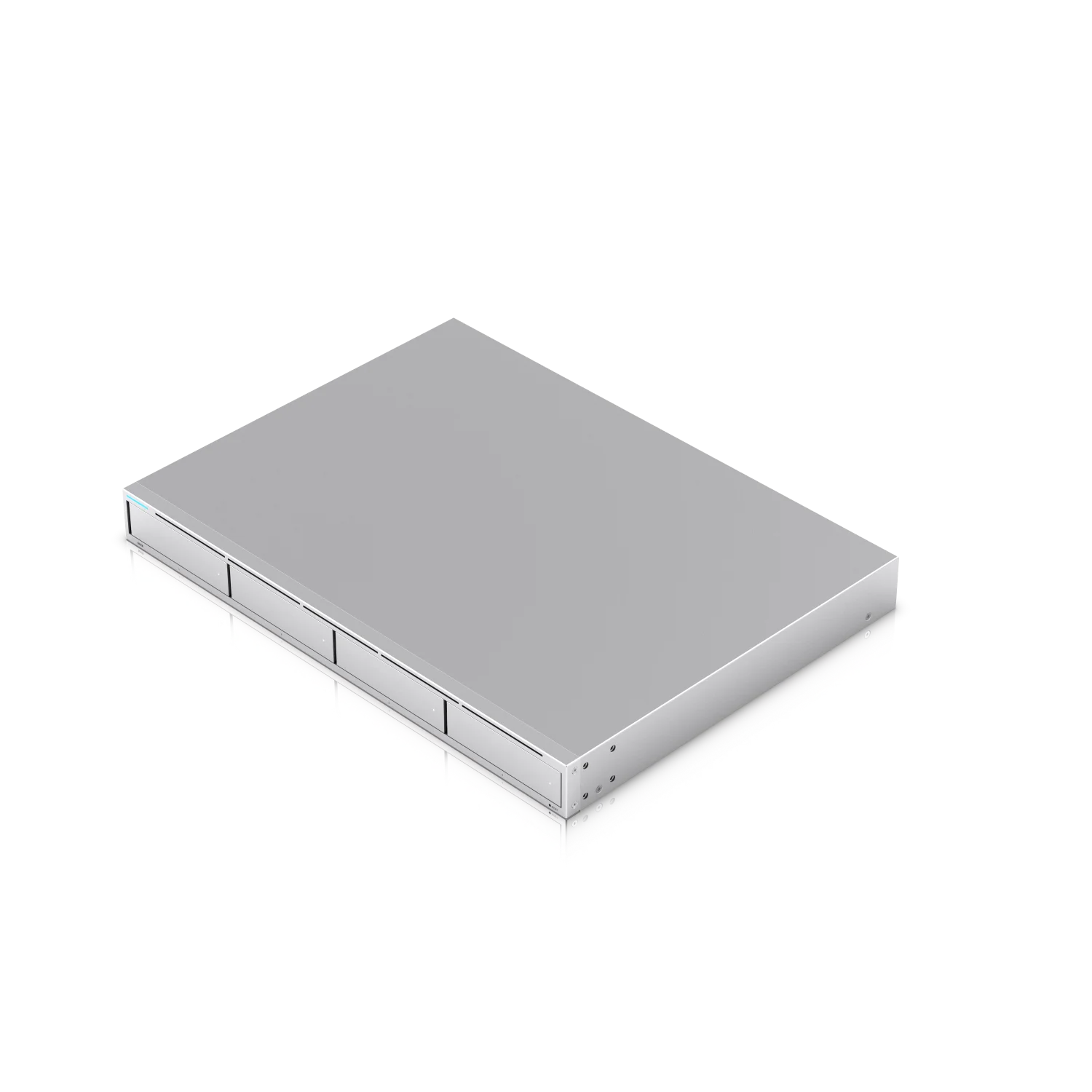

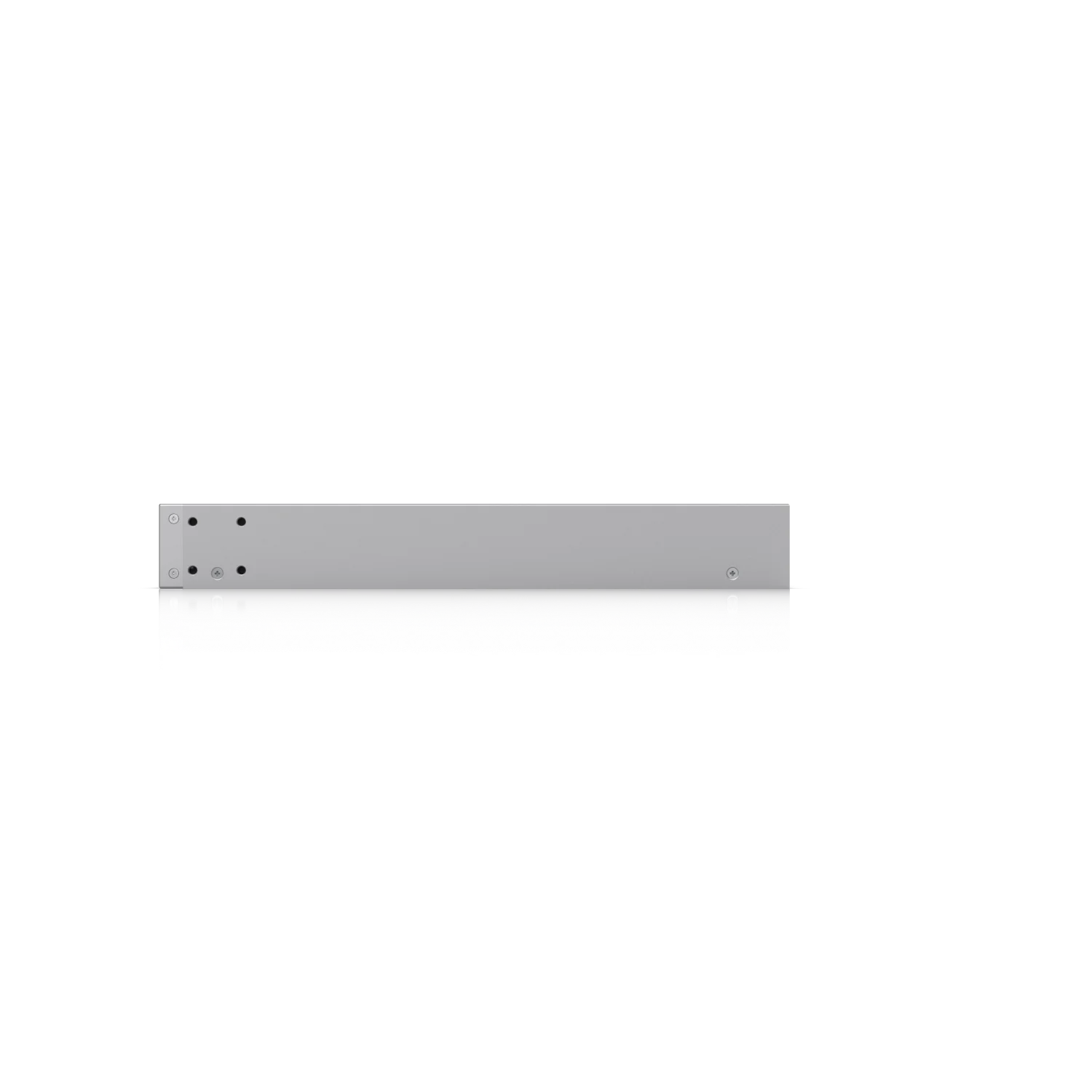

Ubiquiti UniFi Network Video Recorder

Features:

• • • (1) 10G SFP+ port
    • (1) GbE RJ45 port
    • Automatic HDD RAID configuration for data redundancy
    • Connects to a Power Backup for enhanced power redundancy

Managed with the UniFi Protect application

Note: Please ensure that your HDDs are compatible and meet Ubiquiti’s installation requirements.

• Works with the UniFi Protect Application

• Add 50 cameras to your system to cover every angle
• Free remote access for streaming and viewing your recordings
• Your video is stored on your own secure hardware, not a cloud server

• Note: stackable support for multiplying capacity is coming soon

• And much more

PRODUCT FEATURES

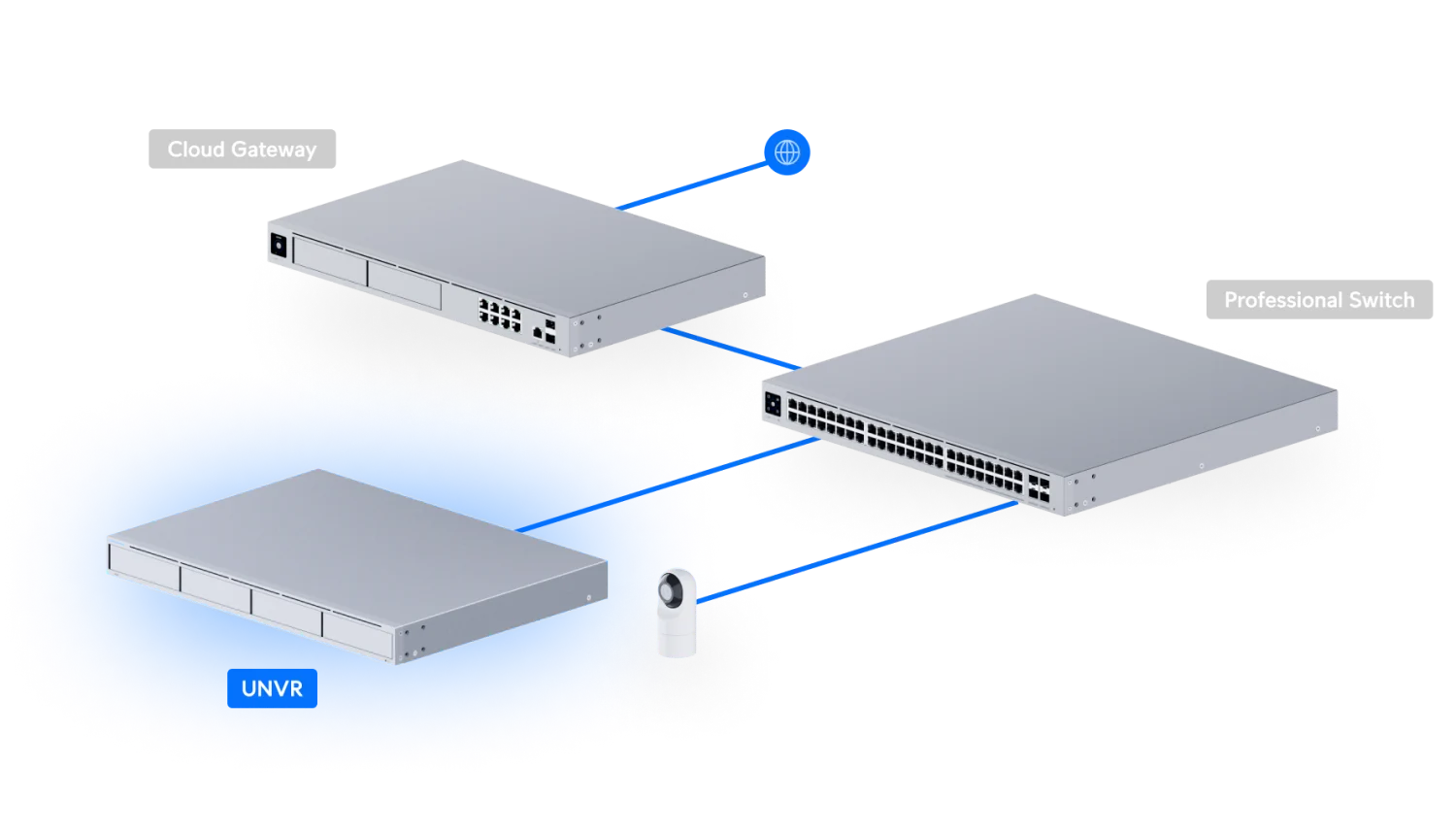

Simply scalable building video security

The platform designed for multi-camera deployments

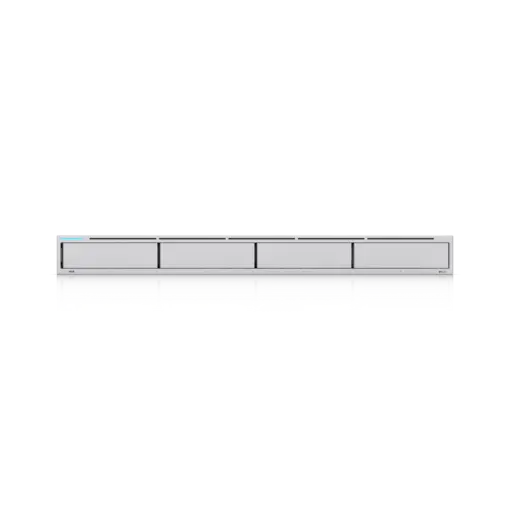

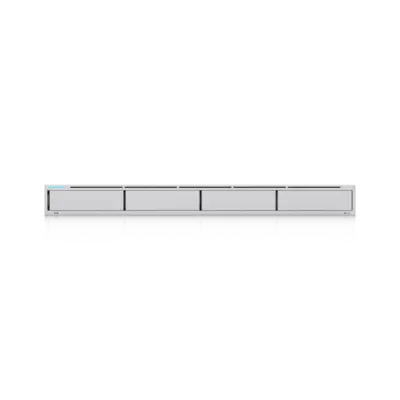

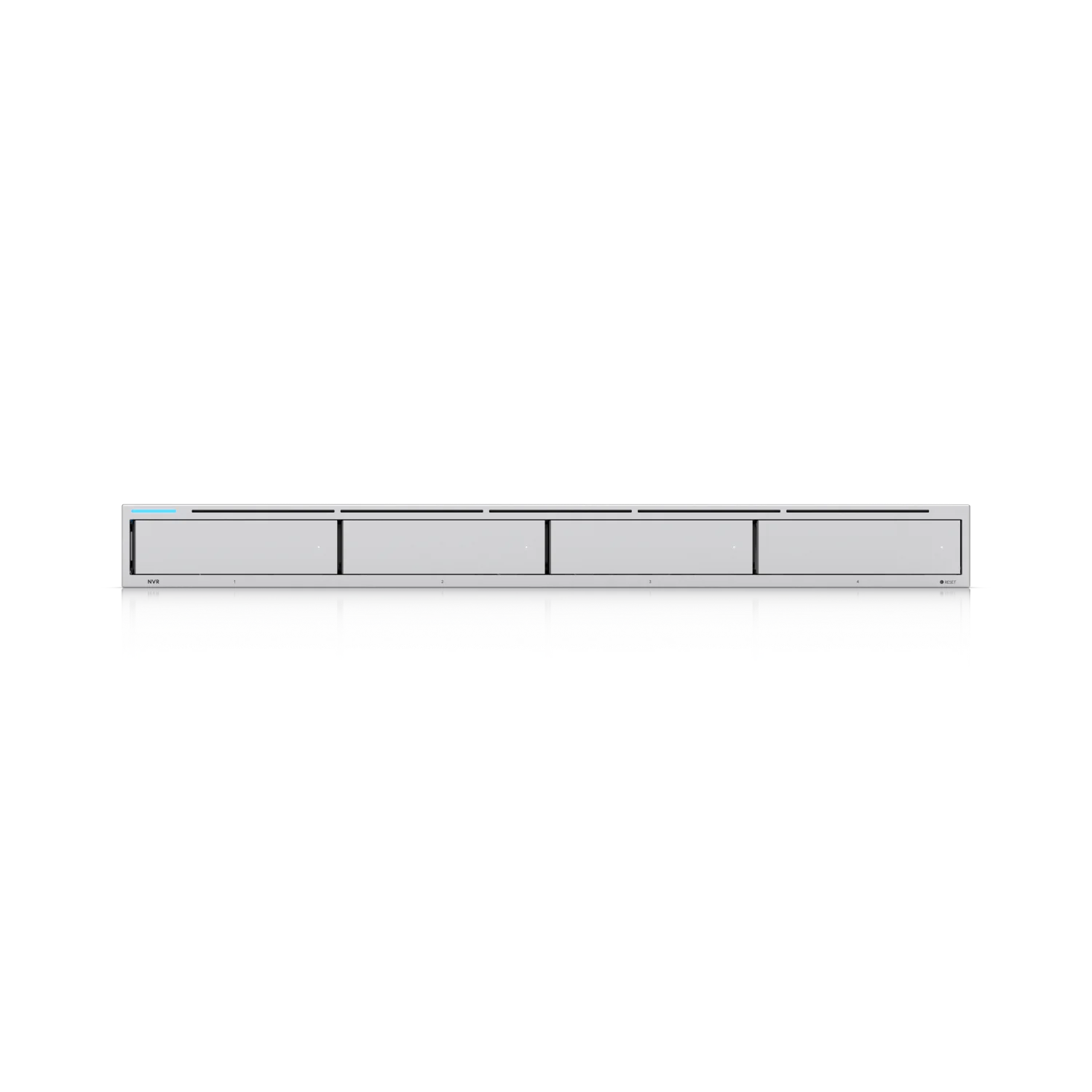

4x HDD Bay

2.5”/3.5” Drive Bay

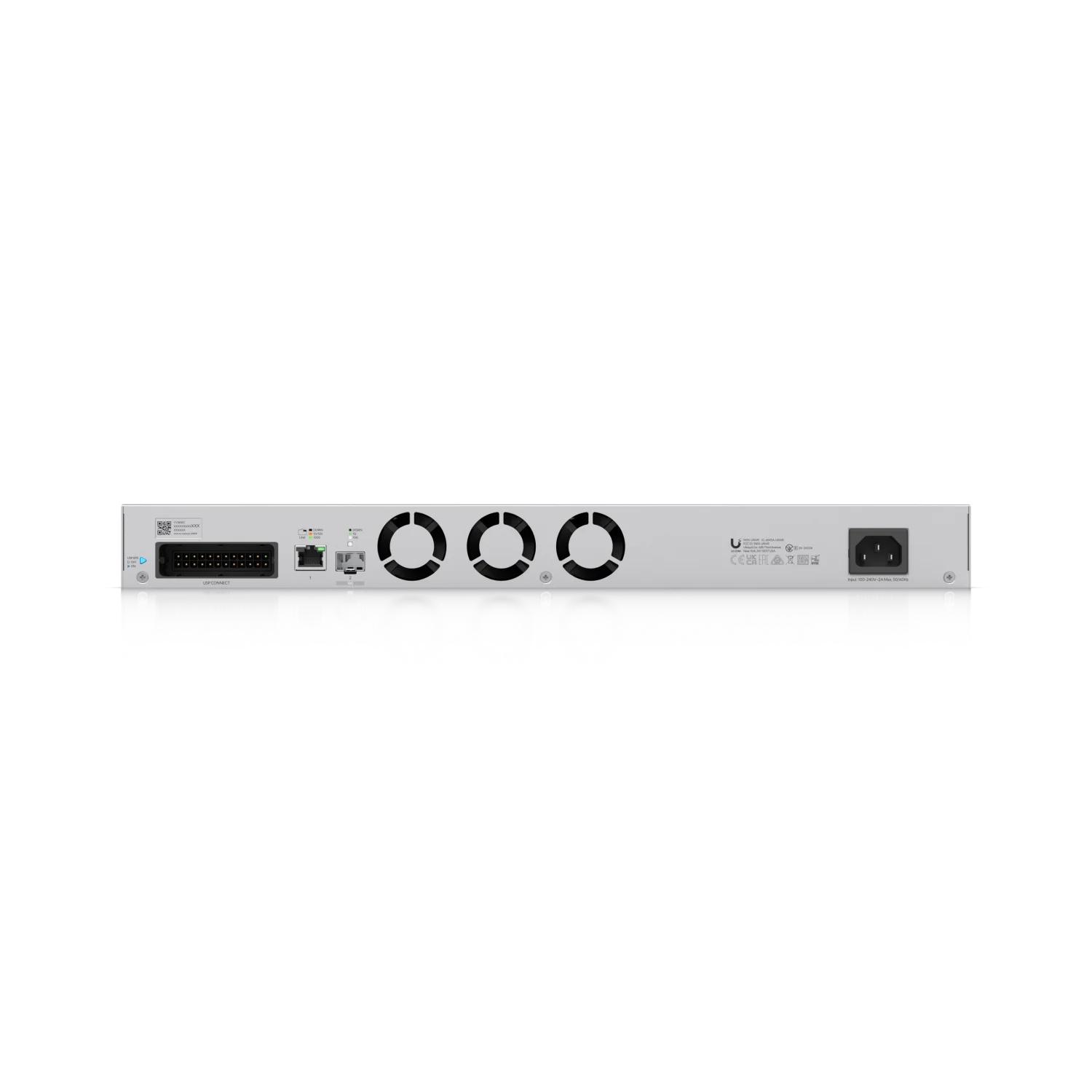

10 Gbps SFP+

10 Gbps SFP+ Port

1 Gbps RJ45

Gigabit RJ45 Port

Plug & Play System

UniFi Protect System with NVR

RAID 1 or RAID 5

Automated secure RAID 1 or RAID 5 configuration

Redundant Power

Redundant Power Support

Store your footage for 30 days

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

Redundant power support

Proprietary redundant power system designed to protect from sudden power supply module failure. Use USP-RPS^* or USW-Mission-Critical^**
* Sold separately ** Coming soon

Automized Secure RAID1/5 Configuration

The UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software

4k Cameras

4

HD Cameras

8

Normal quality

Storage for

38 days

Minimum 26 days of continuous motion recording



Know more about your network than ever before

Keep an Eye on Your Property From Any Device From Anywhere

PRODUCT SUMMARY

Mechanical

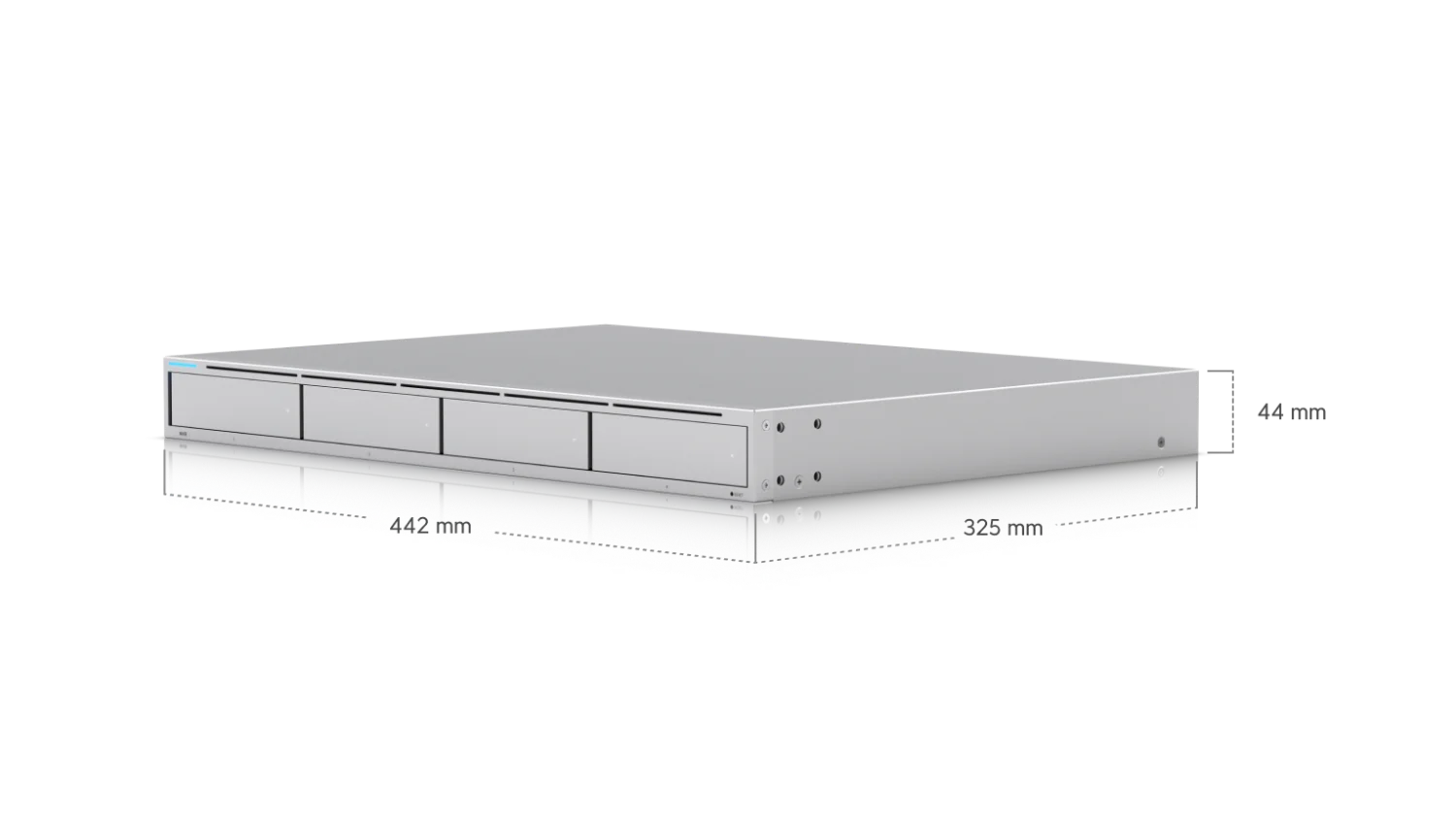

Dimensions	442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7″)
Weight	Without Rackmount Brackets: 5.11 kg (11.27 lb) With Rackmount Brackets: 5.20 kg (11.46 lb)
Enclosure Material	SGCC Steel
Hardware
Processor	Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System Memory	4 GB
On-Board Flash Storage	8 GB
Max. Power Consumption	100W
Max. Power Budget for Drives	75W
Power Method	(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 10.43A
Power Supply	AC/DC, Internal, 120W
Networking Interfaces	(1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet
Management Interface	Ethernet In-Band Management
ESD/EMP Protection	Air: ± 12kV, Contact: ± 8kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 – 95% Noncondensing
Certifications	FCC, CE, IC
LEDs
System	(1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue/White: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
Ethernet	Green: 1000 Mbps, Amber: 10/100 Mbps
SFP+	White: 10 Gbps, Green: 1 Gbps
HDD	Amber: Disk Error, White: Disk Detected
RPS	Blue: Ready
