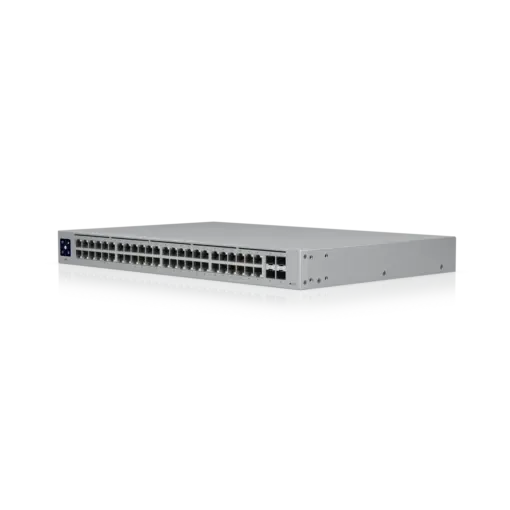

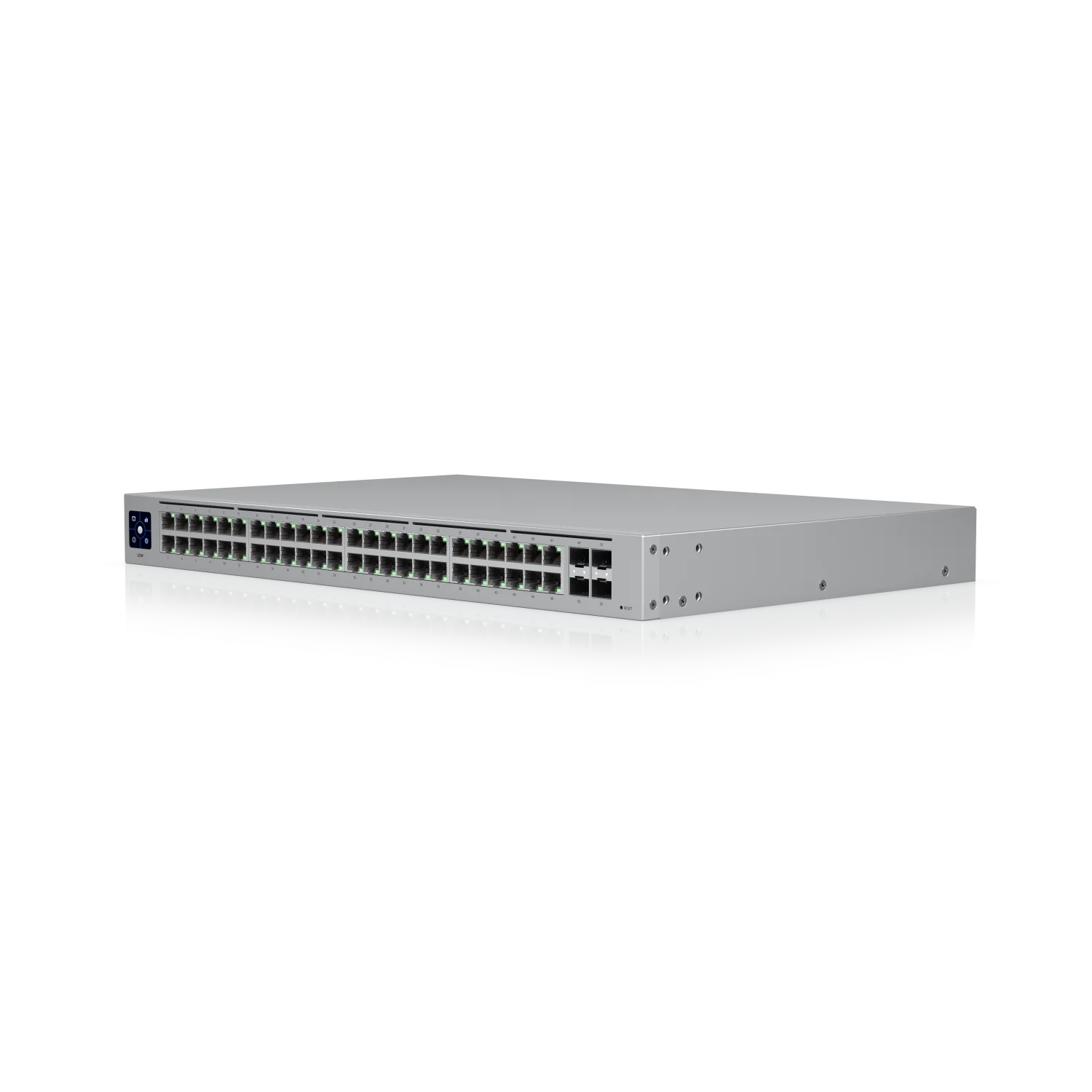

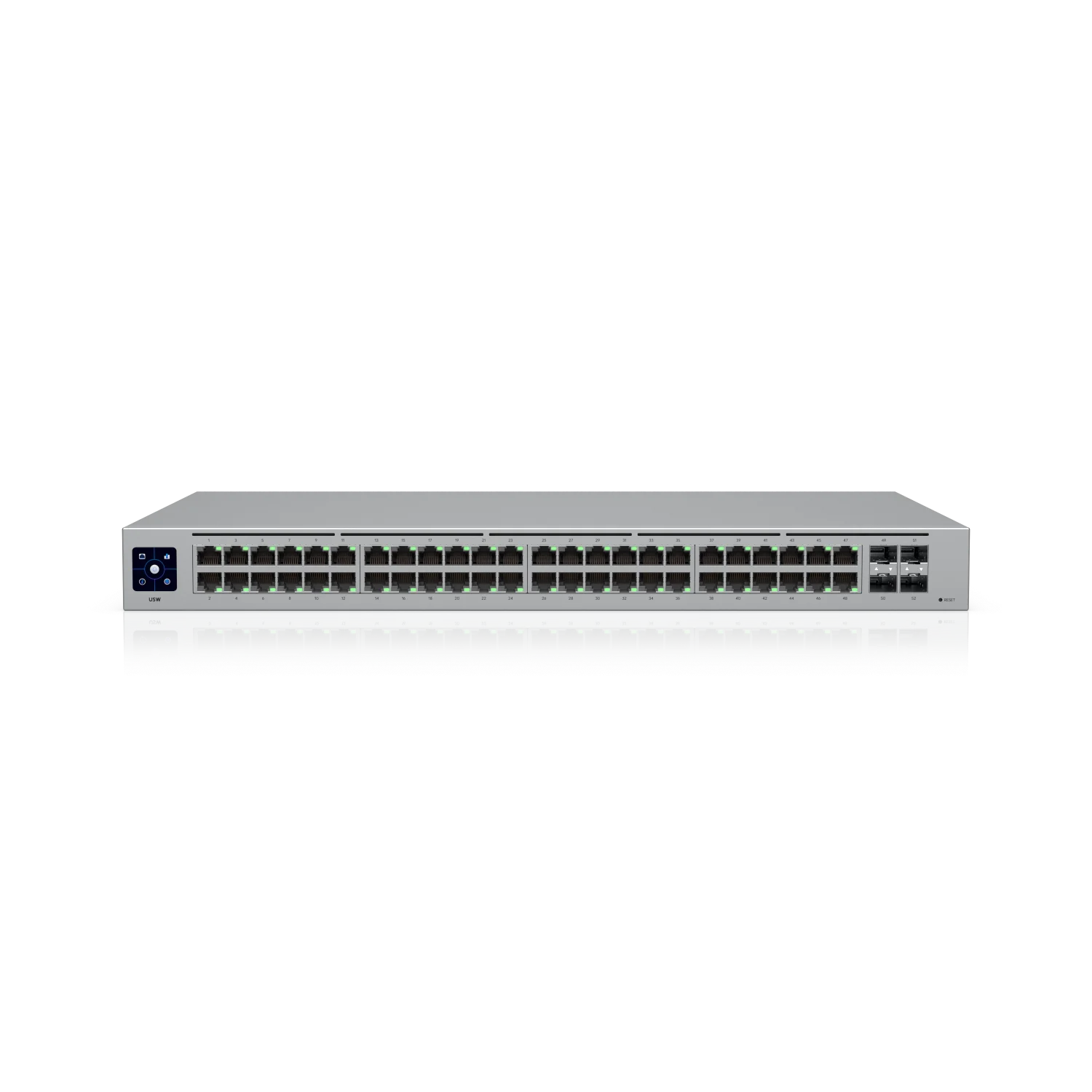

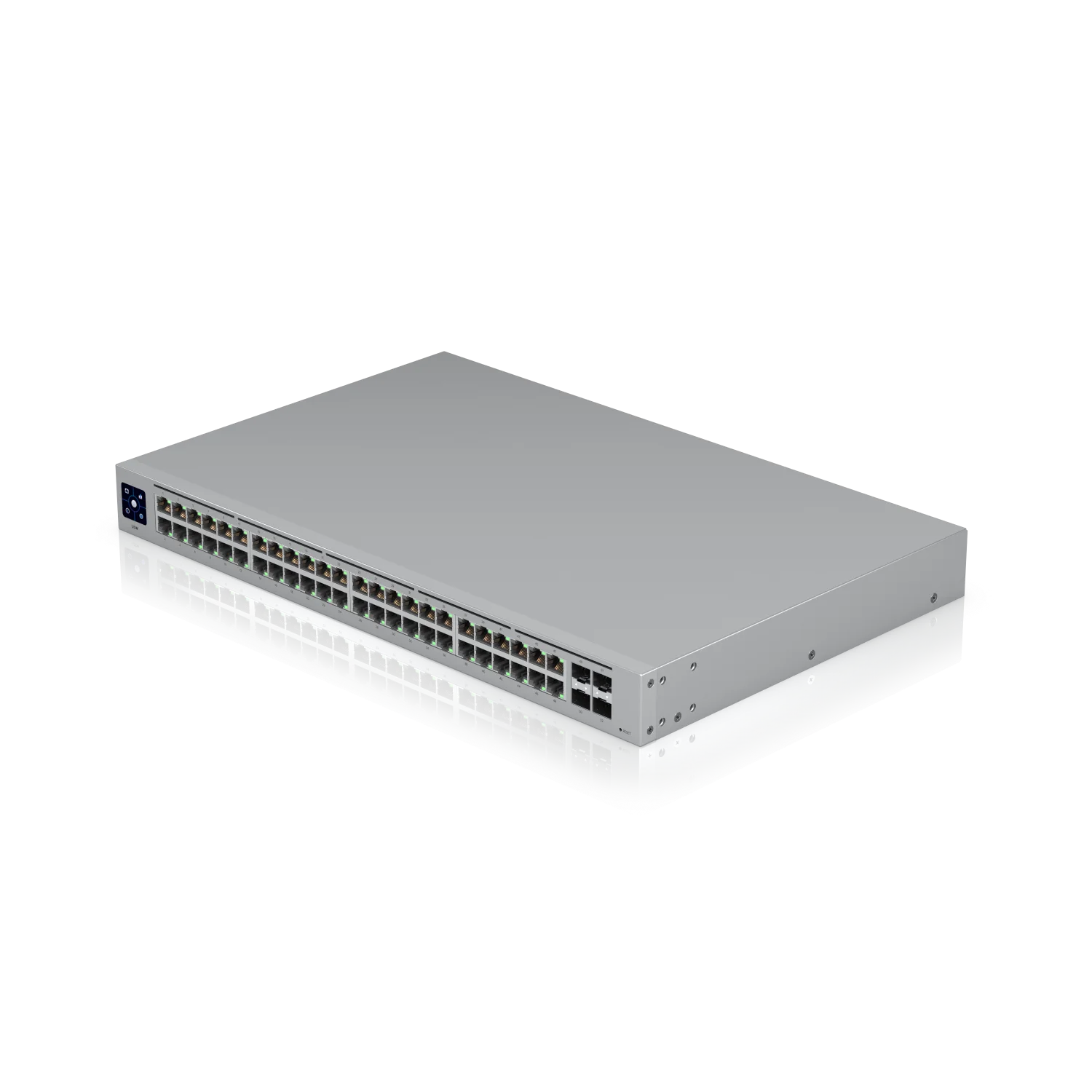

A 48-port, Layer 2 switch with a silent, fanless cooling system.

Features:

• • • (48) GbE RJ45 ports
    • (4) 1G SFP ports
    • 1.3″ LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 7.2.94 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical

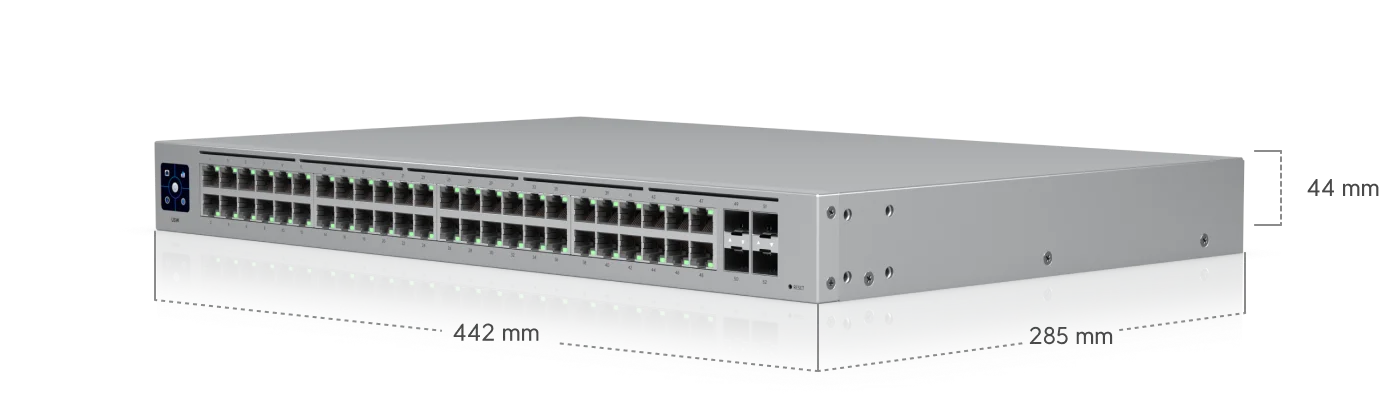

Dimensions	442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″)

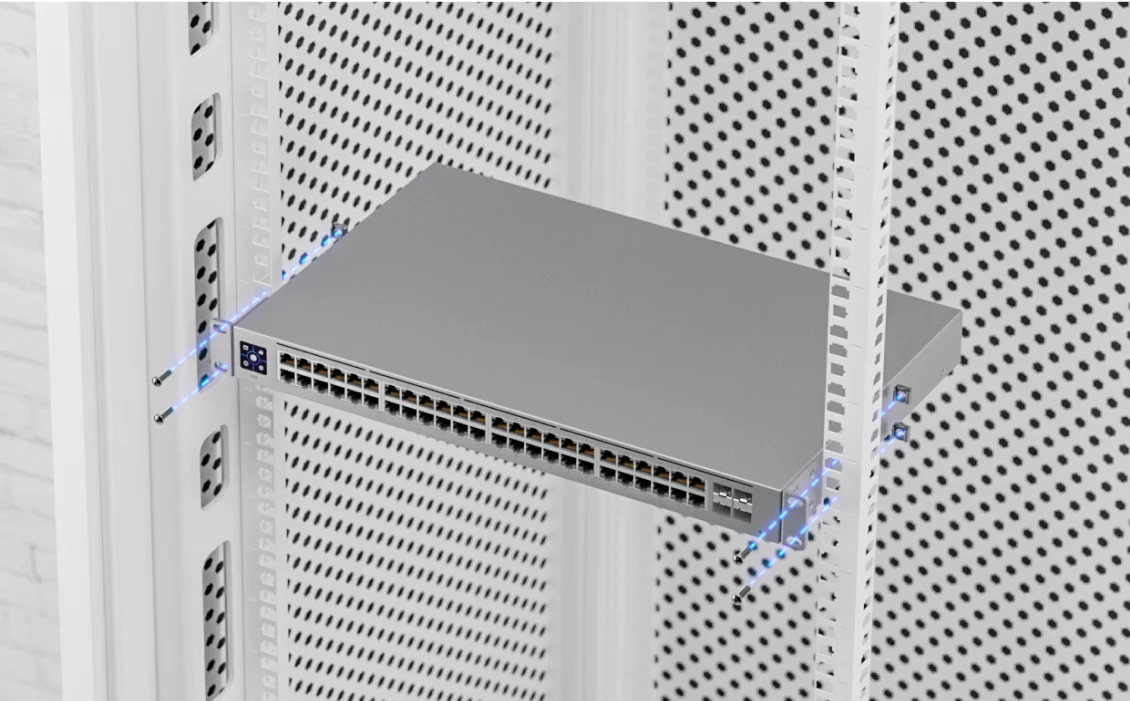

Weight	Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb)
Enclosure material	SGCC steel
Hardware
Networking interface	(48) 10/100/1,000 MbE RJ45 ports (4) 1G SFP Ethernet ports
Management interface	Ethernet In-Band
Total non-blocking line rate	52 Gbps

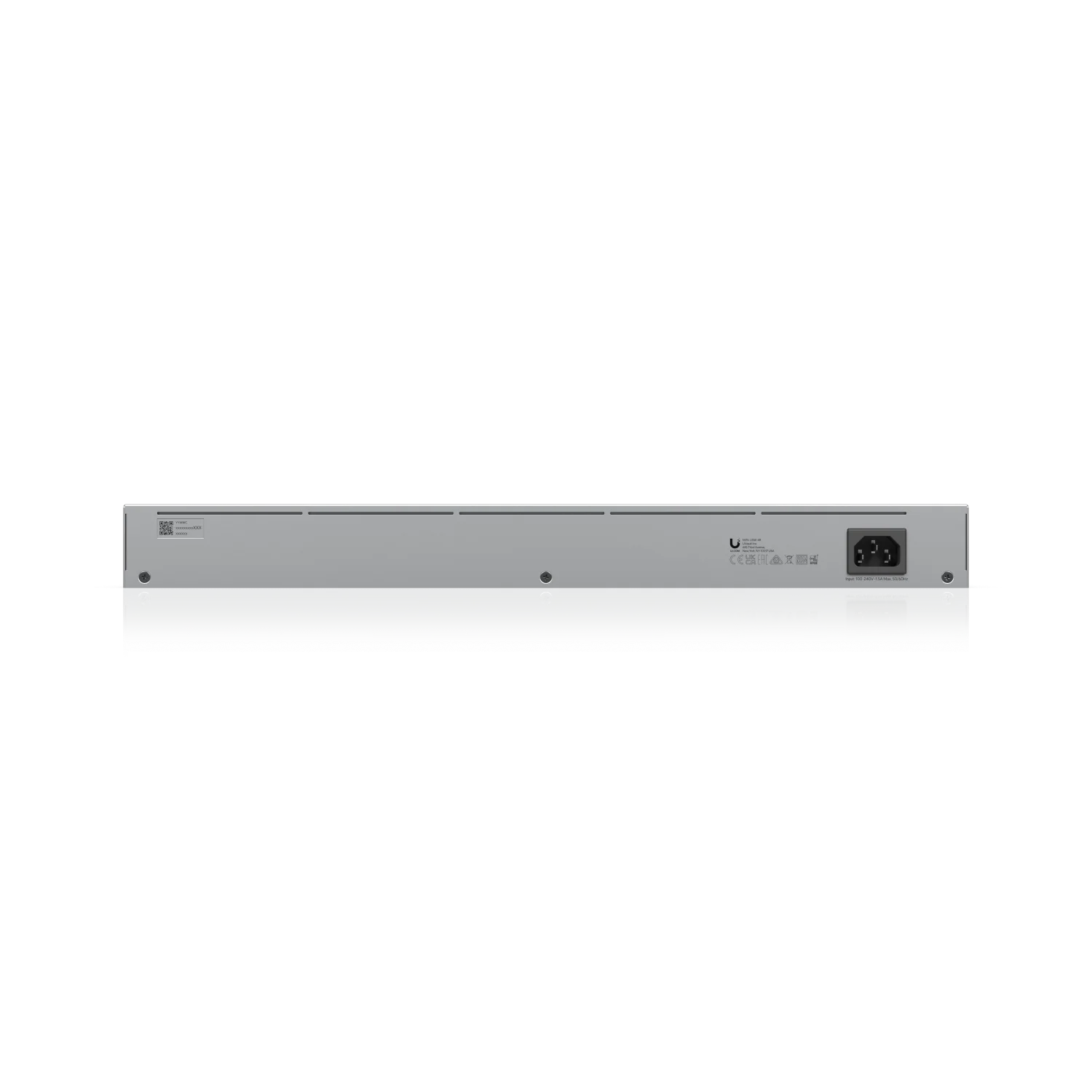

Power method	100—240V AC, 50/60 Hz, universal input
Power supply	AC/DC, internal, 60W
Supported voltage range	100—240V AC
Max. power consumption	40W
Forwarding rate	77.376 Mpps
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Operating temperature	-15 to 40° C (5 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	Speed/link/activity
SFP	Link/activity
