Let op:
De 3-Pack uitvoering van de UniFi Switch Flex Mini wordt door Ubiquiti
standaard zonder USB-C voedingen geleverd.
Alleen de losse (Single Unit) variant wordt inclusief USB-C adapter geleverd.
standaard zonder USB-C voedingen geleverd.
Alleen de losse (Single Unit) variant wordt inclusief USB-C adapter geleverd.
- 3-Pack: Geen USB-C adapters
- Losse unit: Adapter inbegrepen
Inhoud verpakking – 3-Pack

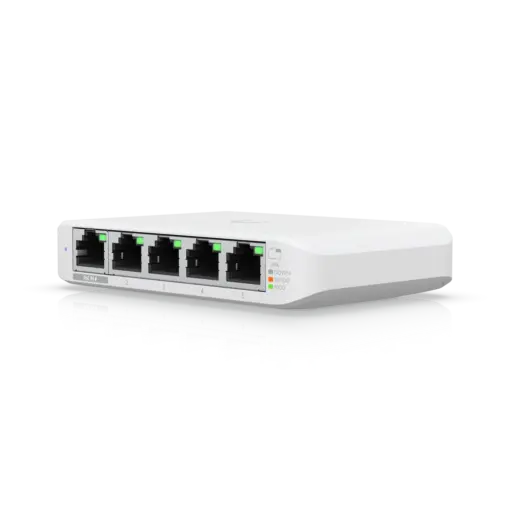

- 3 × UniFi Switch Flex Mini (USW-Flex-Mini)
- Documentatie
- Geen USB-C voedingsadapters meegeleverd
| Variant | USB-C voeding inbegrepen | Opmerking |
|---|---|---|
| Flex Mini (los) | ✅ Ja | Direct inzetbaar zonder PoE |
| Flex Mini (3-Pack) | ❌ Nee | Ontworpen voor PoE-omgevingen of eigen USB-C adapters |

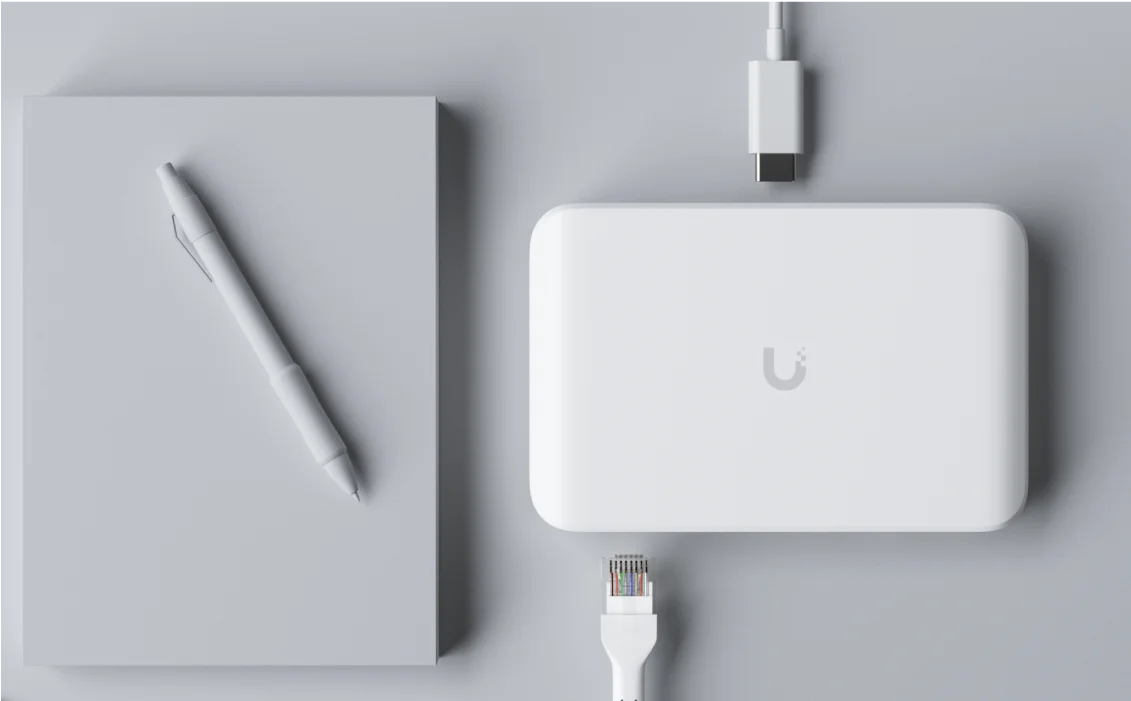

Tip: Gebruik een USB-C 5V/1A voeding per switch als er geen PoE beschikbaar is.
Summary
Datasheet
Installation Guide
- Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
PRODUCT SUMMARY
| Mechanical | |
|---|---|
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83″) |
| Weight | 150 g (5.29 oz) |
| Hardware | |

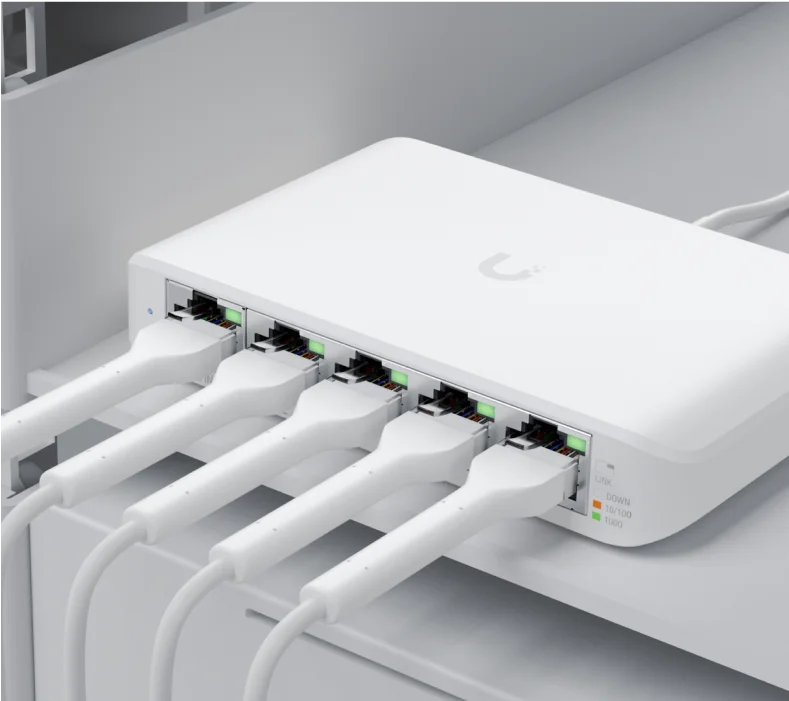

| Networking Interface | (5) 10/100/1000 Mbps RJ45 Ports |
| PoE In Interface | PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |

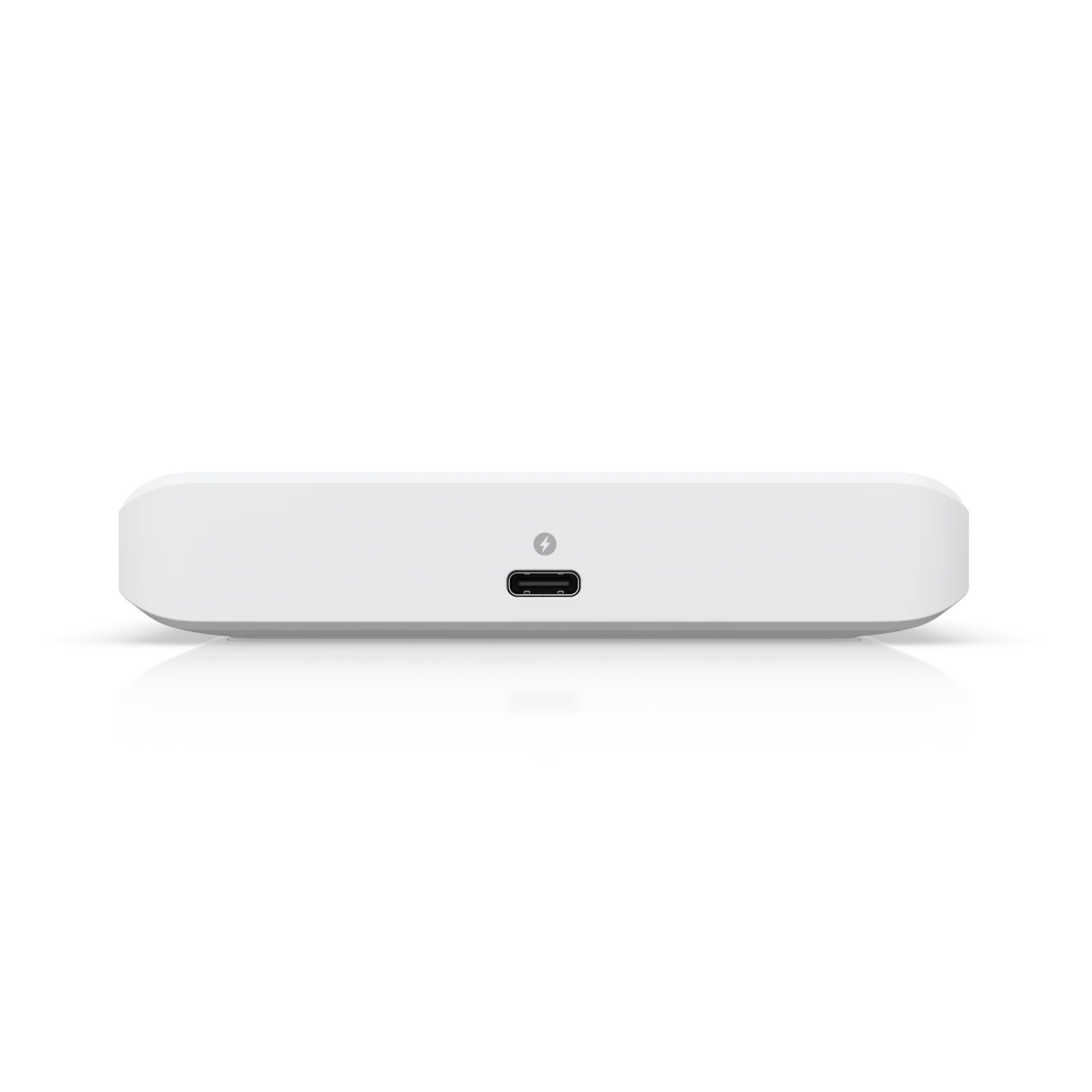

| Power Method | USB Type C, 5V PoE/PoE+ (44 – 57VDC, 0.05 – 0.04A) |
| Power Supply | 5V, 1A Power Adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Voltage Range USB Type C PoE/PoE+ |
4.7 – 5.3VDC 44 – 57VDC |
| Max. Power Consumption | 2.5W |

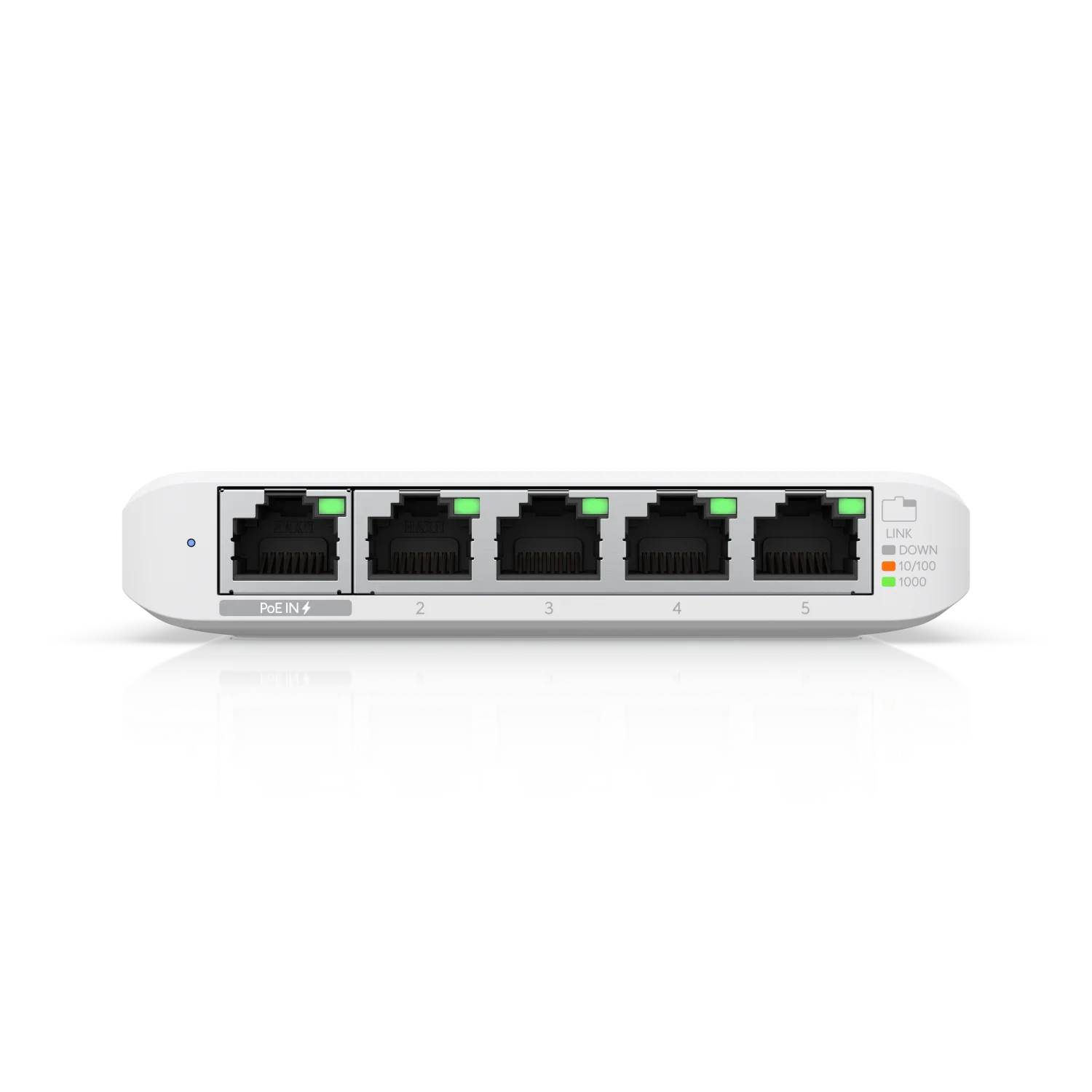

| LEDs System RJ45 Data Ports |
Status Speed/Link/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
