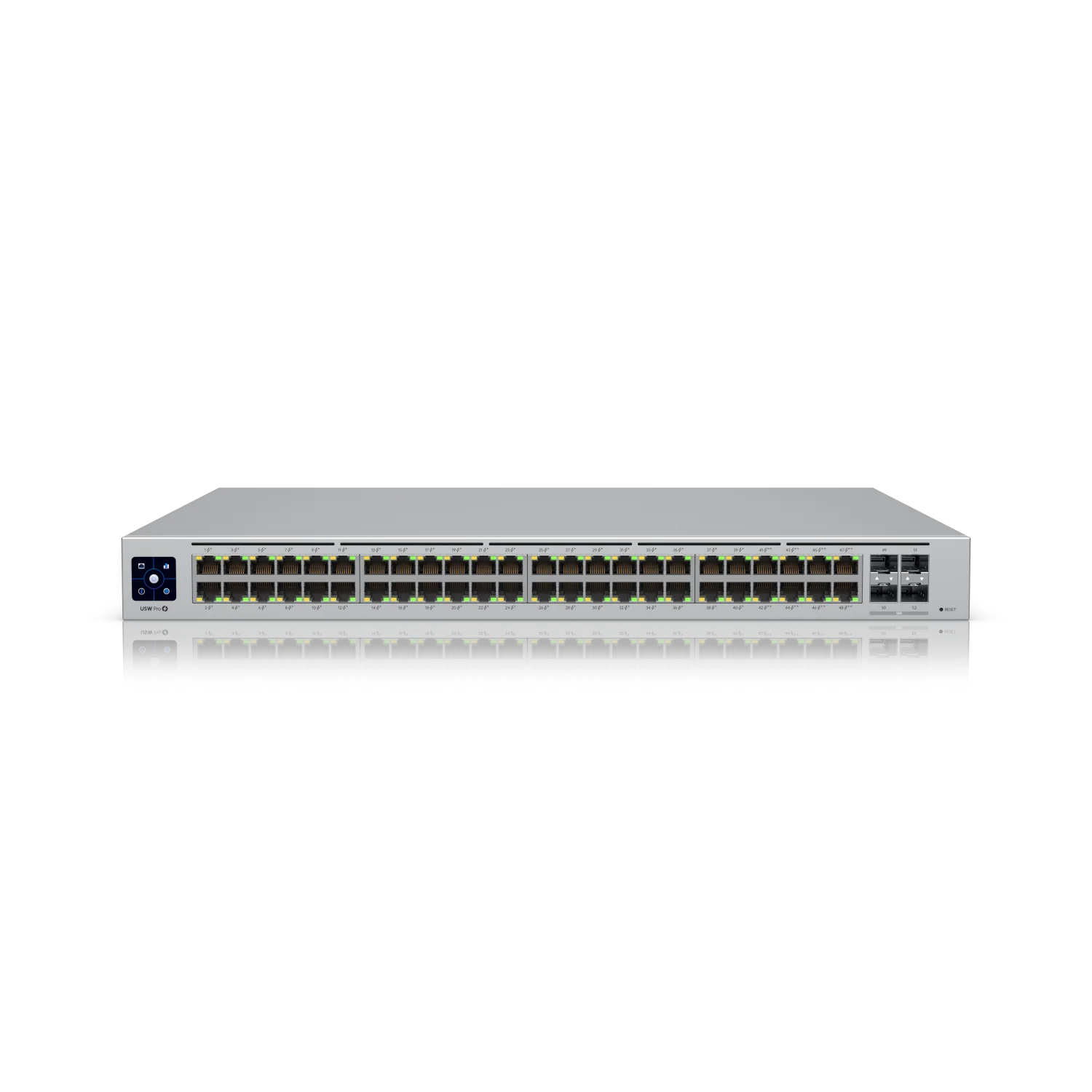

A 48-port, Layer 3 PoE switch.

Features:

• • • (40) GbE, PoE+ RJ45 ports
    • (8) GbE, PoE++ RJ45 ports
    • (4) 10G SFP+ ports
    • (1) USP RPS DC input for power redundancy
    • 600W total PoE availability

Managed with the UniFi Network application: Version 5.10.5 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical
Dimensions	442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
Weight	Without mounting brackets: 6.25 kg (13.78 lb) With mounting brackets: 6.34 kg (13.98 lb)
Enclosure material	SGCC steel
Hardware
Networking interface	(48) 10/100/1,000 RJ45 ports (4) 1/10G SFP+ Ethernet ports
Management interface	Ethernet In-Band
Total non‑blocking throughput	88 Gbps
Switching capacity	176 Gbps
Forwarding rate	130.944 Mpps
Power method	Universal input, 100—240V AC/50-60 Hz USP RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply	AC/DC, internal, 660W
Supported voltage range	100—240V AC
Max. power consumption	60W (Excluding PoE output)
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
PoE
Total available PoE	600W
PoE interfaces Ports 1-40 Ports 41-48	PoE/PoE+ (pins 1, 2+; 3, 6-) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE wattage per port by PSE PoE+ PoE++	32W 64W
Voltage range PoE mode	44—57V
Voltage range PoE+ mode	50—57V
