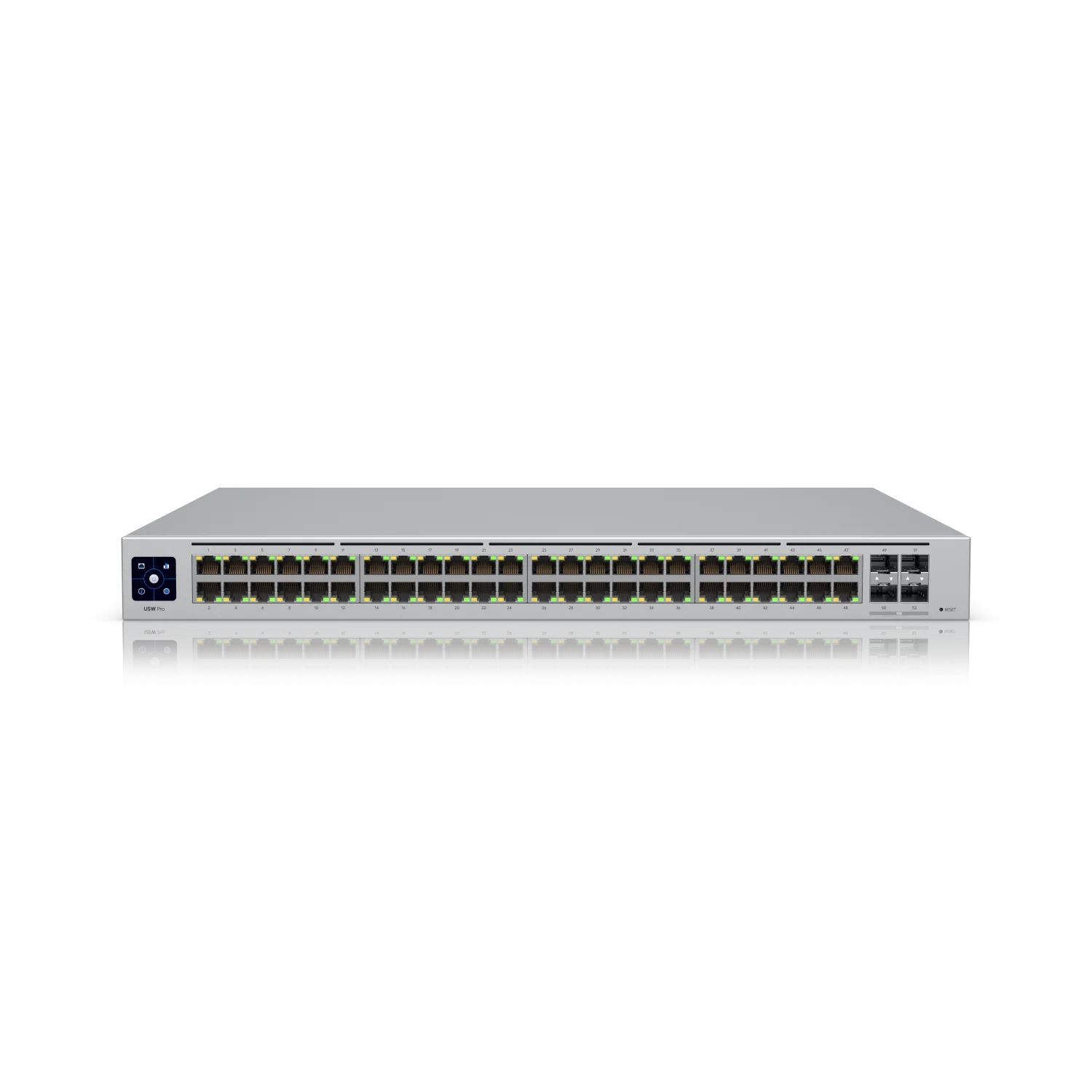

A 48-port, Layer 3 switch with a silent, fanless cooling system.

Features:

• • • (48) GbE RJ45 ports
    • (4) 10G SFP+ ports
    • (1) USP RPS DC input for power redundancy
    • 1.3″ LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 5.12.11 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical
Dimensions	442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7″)
Weight	Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(48) GbE RJ45 ports (4) 1/10G SFP+ ports
Total non-blocking throughput	88 Gbps
Switching capacity	176 Gbps
Forwarding rate	130.944 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 11.5V DC, 5.22A
Power supply	AC/DC, internal, 60W
Supported voltage range	100—240V AC
Max. power consumption	60W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3″ touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 45° C (23 to 113° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	Speed/link/activity
SFP+	Link/activity
RPS	Status
