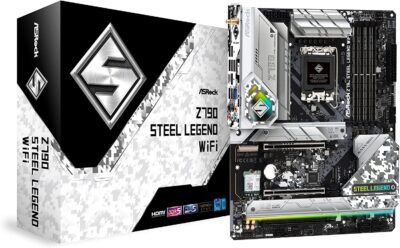

ASRock Z790 Steel Legend WiFi - ATX - LGA1700 Socket - Z790

Onze aanrader bij de CC-H51FB-01

€ 239,00€ 197,52 incl. btwexcl. btwOp nabestelling · levertijd op aanvraag

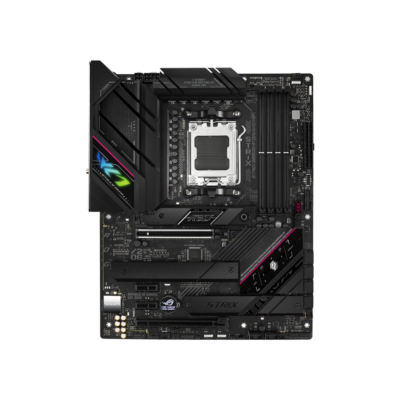

ASUS ROG STRIX B650E-F GAMING WIFI - ATX - Socket AM5 - AMD B650Op nabestelling · levertijd op aanvraag
€ 264,95€ 218,97 incl. btwexcl. btw
P14 Pro PST – 140 mm PWM 5-pack
€ 35,80€ 29,59 incl. btwexcl. btw
Arctic Cooling P12 Pro PST
€ 29,40€ 24,30 incl. btwexcl. btw
ARCTIC Liquid Freezer III Pro 360
€ 74,90€ 61,90 incl. btwexcl. btw
ARCTIC Liquid Freezer III Pro 360 A-RGB
€ 81,90€ 67,69 incl. btwexcl. btw
Arctic Cooling P12 Slim PWM PST
€ 15,40€ 12,73 incl. btwexcl. btw
ARCTIC Freezer 36 (Black)
€ 37,95€ 31,36 incl. btwexcl. btw

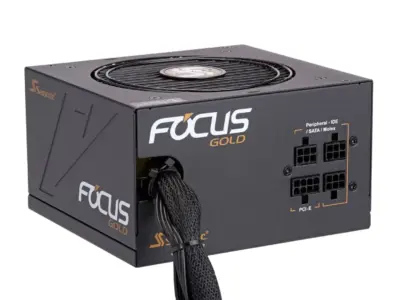

Seasonic Focus Gold - 650 Watt - 80 PLUS GoldOp nabestelling · levertijd op aanvraag
€ 103,95€ 85,91 incl. btwexcl. btw

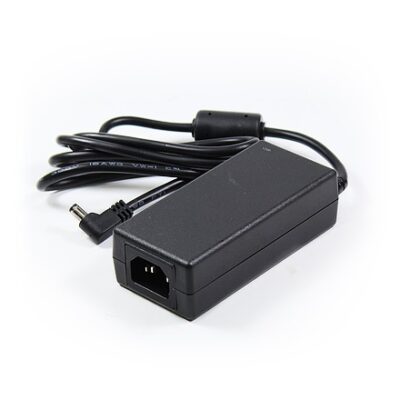

Synology Adapter 60W Level VI
€ 43,90€ 36,28 incl. btwexcl. btw

NZXT H5 Flow Compact Mid-tower Airflow Case – Black – Dark Tinted Tempered Glass – geen voeding – mat zwart – 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Headset Audio Jack

Details

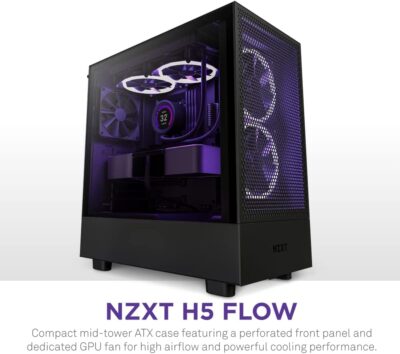

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

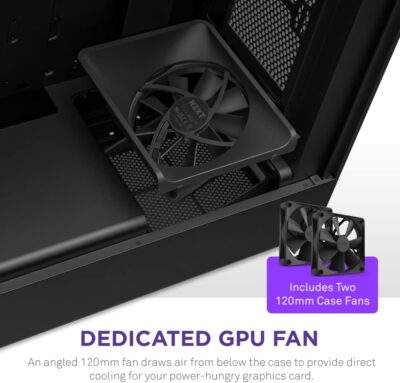

  • Dedicated fan on bottom inside panel is angled to cool GPU

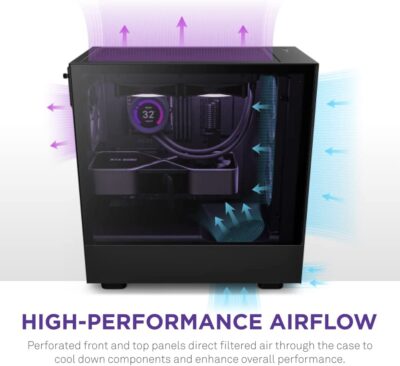

  • Perforated front panel provides optimal ventilation

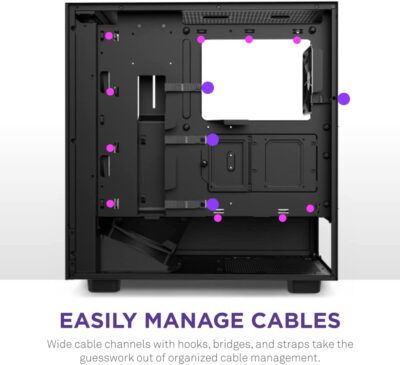

  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F120Q fans

Inside the Box

  • H5 Flow Case1

  • Front I/O split cables1

  • Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1

Fan Capacity

Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.

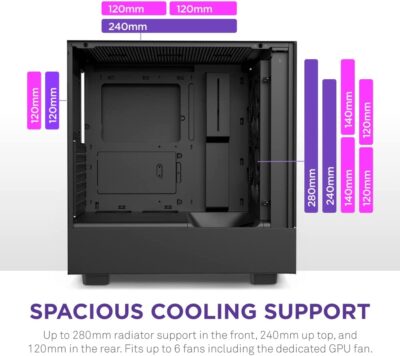

Radiator Capacity

The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
H5 Flow Radiator Capacity

KEY SPECS

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX
  • Enclosure Type:Mid-Tower
  • Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

  • Height:464mm (With Feet)
  • Width:227mm
  • Depth:446mm
  • Weight:7.01 kg

COMPATIBILITY & CLEARANCE

  • Max CPU Cooler Clearance:Up to 165mm

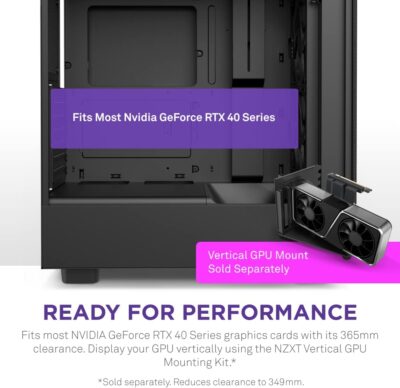

  • Max GPU Clearance:Up to 365mm
  • Front Radiator Clearance:45mm
  • Cable Management:Up to 23mm

FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:1
  • USB 3.2 Gen 2 Type-C:1
  • Headset Audio Jack:1

EXPANSION SLOTS

  • Standard:7
  • Vertical:0

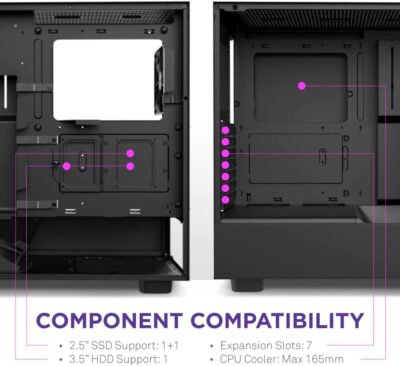

DRIVE BAYS

  • 2.5″:1+1
  • 3.5″:1

FAN SUPPORT

  • Front:2 x 120mm / 2 x 140mm
  • Top:2 x 120mm
  • Rear:1 x F Series Quiet 120mm (Case Version) included
  • Bottom:1 x F Series Quiet 120mm (Case Version) included

RADIATOR SUPPORT

  • Front:Up to 280mm
  • Top:Up to 240mm
  • Rear:Up to 120mm

FAN SPECS

  • Model:F120Q (Case Version)
  • Speed:1200 ± 240RPM
  • Airflow:62.18 CFM
  • Static:1.05 mm – H2O
  • Noise:25.1 dBA
  • Fan Connector:3-pin

GENERAL

  • Warranty:2 Years
  • Model Number:CC-H51FW-01 (White) / CC-H51FB-01 (Black)
  • UPC:810074842426 (White) / 810074842419 (Black)
  • EAN:5056547202341 (White) / 5056547202334 (Black)
Gewicht 7,01 kg
Afmetingen 44,6 × 22,7 × 46,4 cm
EAN

5056547202334
