ASRock DeskMini H470 – Socket 1200 – Barebone – Mini-STX – Zwart
€ 203,00
ASRock DeskMini 310 – Barebone – Mini-STX – 1 x Socket 1151v2 – DDR4 2400 MHz, 2 x SO-DIMM slots, Max. 32GB – HD Graphics – GigE – Zwart – 120W/19V Power Adapter
Beschikbaar via nabestelling
DeskMini H470 Series
- Supports Intel® 10th Gen LGA1200 processors, up to 65W
- Dual DDR4-2933MHz SO-DIMMs, up to 64GB
- Multi Video Outputs: 2 x DisplayPort, HDMI & D-Sub
- 1 x Alternate Mode USB Type-C
- 1 x USB 3.2 Gen1 Type-C port
- 1 x Ultra M.2 PCIe Gen3 x4 Slot
- 2 x 2.5″ HDD/SSD Tray with RAID 0/1
- 1 x M.2 (2230) Wi-Fi Slot
Power of 10!
DeskMini H470 adopts LGA1200 CPU socket, supports Intel® the latest 10 cores Core i9-10900 65 watts Processor, delivering ultimate computing performance within tiny PC.
Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’ premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Heatsink on MOSFET
ASRock DeskMini H470 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.
ASRock BFB Technology
ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance.
*BFB frequency performance results may vary between different CPUs, hardware configurations and motherboard VRM design. Frequency shown in this chart is for reference only.
Dual Channel DDR4-2933
ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance.
*Core™ (i9/i7) support DDR4 up to 2933;
*Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
*Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
USB Alternate Mode
ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable.
Rapid USB Connectivity
ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4 x USB 3.2 Gen1 ports on rear side.
Multi Storages
ASRock DeskMini H470 supports Multi Storages:
M2_1 M.2 (2280) –PCIe Gen3 x4
2 x 2.5” SATA 6Gb SSD/HDD Tray
M2_1 M.2 (2280) –PCIe Gen3 x4
2 x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini H470 supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Triple 4K Displays
DeskMini H470 supports 3 displays output simultaneously!
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
*Rear USB Type-C supports 4K DisplayPort signal
VESA Mount Kit (Optional)
Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
The availability of VESA Mount Kit may vary from model or region to another.
DeskMini H470
-
CPU– Supports Intel® 10th Gen LGA1200 Processors (Max. TDP 65W)
-
Cooler– Supports Intel® CPU Cooler (Max. Height ≦ 46mm)
-
Memory– Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)
-
Chipset– Intel® H470
-
Graphics– HDMI(4K@30Hz)
– DisplayPort1.4
– DisplayPort 1.4 (with USB Type-C Alt Mode)
– D-Sub*Supports up to 3 displays simultaneously -
Audio– 1 x Head Phone with MIC Jack, 1 x MIC-In (Realtek ALC233)
-

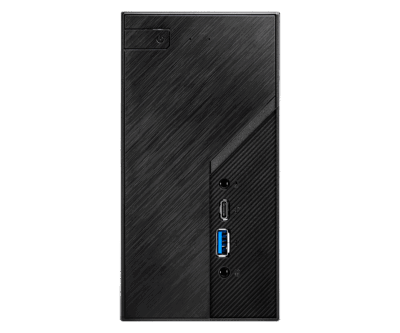

Front USB– 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen2 Type-A
-

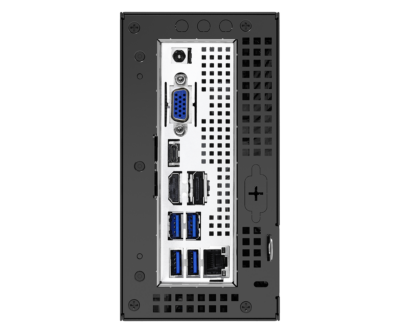

Rear USB– 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A*Rear side supports USB Type-C Alt Mode
-
Storage– 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
– 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**Supports Intel® Optane Technology
Supports NVMe SSD as boot disks -
LAN– Gigabit LAN (Intel® I219V)
-
WLAN– 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
-
Connectors– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 2 x 4-Pin fan connectors (CPU, SYS)
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header (4-Pin)
– 1 x Chassis Intrusion Header (2-Pin)
– 1 x Audio Header (4-Pin) -
Accessory– 2 x SATA Data with Power Cable
– 1 x 120W/19V adapter
– 1 x Screws Pack -
Dimension– 155 x 155 x 80 mm (1.92L)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
| EAN | 4710483931963 |
|---|---|
| Multi-Core Technologie | |
| Processor | |
| RAM | |
| Geheugentype | |
| Geheugengrootte | |
| Harde schijf | |
| Graphics controller |
