Gigabyte BRIX GB-BRR3-4300 – AMD RYZEN R3-4300U 2 GHz – Barebone

EAN: 4719331600709SKU: GB-BRR3-4300Categorie: Merk:

€ 289,00€ 238,84 incl. btwexcl. btw

Nooit meer leverbaar

Gigabyte BRIX GB-BRR3-4300 – Barebone – Ultra Compact PC Kit – 1 x AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core – AMD Radeon™ Graphics – 2.5GigE – Intel WiFi6 AX200 / BT 5.2

GB-BRR3-4300 (rev. 1.0) - Mini-PC Barebone (BRIX)
  • High Performance Ultra Compact PC (34.7 x 119.5 x 119.5 mm)
  • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
  • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
  • Intel WIFI6 +BT5.2
  • Realtek 2.5G LAN RTL8125
  • QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
  • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
  • Realtek ALC255 Codec
  • Headphone Jack
  • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
  • AC-DC adapter : 100-240V input, 19V/135W
  • OS Support : Microsoft Windows 10 64Bit
  • 1x Kensington Lock slot
  • System Environment Operating Temperature: 0°C to +35°C
  • System Storage Temperature: -20°C to +60°C

Small Outside, Powerful Inside

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
AMD Ryzen 4000U Overview

AMD Ryzen 4000U series processors are based on the 7nm technology offering an incredible power efficiency leap. These new processors sport the Zen 2 core technology with 15% higher instructions per clock and 20% lower SOC power.

BEST CPU CORE

15% Higher Instructions Per Clock
Higher Clock Frequency

7nm TECHNOLOGY

2x Transistor Density Leadership Technology

POWER EFFICIENT

20% Lower SOC Power
2x Performance Per Watt

Connectivity

GIGABYTE BRIX AMD Ryzen 4000U series offer a plethora of available connections. All models provide multiple ports from Type-C connection all the way to AC Wi-Fi connectivity to 4x monitor outputs able to cover the needs of a business all the time.



  • Dimension
    3‎4.7 mm x 119.5 mm x 119.5 mm (1.37″ x 4.7″ x 4.7″)
  • Motherboard Size
    105 x 110 mm
  • CPU
    AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core, 6MB L3 Cache
    AMD Radeon GPU 1400Mhz, 15W
  • Memory
    2 x SO-DIMM DDR4 slots
    3200MHz
    Max. 64GB
  • LAN
    2.5G LAN (Realtek 8125)
  • Wifi Card
    Intel WiFi6 AX200 / BT 5.2
  • Audio
    Realtek ALC255
  • Video
    AMD Radeon™ Graphics
  • HDMI Resolution (Max.)
    HDMI2.0a ws HDCP 2.2
    3840×2160@60Hz
  • Storage
    1 x M.2 slot (2280_storage)
    PCIe Gen3 X4 /SATA
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

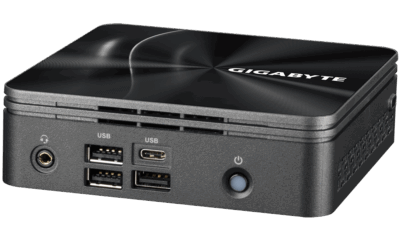

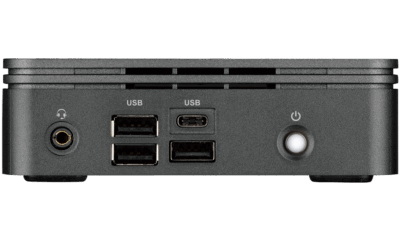

  • Front I/O
    1 x Power Button
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    3 x USB type A 3.2 (Gen1)
    1 x head phone jack with MIC

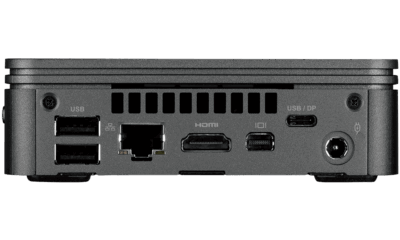

  • Rear I/O
    1 x HDMI(2.0a)
    1 x mDP
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    2 x USB 3.2 type A (Gen 1)
    1 x RJ45
    1 x DC-In

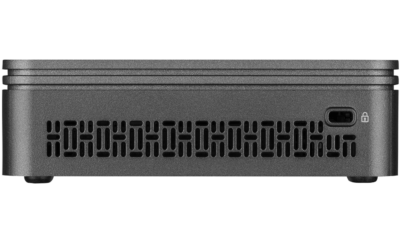

  • Side I/O
    1 x Kensington lock slot
  • Power Supply
    Input: AC 100-240V
    Output: DC 19V/4.74A, 90W
  • Support OS
    Win10 64bit
  • Environment
    Operating Temperature 0°C to 35°C
    Storage Temperature -20°C to +60°C
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
EAN

4719331600709
Multi-Core Technologie

Processor

RAM

Geheugentype

Geheugengrootte

Harde schijf

Graphics controller
